9421LN1 - Square D - Kit

Overview

Product Specifications - 9421LN1 - Square D Kit

---

Standards

---

Product Description - 9421LN1 - Square D Kit

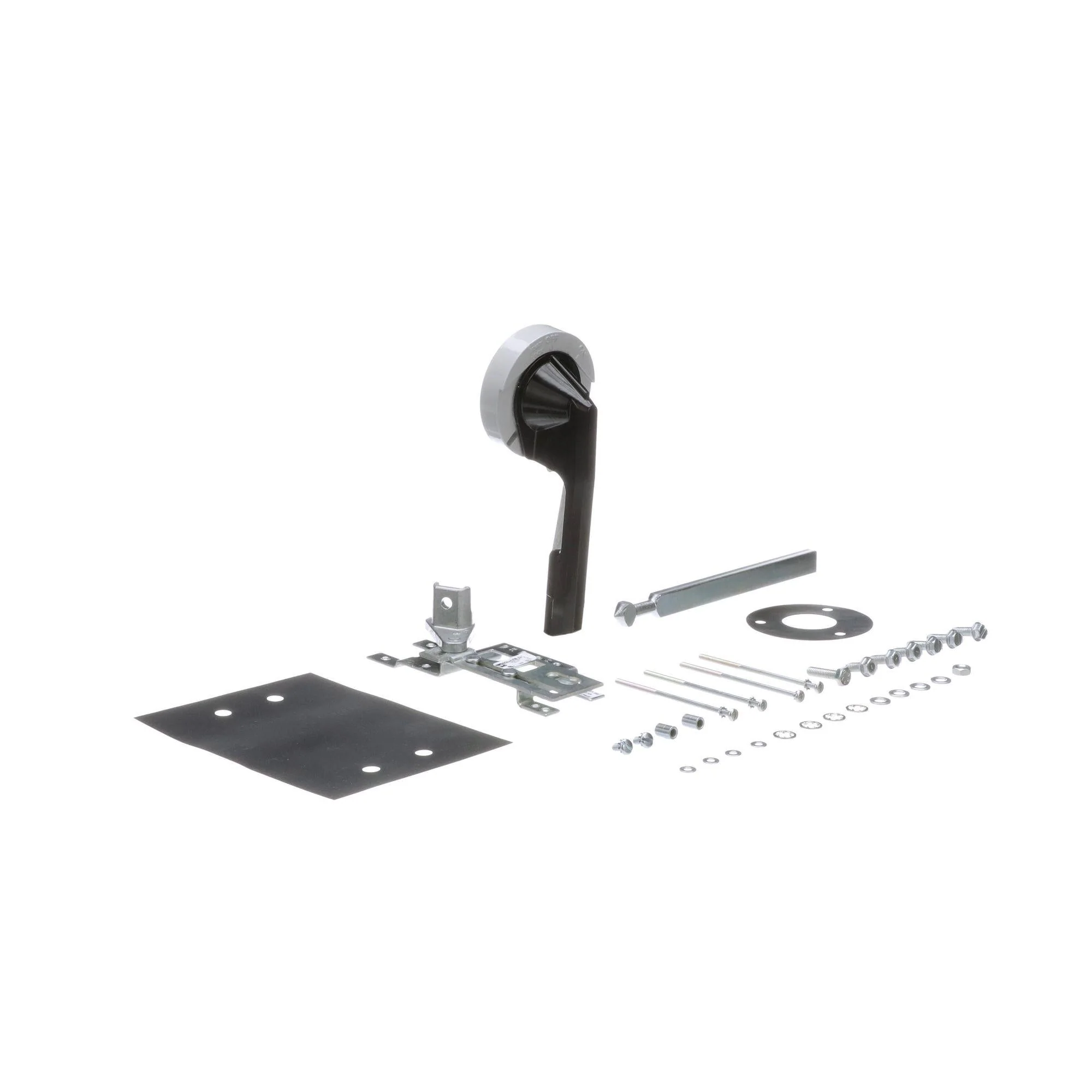

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism kit will work with FAL, FCL and FHL circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 100A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 5.5 to 10.44 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.

---
