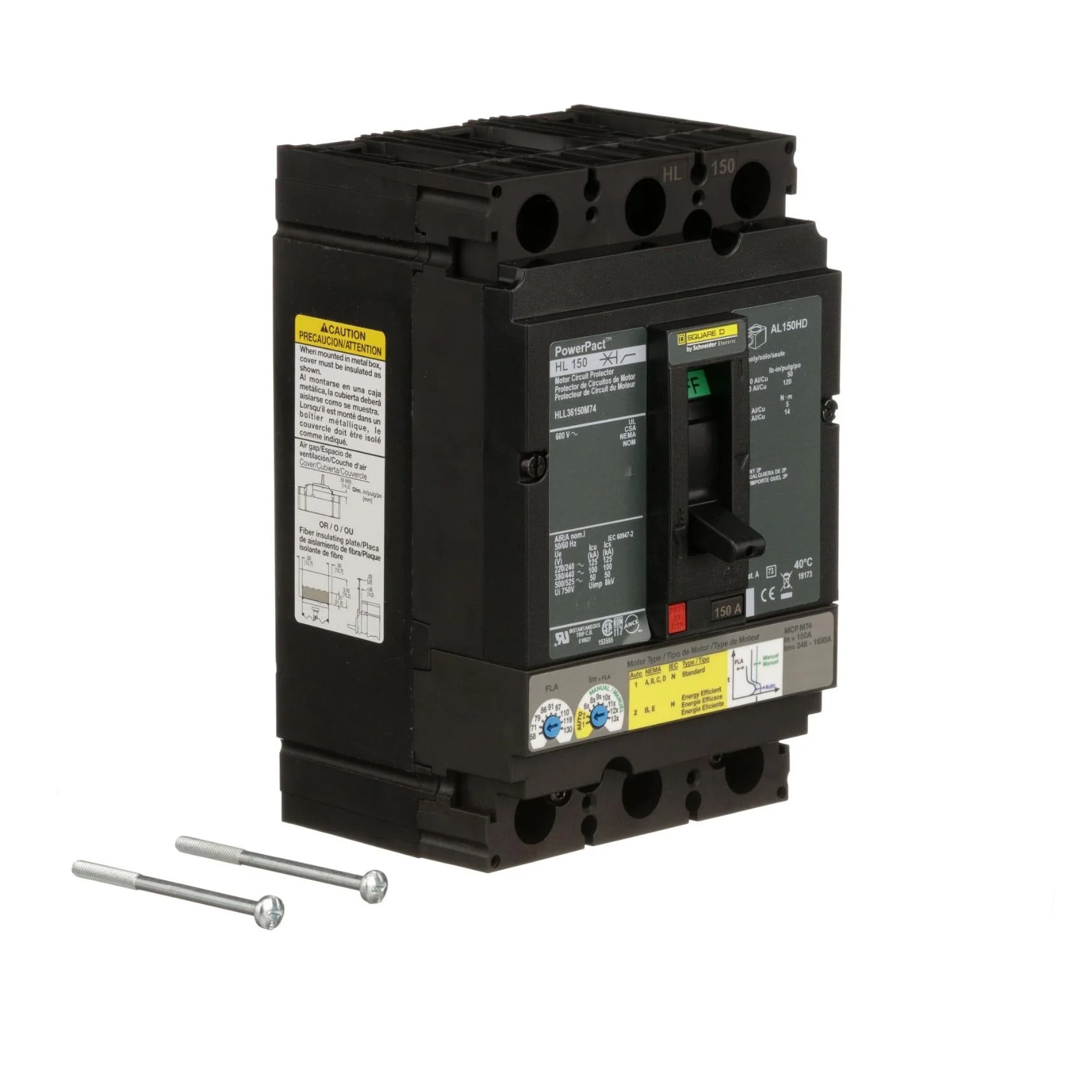

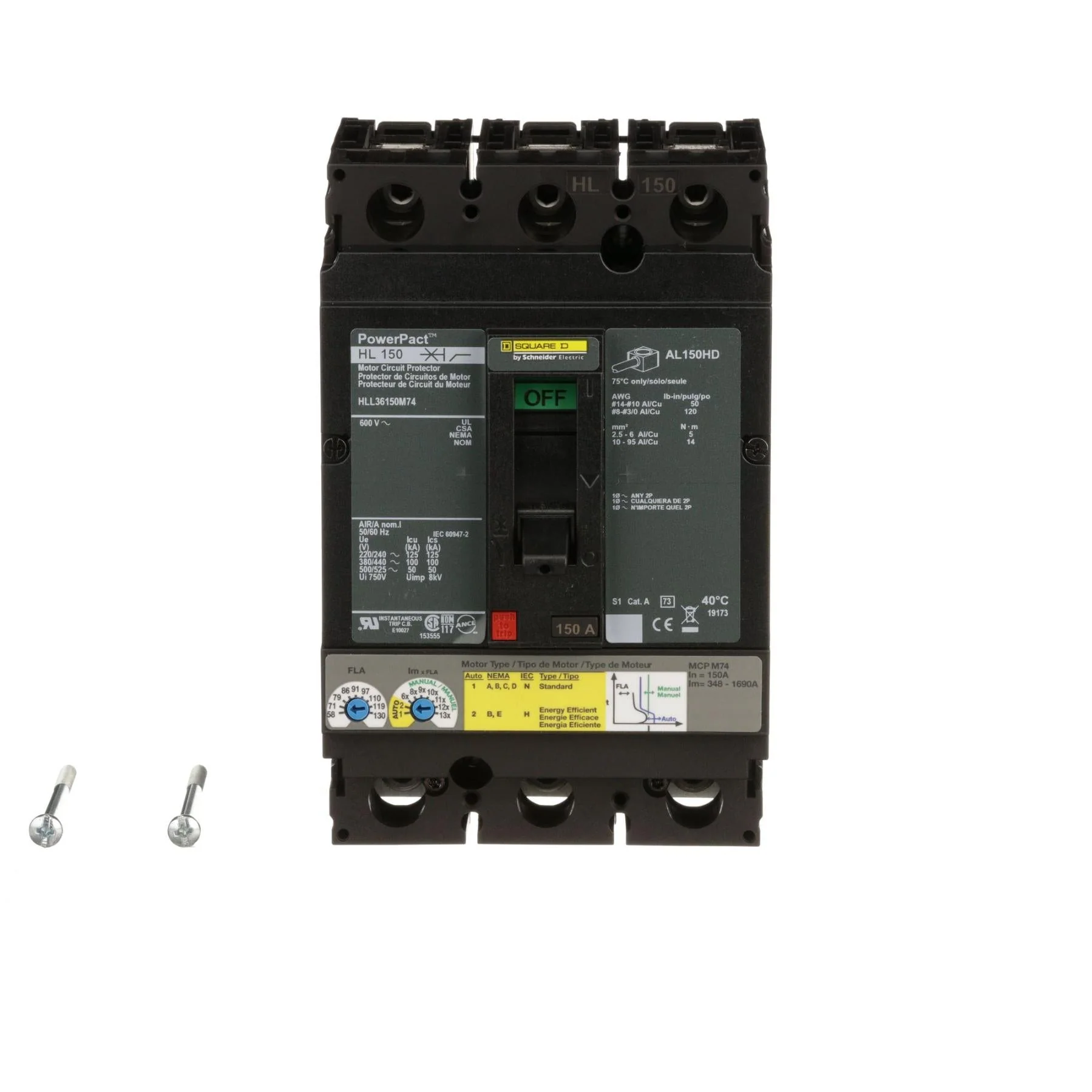

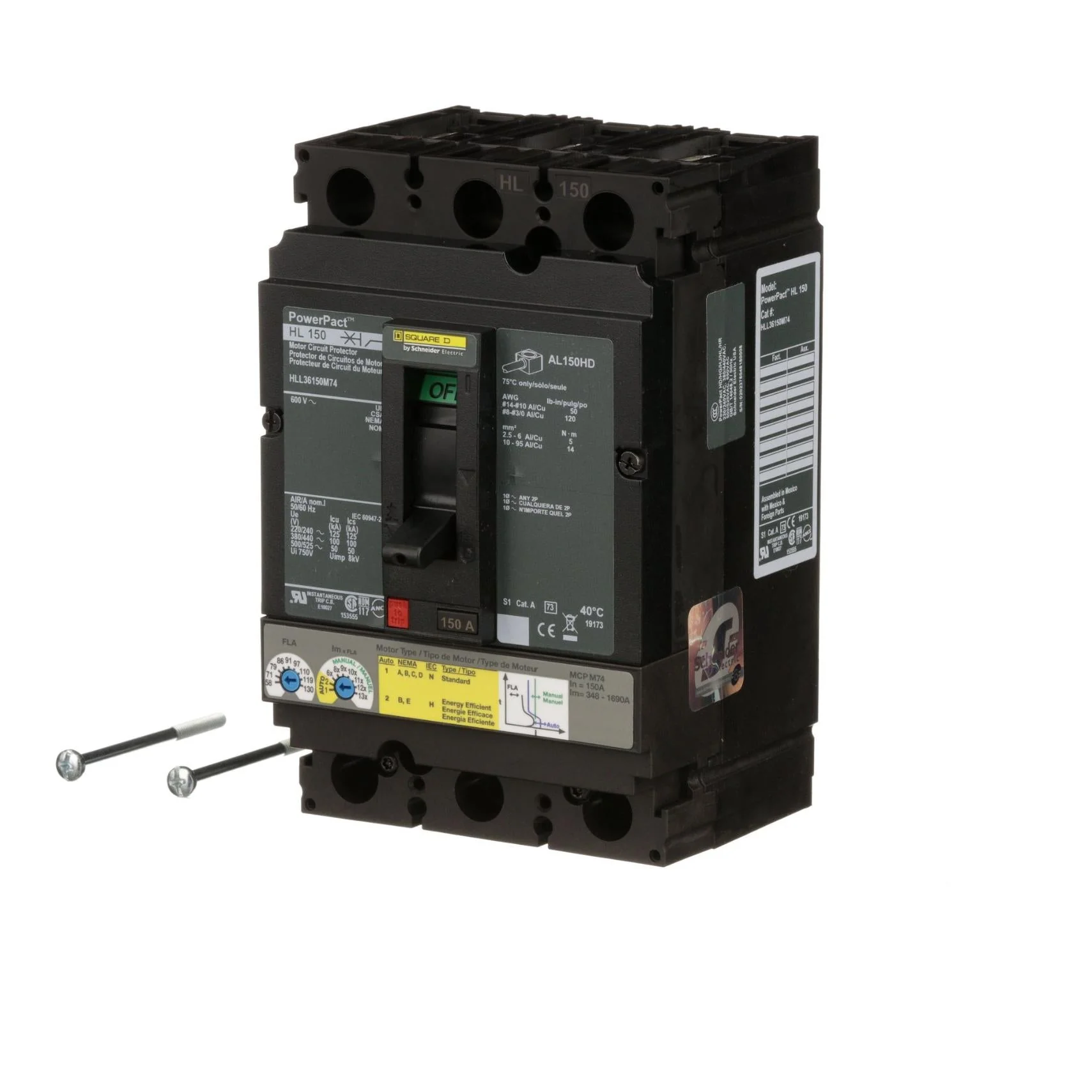

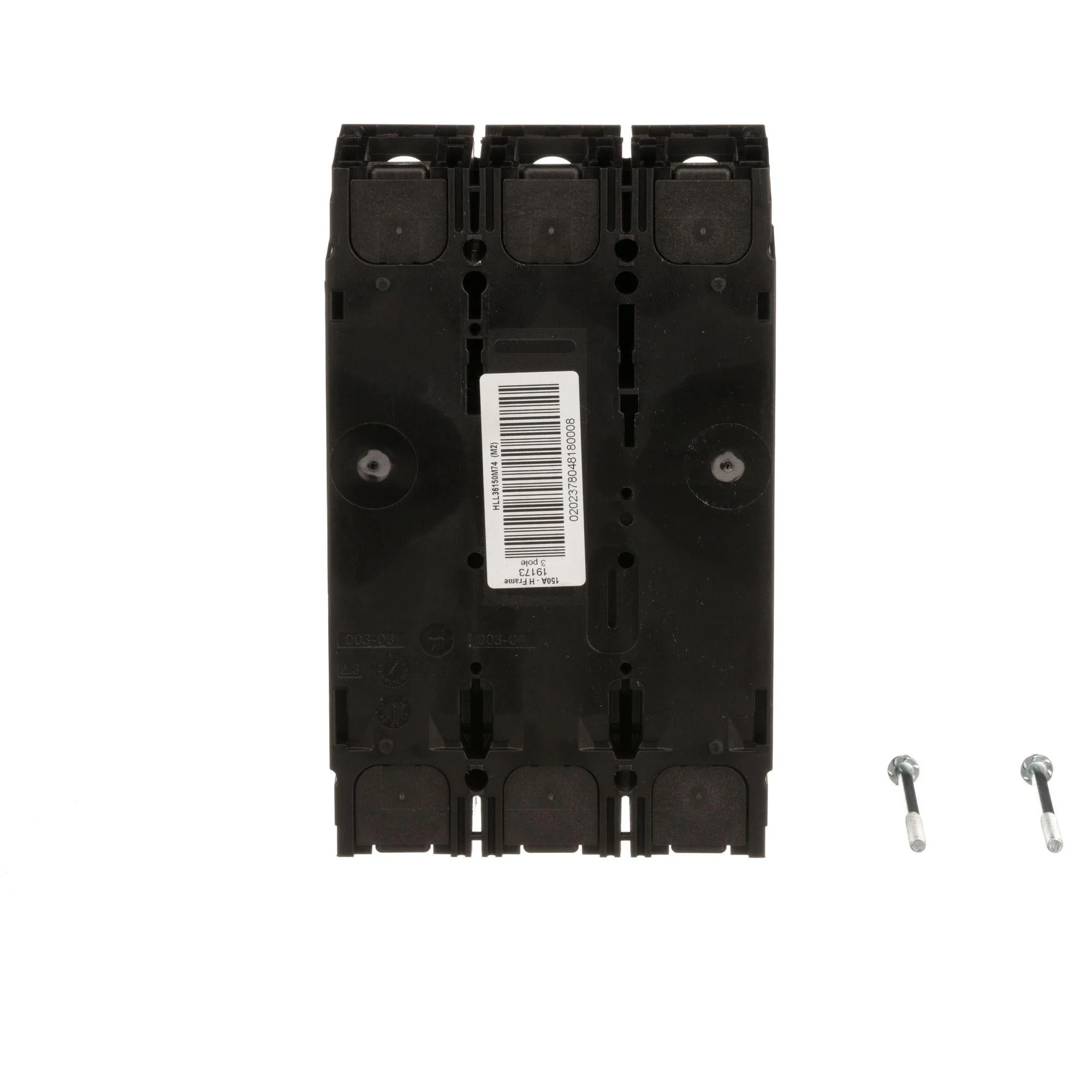

Product Specifications - HLL36150M74 - Square D Molded Case Circuit Breakers
-
Part Number:
HLL36150M74 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp:
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
H Frame -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
6.42 x 4.09 x 3.39 -
Weight:
4.85 lbs
Standards
Product Description - HLL36150M74 - Square D Molded Case Circuit Breakers
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has lugs on both the line and load side. This PowerPacT H, 150A, 3 pole, motor protector has a breaking capacity of 50kA at 600VAC. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
