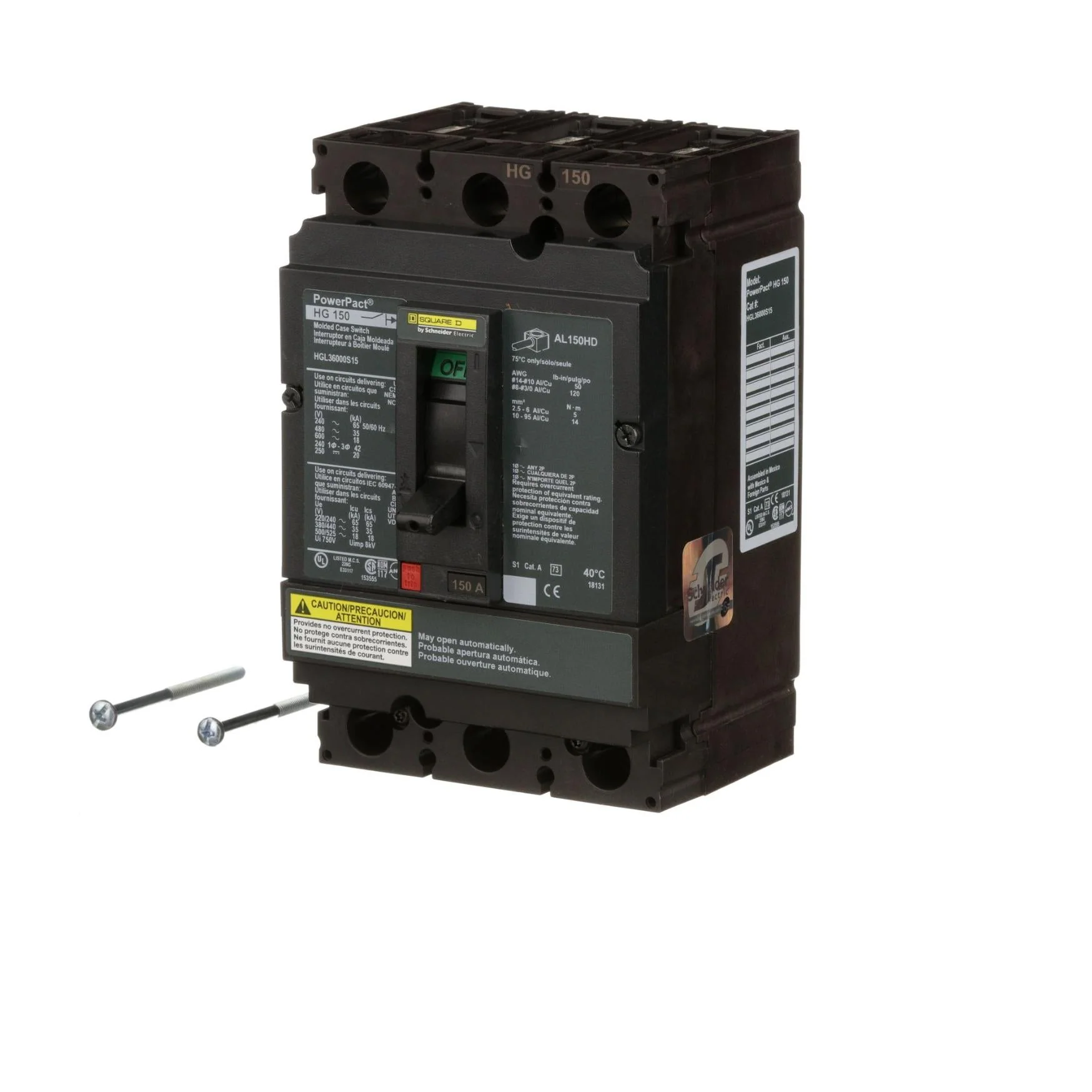

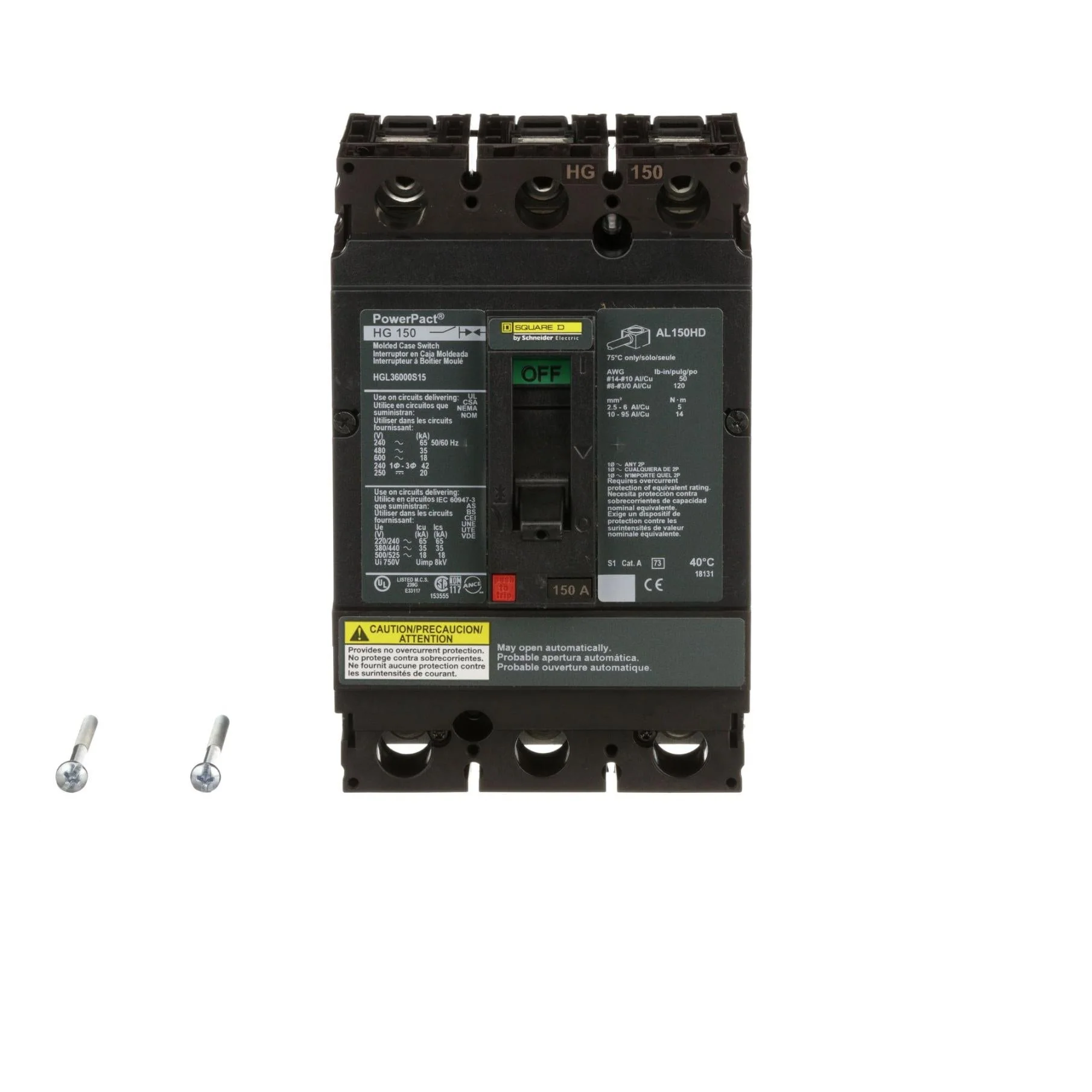

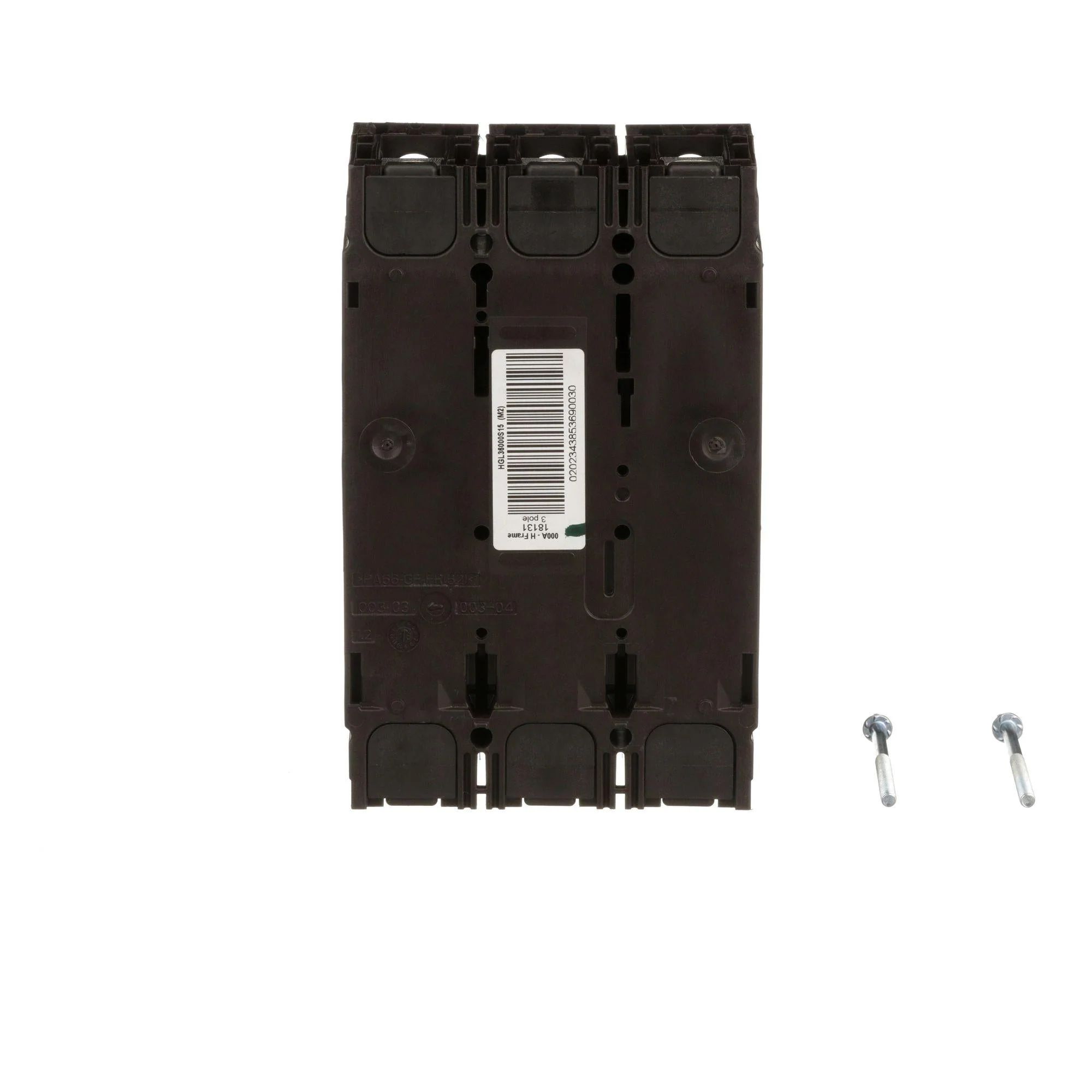

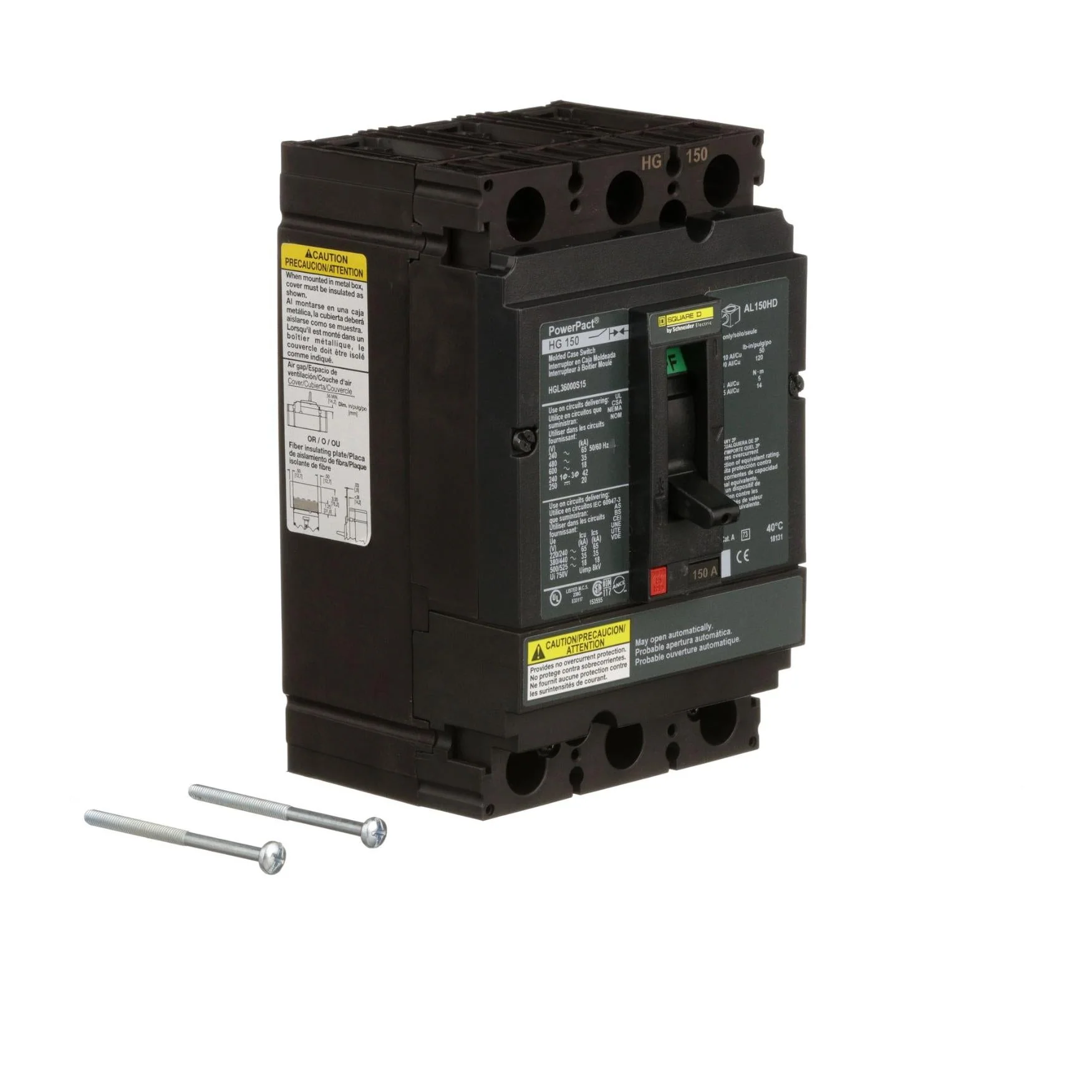

Product Specifications - HGL36000S15 - Square D Molded Case Circuit Breakers
-
Part Number:
HGL36000S15 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp:
150 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
H Frame -
Functions:
NA - No Overcurrent Protection -
Protection:
Non-Automatic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
6.4 x 2.12 x 4.36 -
Weight:
4.85 lbs
Standards
Product Description - HGL36000S15 - Square D Molded Case Circuit Breakers
PowerPacT H-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the H-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT H-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch is unit mount and has lugs on both line and load sides. This PowerPacT H, 150A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT H automatic switches comply to UL and CSA standards.
