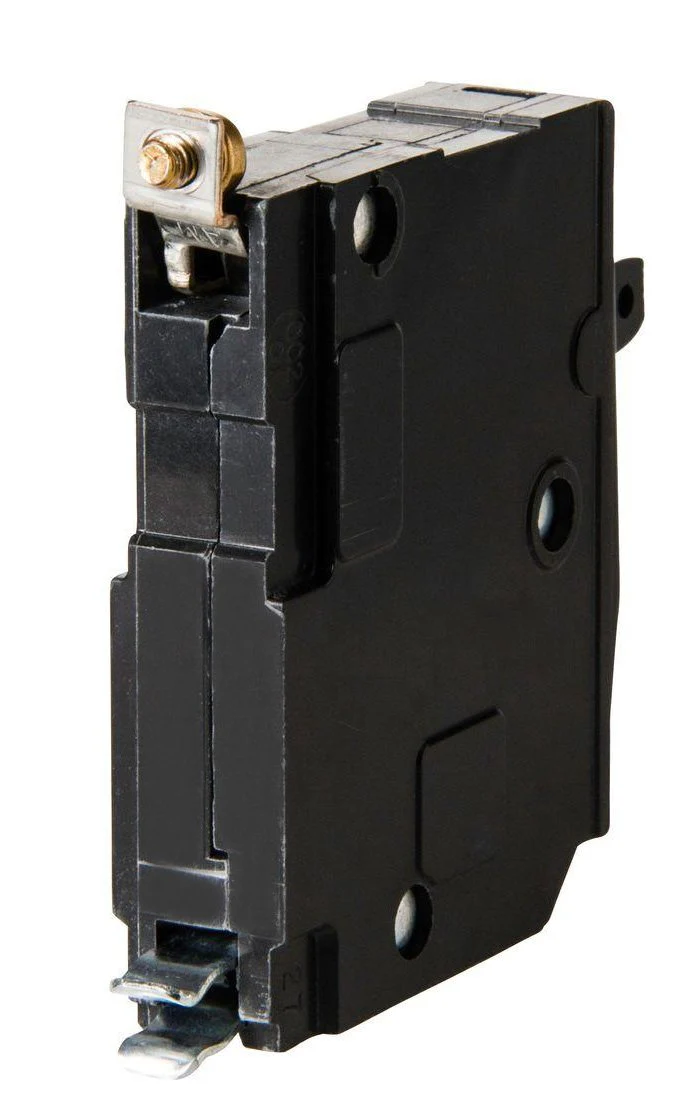

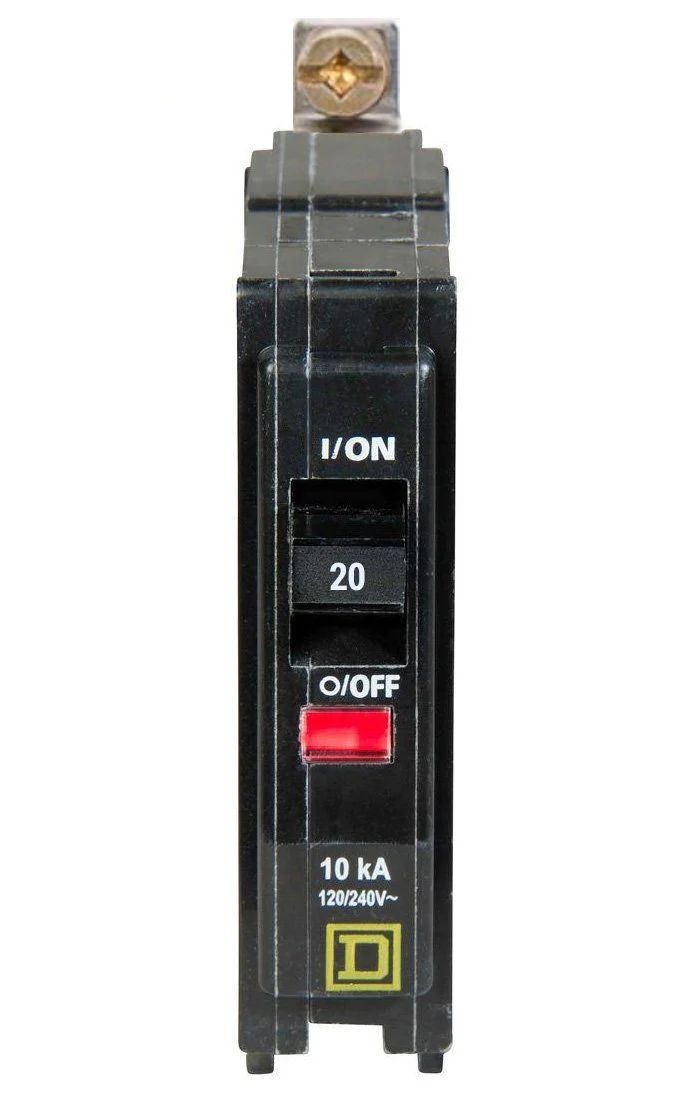

QOB120 - Square D - 20 Amp Circuit Breaker

QOB120 - Square D Bolt-On Circuit Breaker

Square D molded case circuit breaker Its Compact and Easy to Install One Pole and One Phase with Long Time and Instantaneous Functions Circuit Breaker. Circuit Breaker Standard Interrupting Voltage Rating of 120/240 VAC AT 50/60 HZ (UL/CSA) 48 VDC and 20 ampere With Built in Bolt On Connection Thermal Magnetic Protection Molded Case Circuit Breakers.

Specifications:

• Manufacturer: Schneider Electric
• Type QOB Series
• Cat. No.: QOB120

• Dimensions (H x W x L): 3" x 0.75" x 3"
• 1 Pole

• 20 Amp
• 120 Volt

• 120 V AC, 120/240 V AC, 48 V DC
• Connection: Bolt-on
• Phase : 1

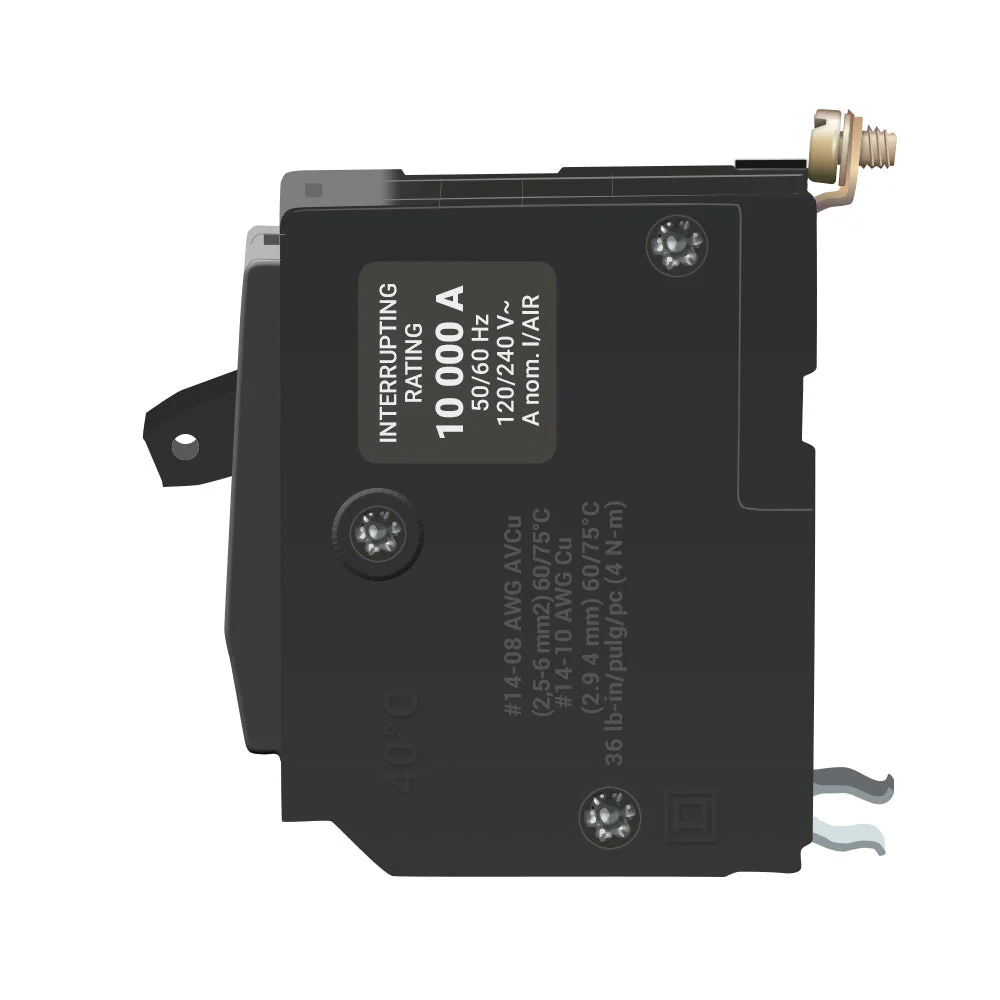

• Interrupting Rating 10000 Ampere
• Ambient Rating: 104 Degree F (40 Degree C)
• Ratings: HACR and Switching Duty rated
• Number of Panel Spaces: 1
• Authentic Square D Product

• CSA Approved and UL Listed

Alt model: q0b120
