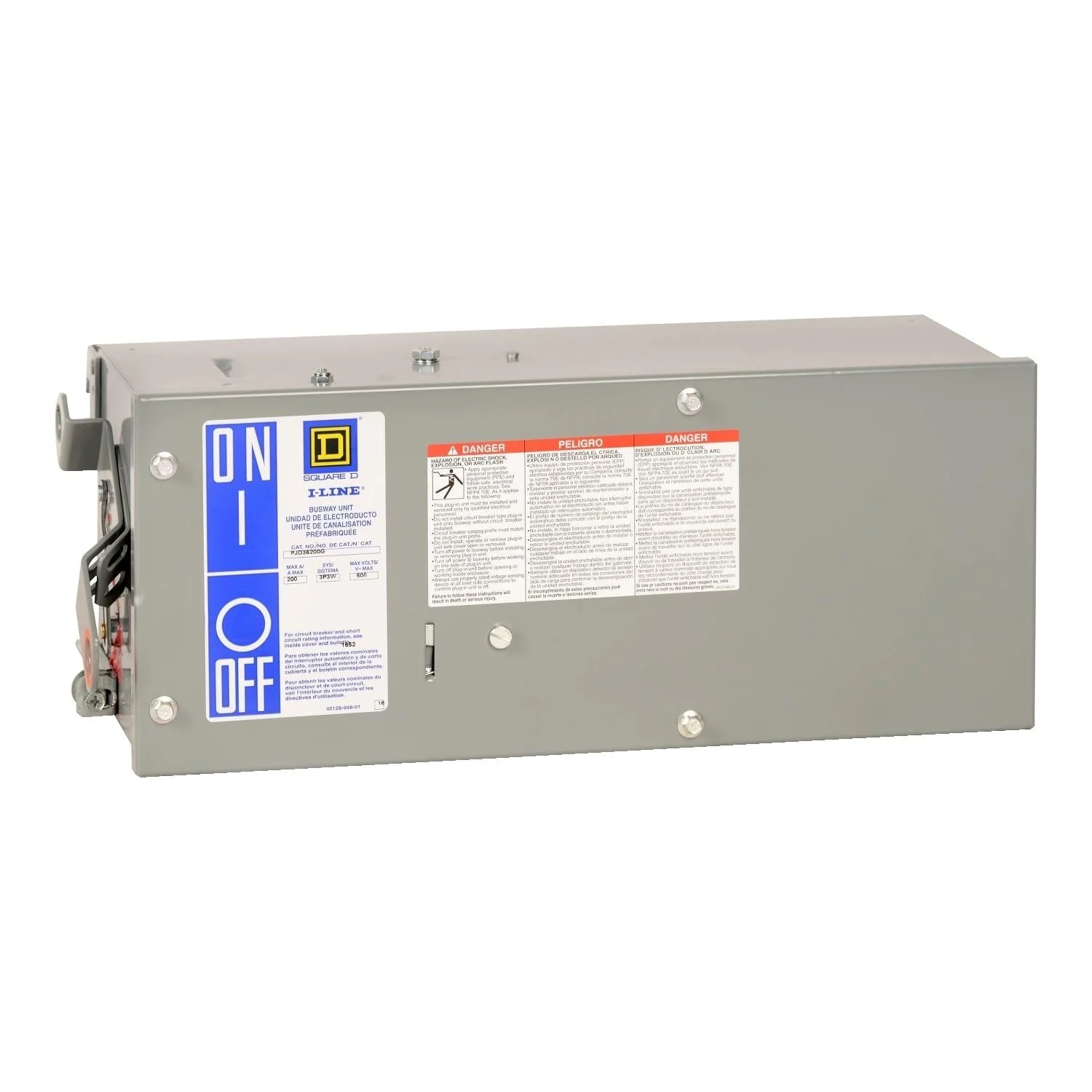

PJD36200GN - Square D - Breaker Type

Overview

Product Specifications - PJD36200GN - Square D Breaker Type

Standards

Product Description - PJD36200GN - Square D Breaker Type

I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This I-Line plug in unit is for 200A, 600VAC, 3 phase, 4 wire J frame circuit breakers. This circuit breaker has a D interrupting trip rating. This unit includes a ground and neutral. I-Line busway is UL listed and CSA certified.
