Overview
Product Specifications - D224NRB - Square D Disconnect
-
Part Number:
D224NRB -
Manufacturer:
-
Family:
Series F -
Pole:
2 -
Amp:
200 -
Volt:
240 -
Phase:
1
-
Category:
-
Type:
D -
AIC Ratings:
100kA@240V
Dimensions
-
Dimensions (HxWxD):
8.25 x 19 x 29 -
Weight:
53.51 lbs
Standards

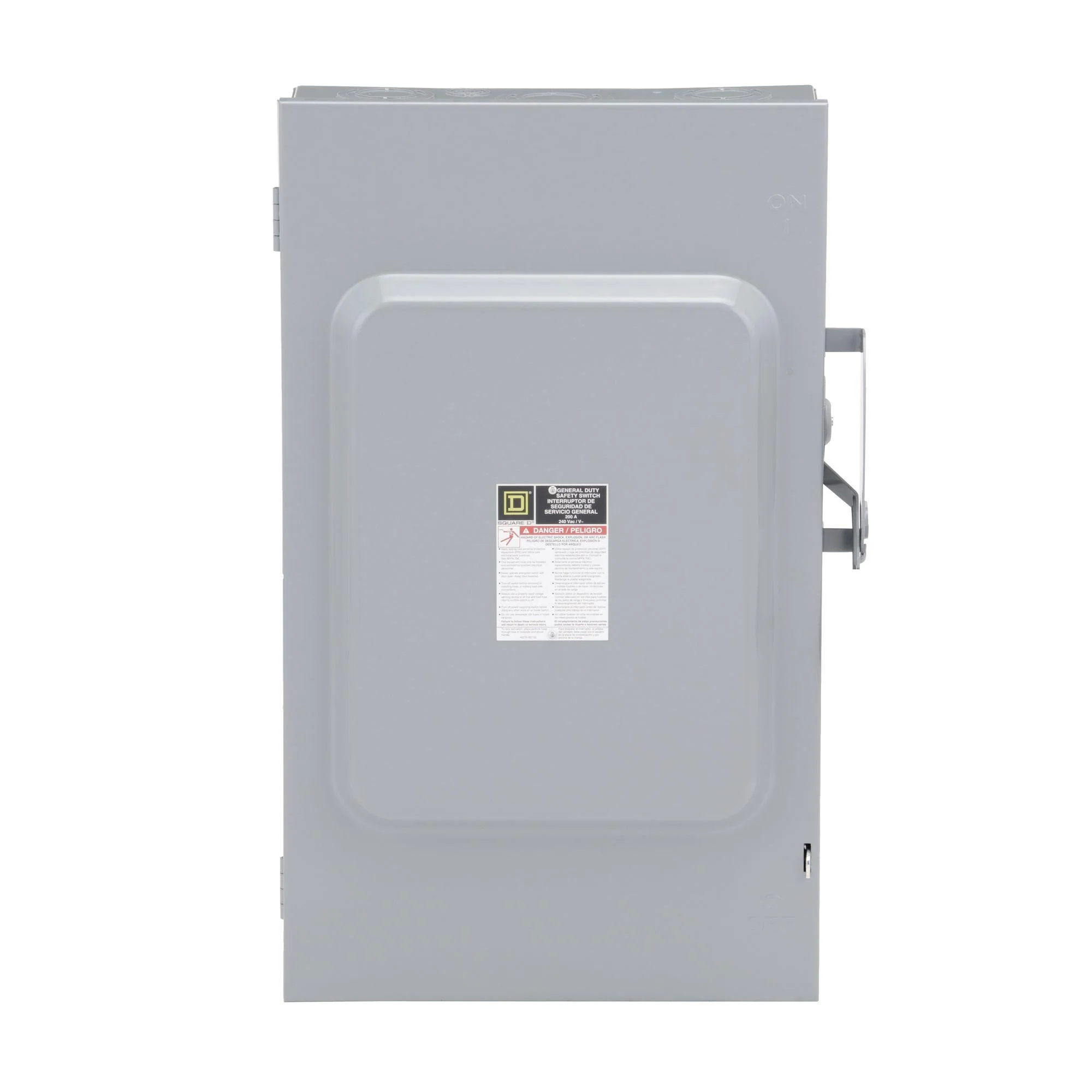

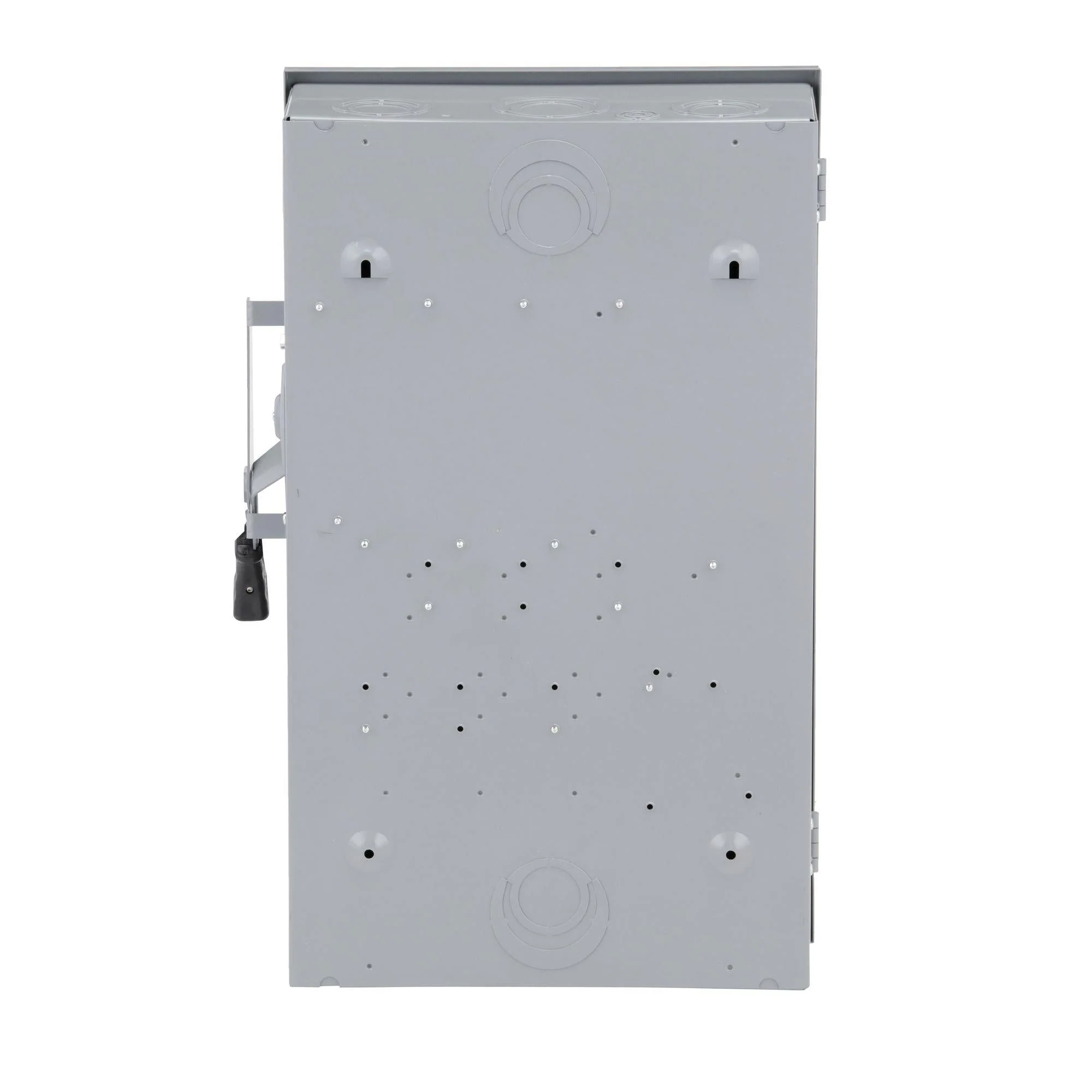

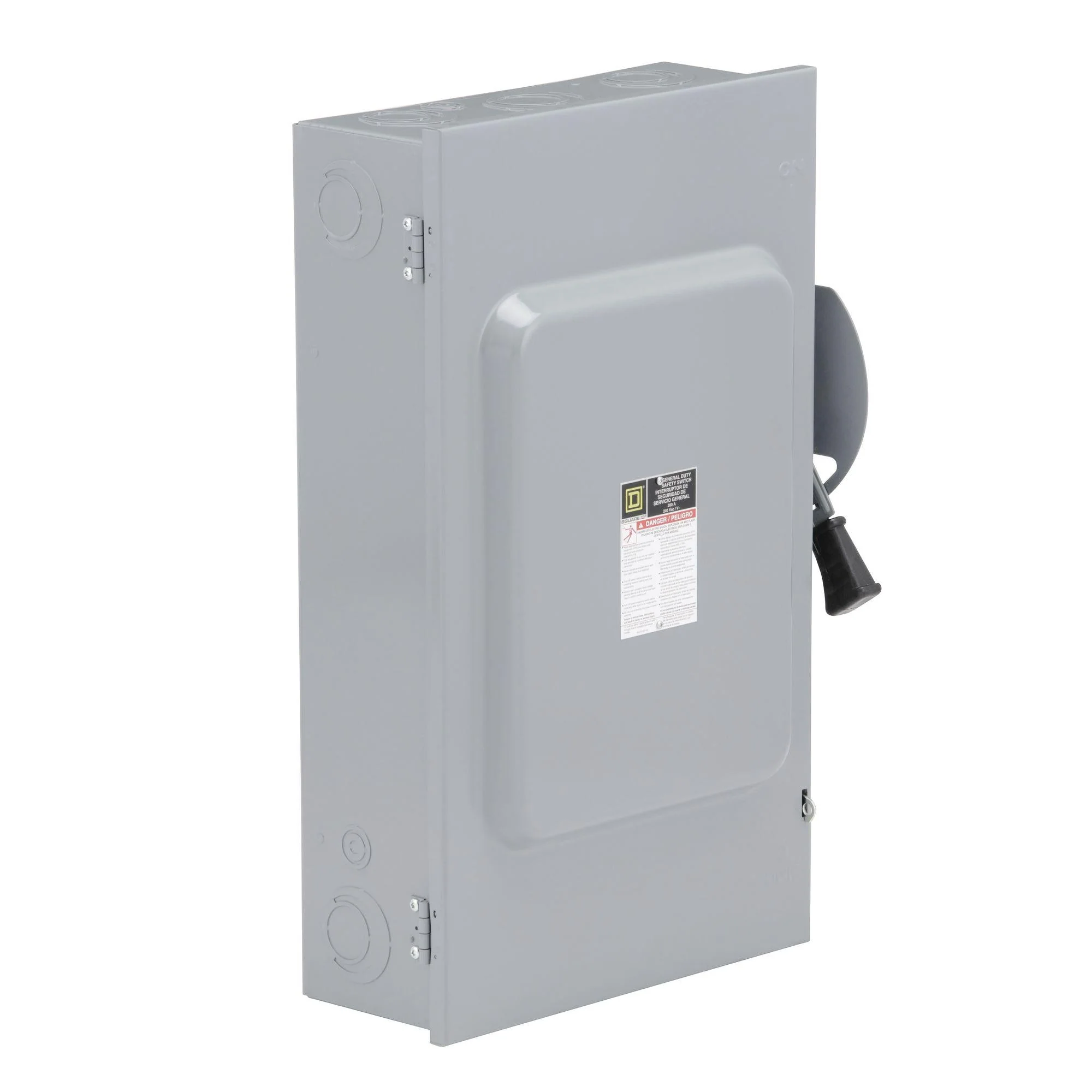

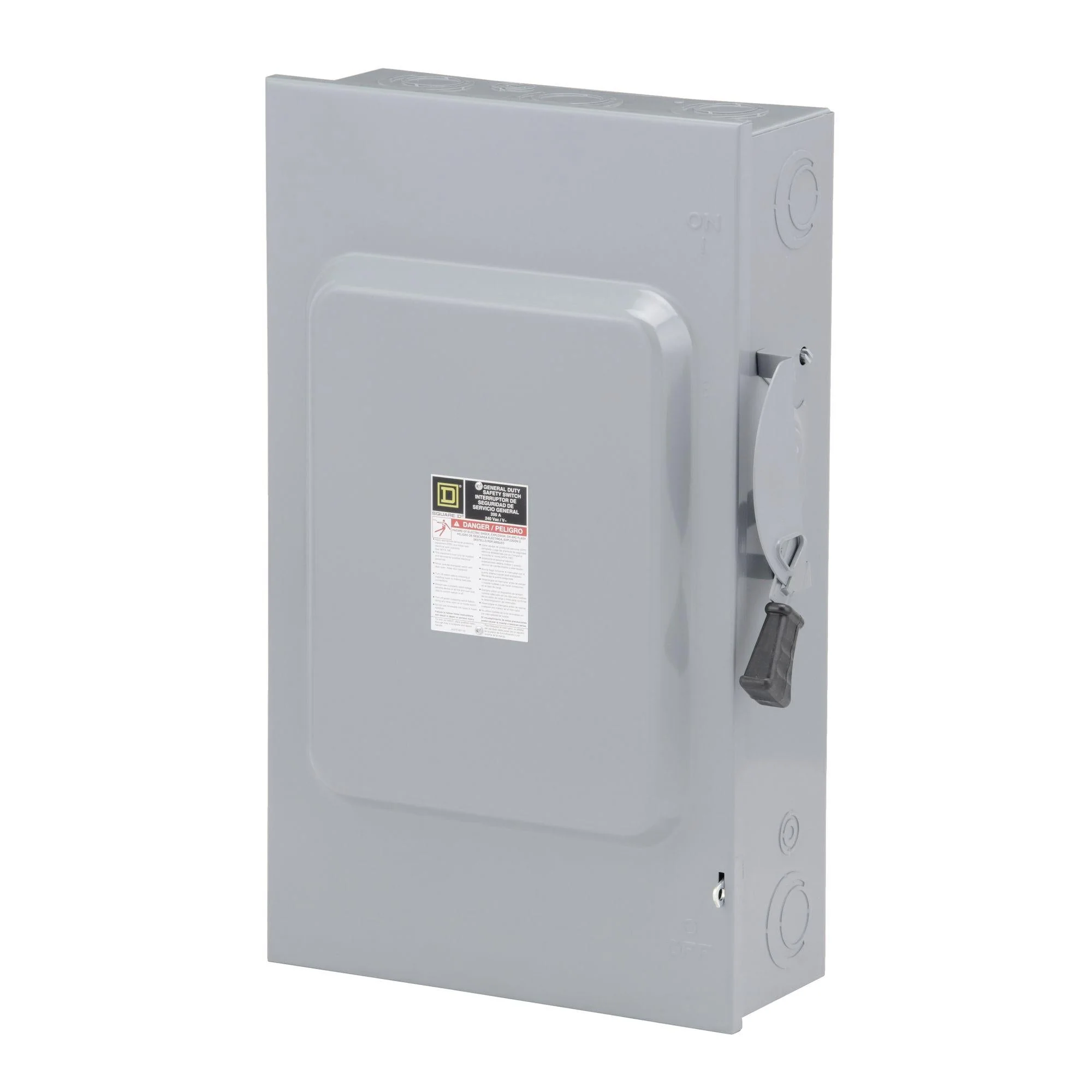

Product Description - D224NRB - Square D Disconnect
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a two pole, 200A, fusible disconnect with a 240VAC voltage rating. This switch has a factory installed neutral and a NEMA 3R enclosure and is surface mounted. This safety switch accepts H, K, or R fuses. This switch comes with lugs suitable for aluminum or copper conductors. This safety switch accepts H, K, or R fuses. These general duty switches are UL listed.
