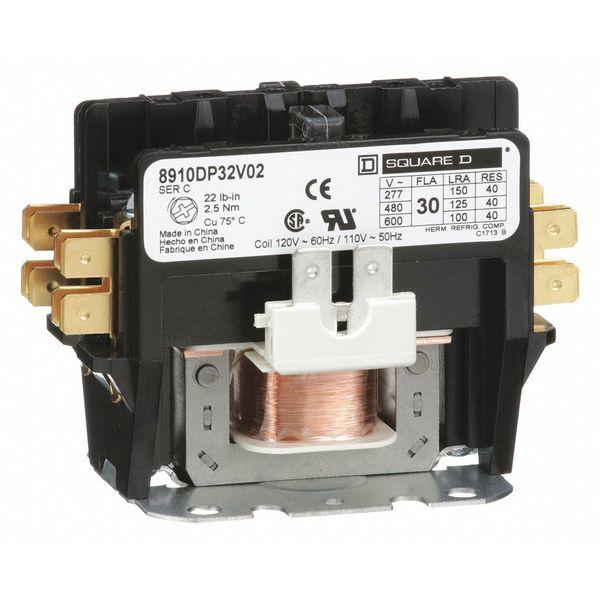

8910DP32V02 - Square D - 30 Amp Definite Purpose Contactors

8910DP32V02 - Square D Definite Purpose Contactors

Specifications:

• Product or component type: Definite Purpose Contactor
• [In] rated current: 30 A
• Number of Poles: 2P
• Pole contact composition: 2 NO
• Range of product: DP
• Motor power hp: 2 hp 115 V AC, 1 phase, 5 hp 230 V AC, 1 phase
• Locked rotor rated current: 125 A 460 V AC, 100 A 575 V AC, 150 A 277 V AC
• [Ue] rated operational voltage: 600 V AC
• [Uc] control circuit voltage: 120 V AC 60 Hz, 110 V AC 50 Hz
• Network number of phases: 1 phase
• Electrical connection: Binder head, Quick connect terminals
• Product certifications: UL listed, CSA
• Authentic Square D Product
• Voltage Rating: 600 Volt
