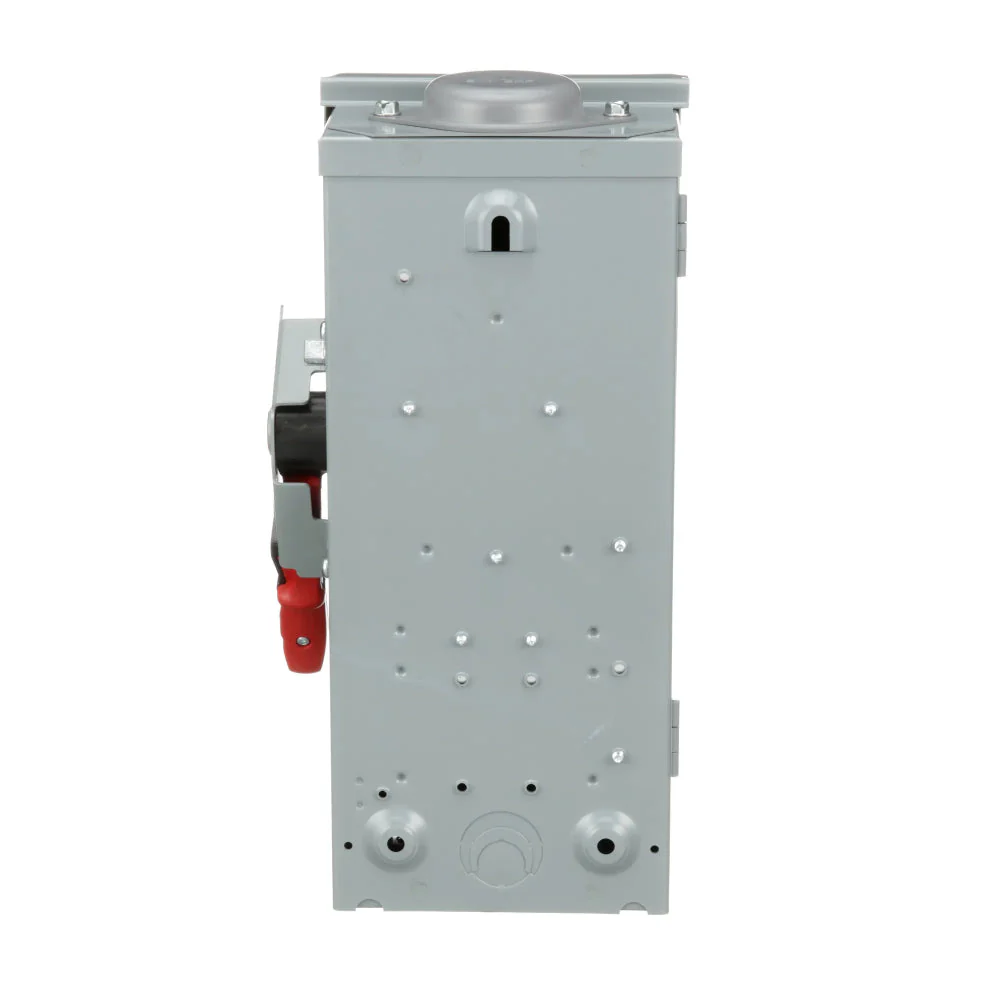

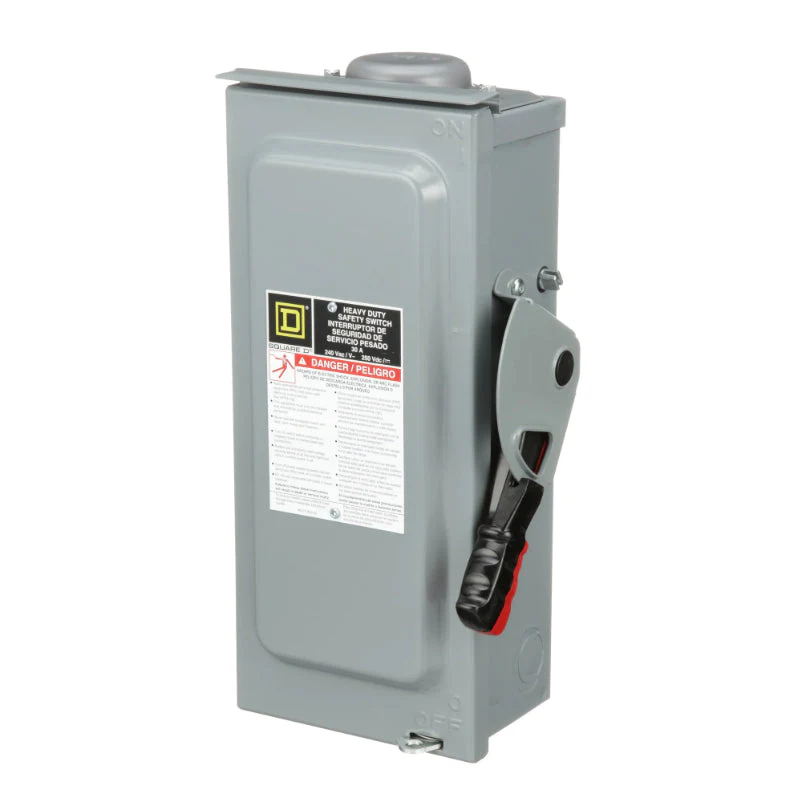

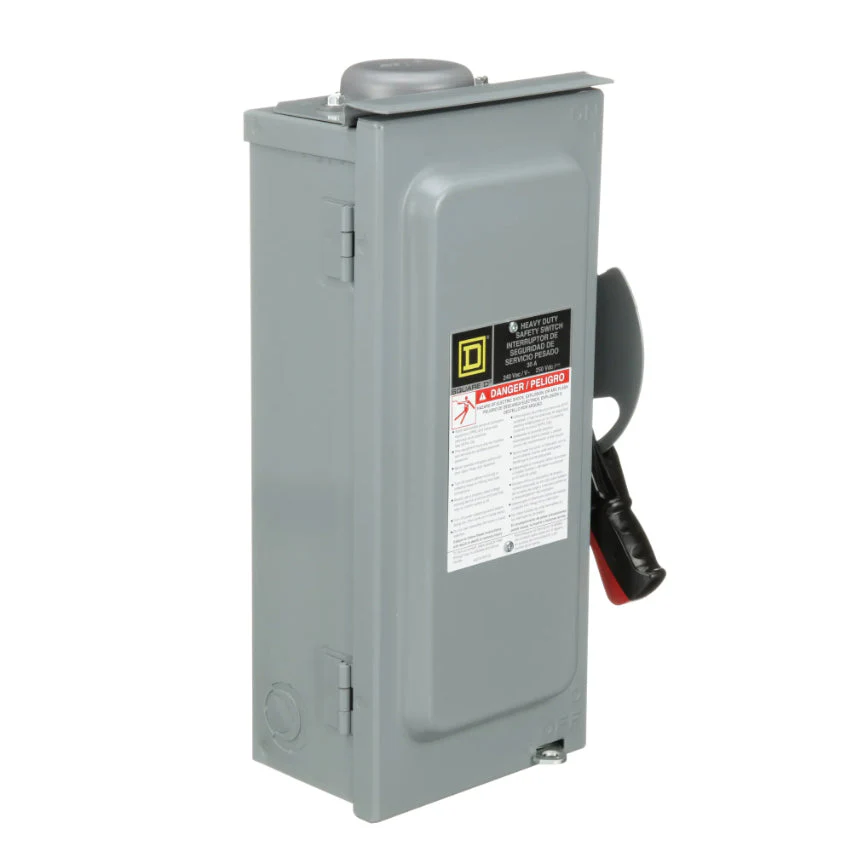

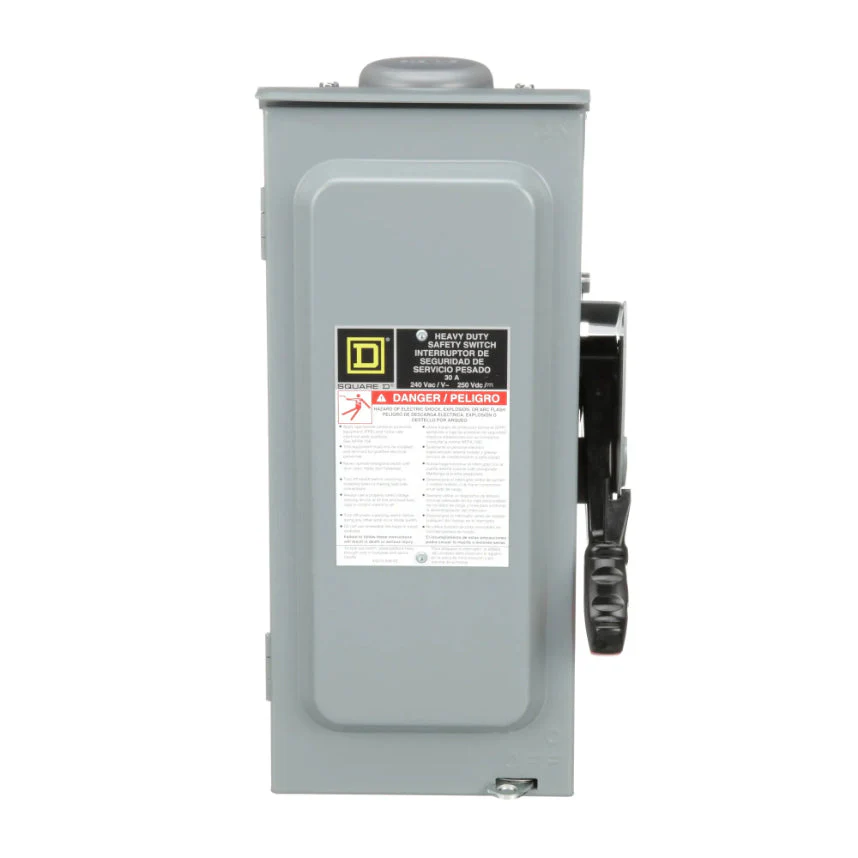

Product Specifications - H321NRB - Square D Disconnect
-
Part Number:
H321NRB -
Manufacturer:
-
Family:
Series F -
Pole:
3 -
Amp:
30 -
Volt:
240 -
Phase:
3
-
Category:
-
Type:
H -
AIC Ratings:
200kA@240V
Dimensions
-
Dimensions (HxWxD):
4.88 x 6.63 x 14.88 -
Weight:
9.55 lbs
Standards
Product Description - H321NRB - Square D Disconnect
The Square Dâ„¢ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 30A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 240VAC & 250VDC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
