Product Specifications - LC1F265F7 - Square D Contactor
-
Part Number:
LC1F265F7 -
Manufacturer:
-
Family:
TeSys F -
Pole:
3 -
Amp:
350 -
Volt:
110 -
Phase:
3
-
Category:
-
Type:
LC1F
Dimensions
-
Dimensions (HxWxD):
7.99 x 7.93 x 8.39 -
Weight:
16.40 lbs
Standards

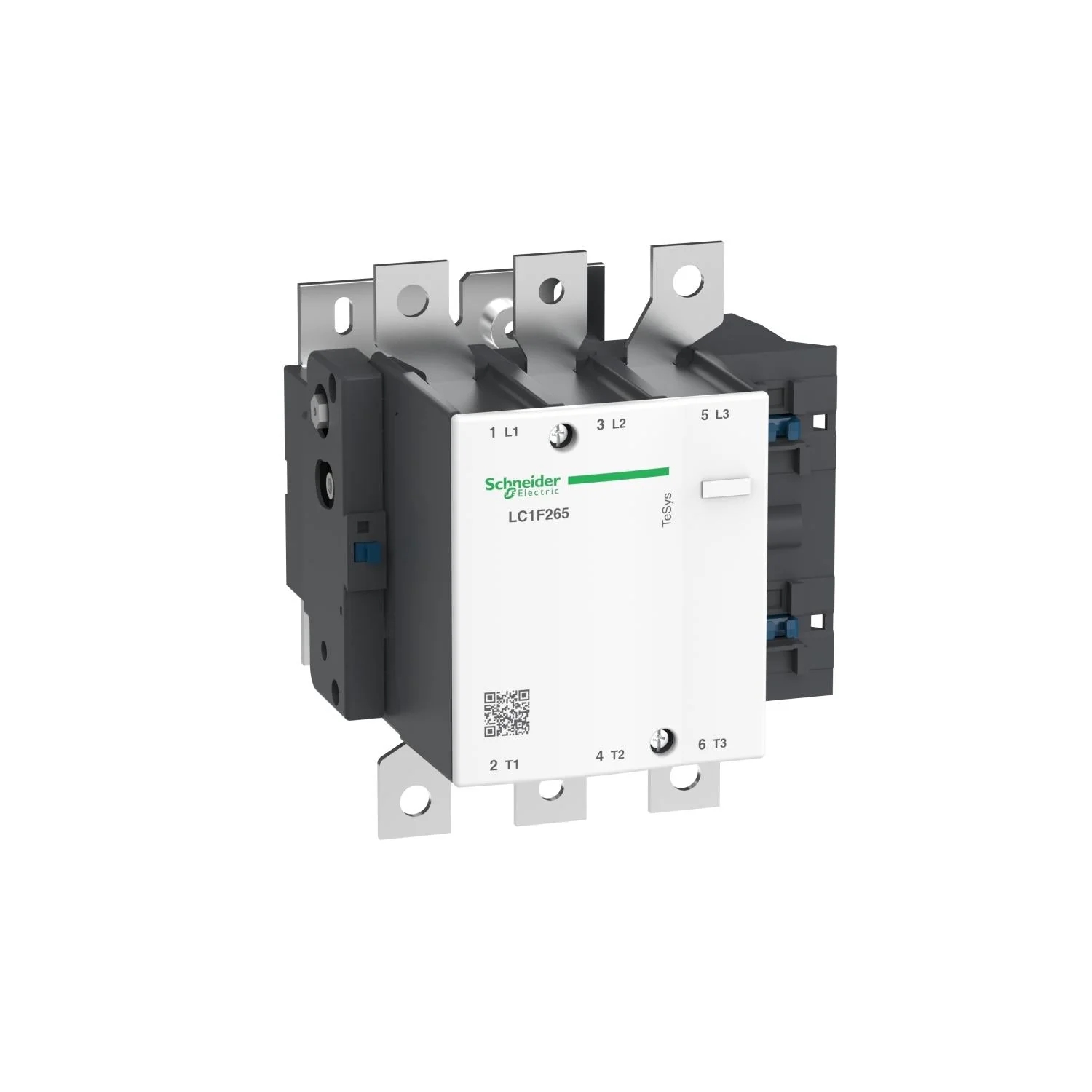

Product Description - LC1F265F7 - Square D Contactor
TeSys F contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. It provides a low sealed consumption 110V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
