Original: $3,771.99
-70%$3,771.99
$1,131.60The Story
Overview
Product Specifications - H365NR - Square D Disconnect
-
Part Number:
H365NR -
Manufacturer:
-
Family:
Series E -
Pole:
3 -
Amp:
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
H -
AIC Ratings:
200kA@600V
Dimensions
-
Dimensions (HxWxD):
10.13 x 27.28 x 50.31 -
Weight:
195.11 lbs
Standards

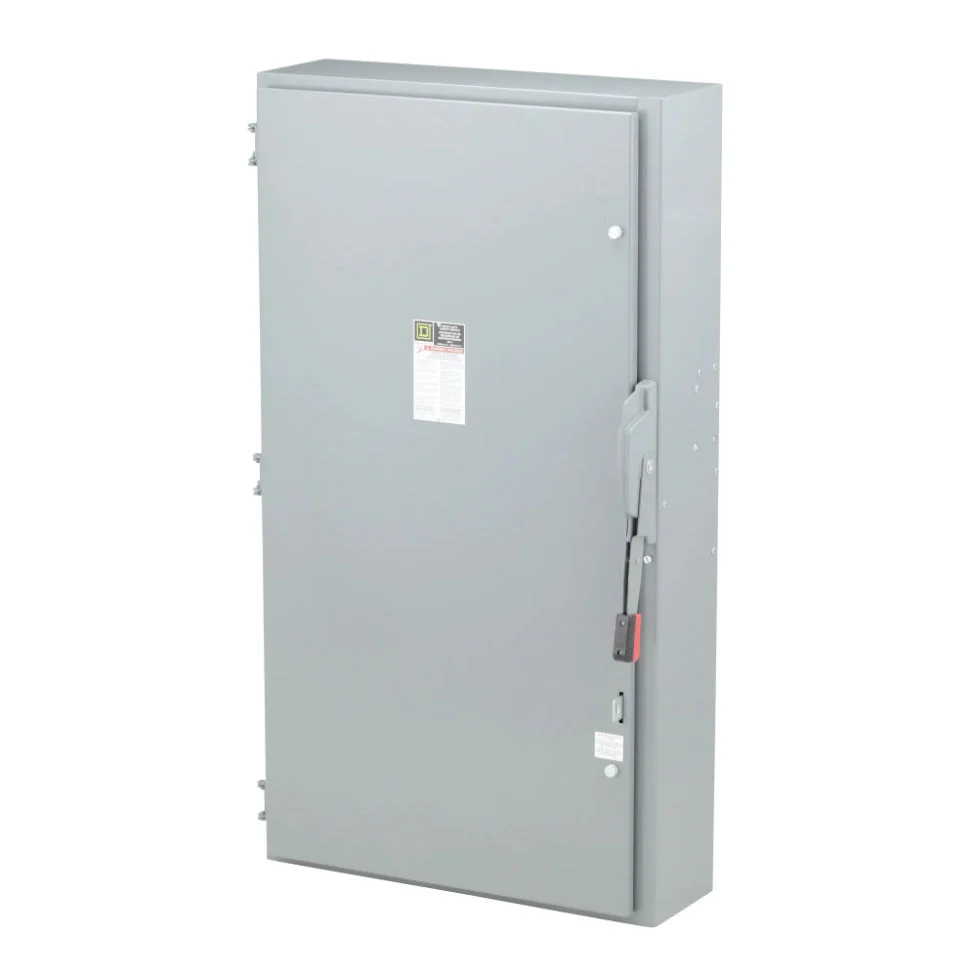

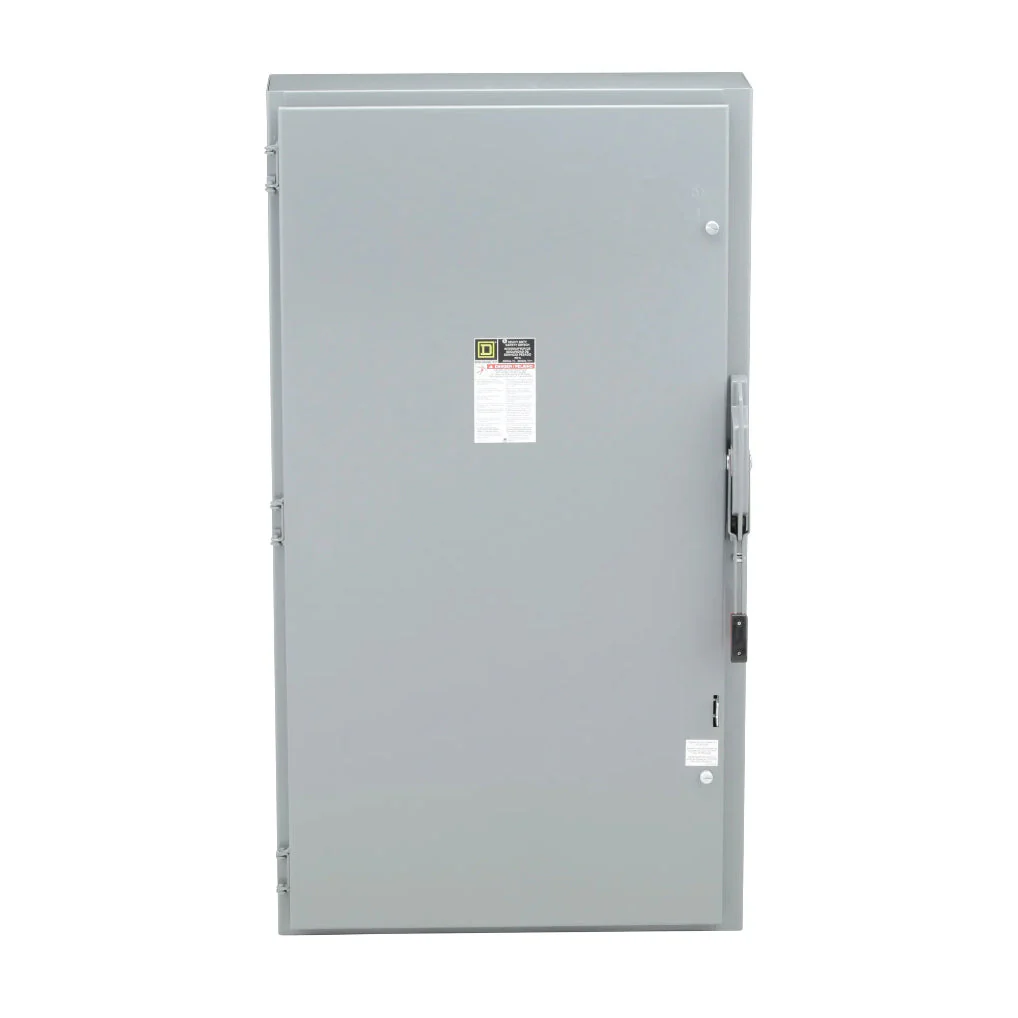

Product Description - H365NR - Square D Disconnect
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Overview
Product Specifications - H365NR - Square D Disconnect
-
Part Number:
H365NR -
Manufacturer:
-
Family:
Series E -
Pole:
3 -
Amp:
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
H -
AIC Ratings:
200kA@600V
Dimensions
-
Dimensions (HxWxD):
10.13 x 27.28 x 50.31 -
Weight:
195.11 lbs
Standards
Product Description - H365NR - Square D Disconnect
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
