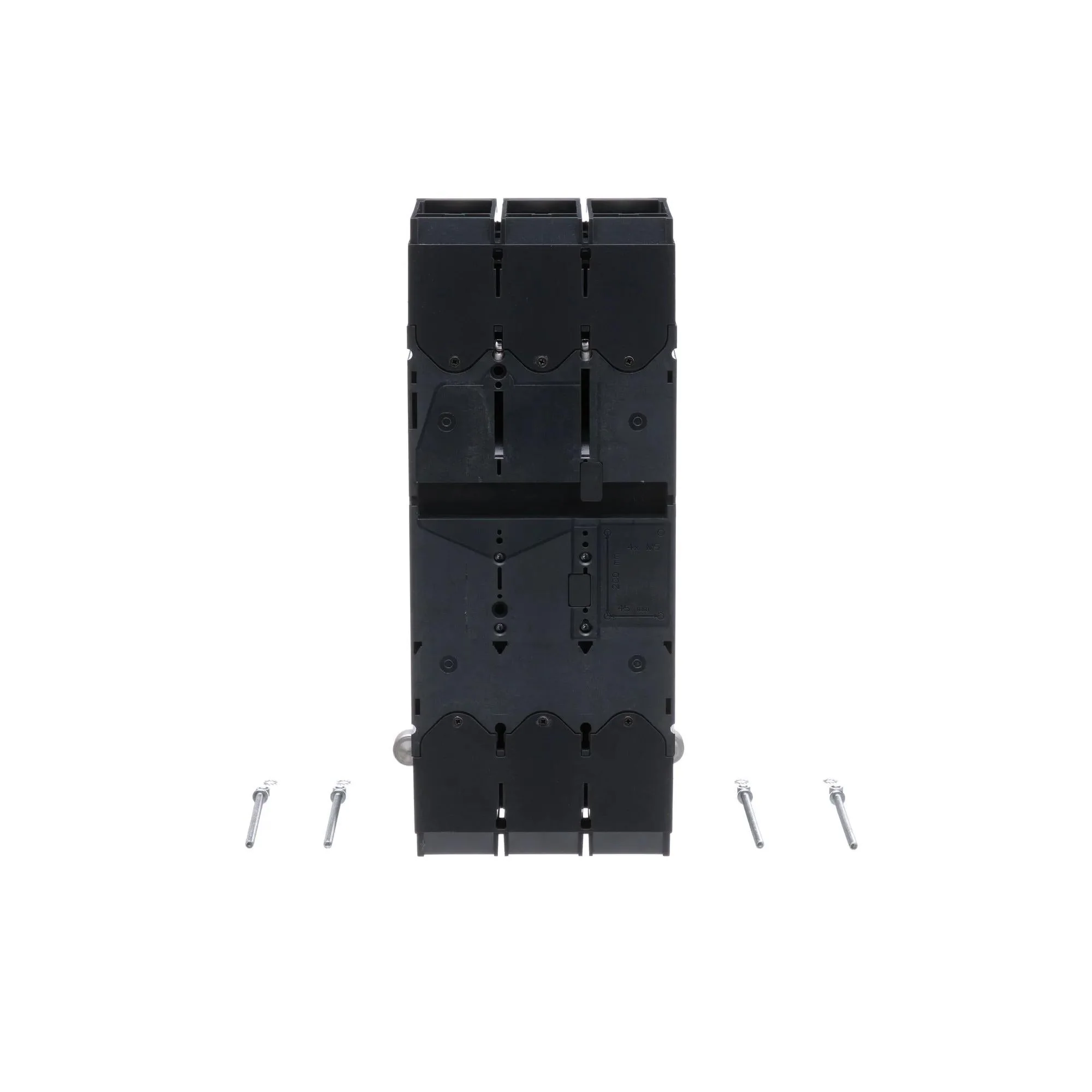

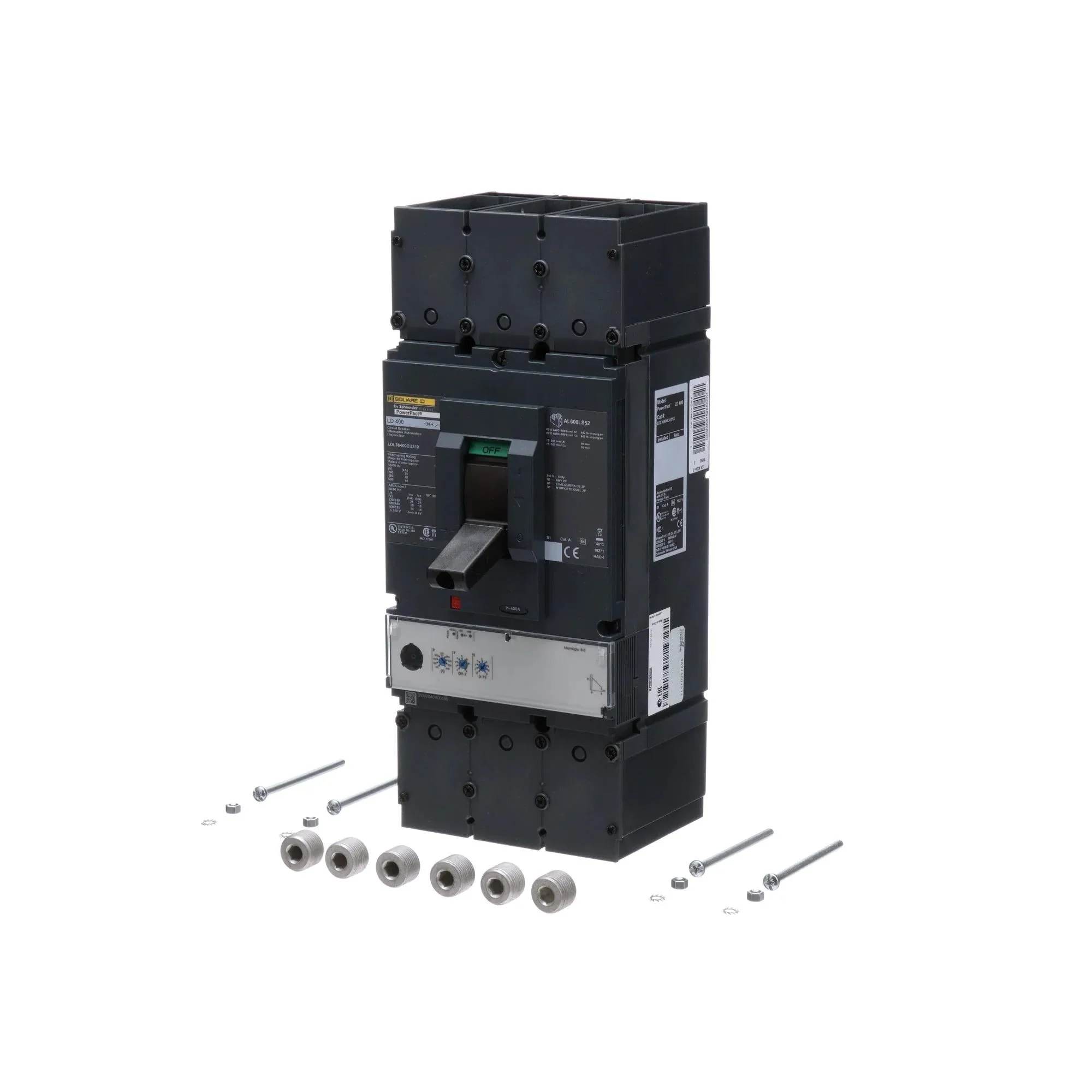

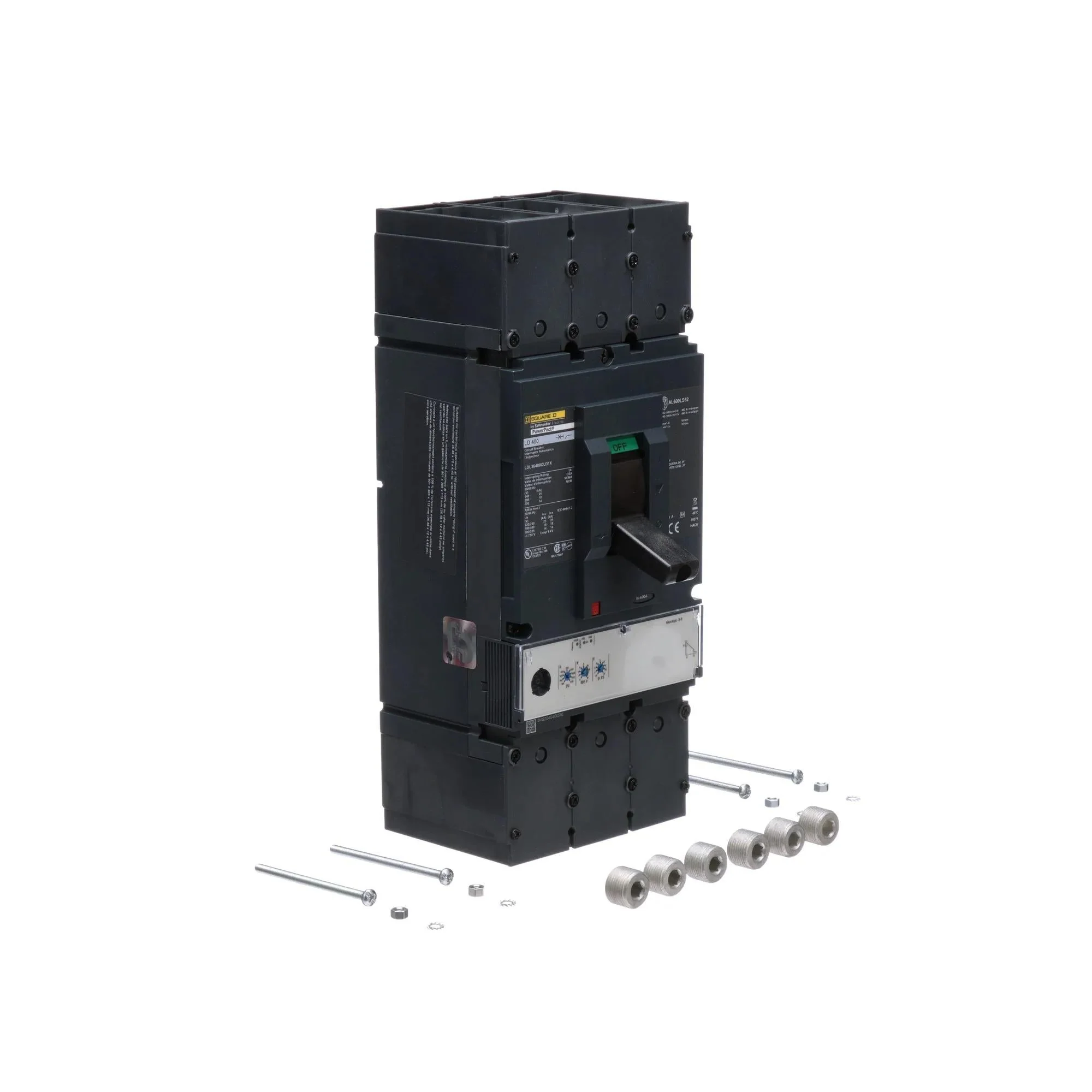

Product Specifications - LDL36400CU31X - Square D Molded Case Circuit Breaker
-
Part Number:
LDL36400CU31X -
Manufacturer:
-
Family:
Powerpact -
Amp:
400 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
L Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
13.39 x 5.51 x 4.33 -
Weight:
13.67 lbs
Standards
Product Description - LDL36400CU31X - Square D Molded Case Circuit Breaker
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 100%. This circuit breaker has a continuous current rating of 100%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
