Original: $251.99
-70%$251.99
$75.60The Story
Overview

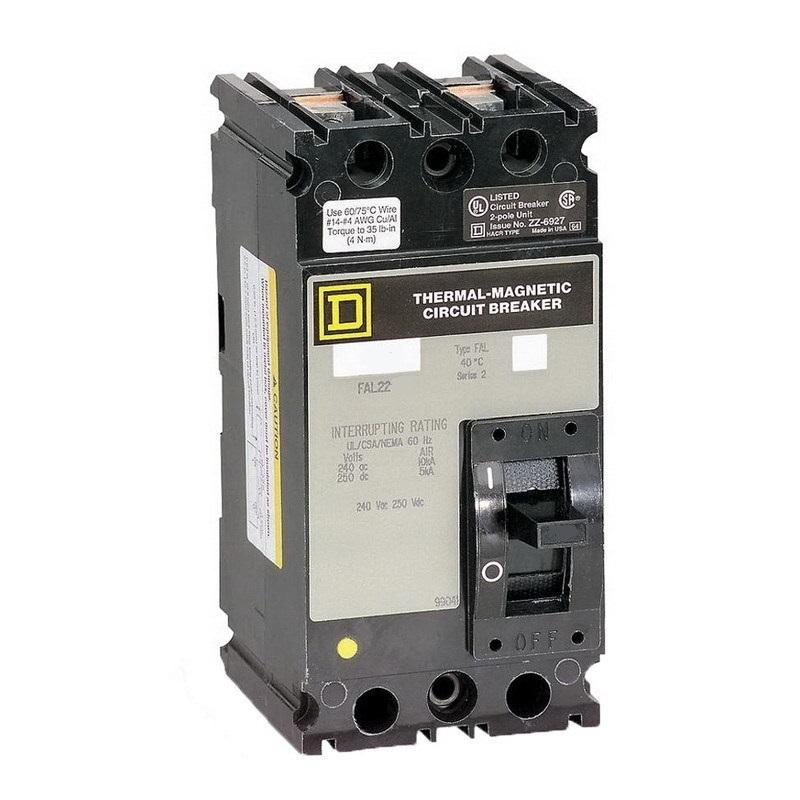

Product Specifications - FAL22060 - Square D Molded Case Circuit Breakers
-
Part Number:
FAL22060 -
Manufacturer:
-
Family:
FAL Series -
Pole:
2 -
Amp:
60 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
F Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V
Dimensions
-
Dimensions (HxWxD):
6.4 x 3.0 x 4.13 -
Weight:
4.2 lbs
Standards
Product Description - FAL22060 - Square D Molded Case Circuit Breakers
The FAL22060 is another type FAL molded case circuit breaker from Square D's FAL series. It features 2 poles (2P), operates in single phase (1PH), with a higher current rating of 60A at 240V. Similar to the previous models, it has a standard interrupting capacity of 10kA at 240V and offers Long-Time and Instantaneous trip functions. This Feed-Thru circuit breaker includes line and load side lug terminals, providing reliable protection for various industrial applications.
