Original: $2,192.99
-70%$2,192.99
$657.90The Story
Overview
Product Specifications - DGL36600E20 - Square D Molded Case
-
Part Number:
DGL36600E20 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp:
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
D Frame -
Functions:
LS - Long-Time and Short-Time -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Standards
Product Description - DGL36600E20 - Square D Molded Case

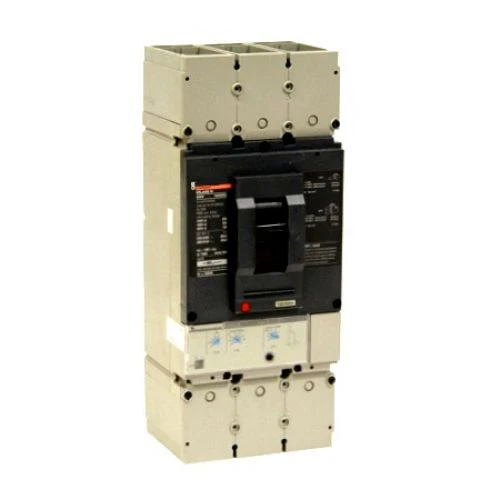

The DGL36600E20 from Schneider Electric, belonging to the Square D Powerpact series, is a type DGL molded case circuit breaker. It features 3 poles (3P), operates in three phases (3PH), and has a current rating of 600A at 600V. With a standard interrupting capacity of 35kA at 480V, this circuit breaker is UL listed for safety compliance. It includes Feed-Thru functionality and comes complete with an STR23SP trip unit, providing both Long-Time (LS) and Short-Time trip functions. Additionally, it features line and load side lug terminals for easy installation. This circuit breaker utilizes solid-state electronic technology for reliable performance and is suitable for various industrial applications.
