Product Specifications - LC1K09004F7 - Square D Contactor
-
Part Number:
LC1K09004F7 -
Manufacturer:
-
Category:
-
Type:
LC
Dimensions
-
Dimensions (HxWxD):
2.28 x 1.77 x 2.24 -
Weight:
0.4 lbs
Standards

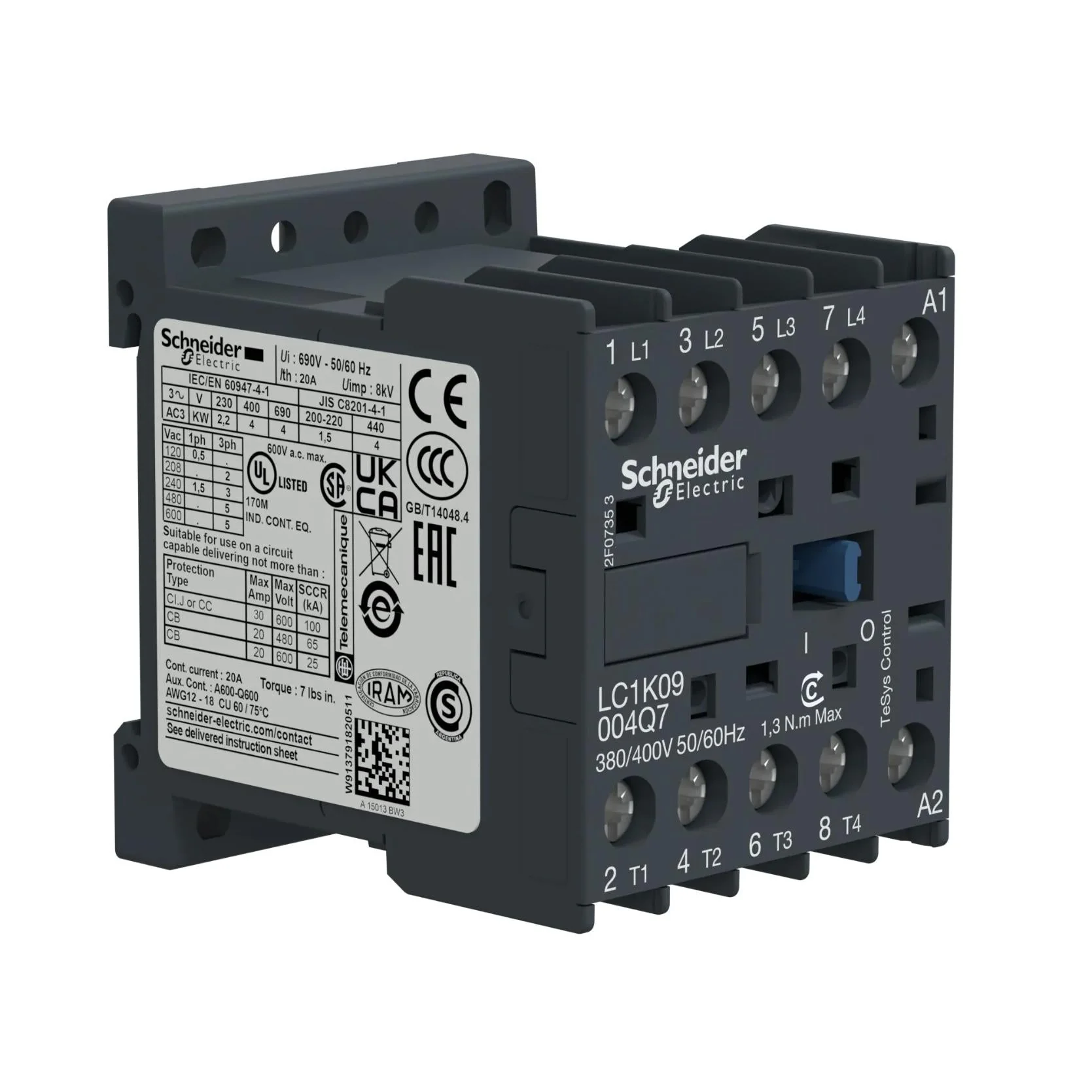

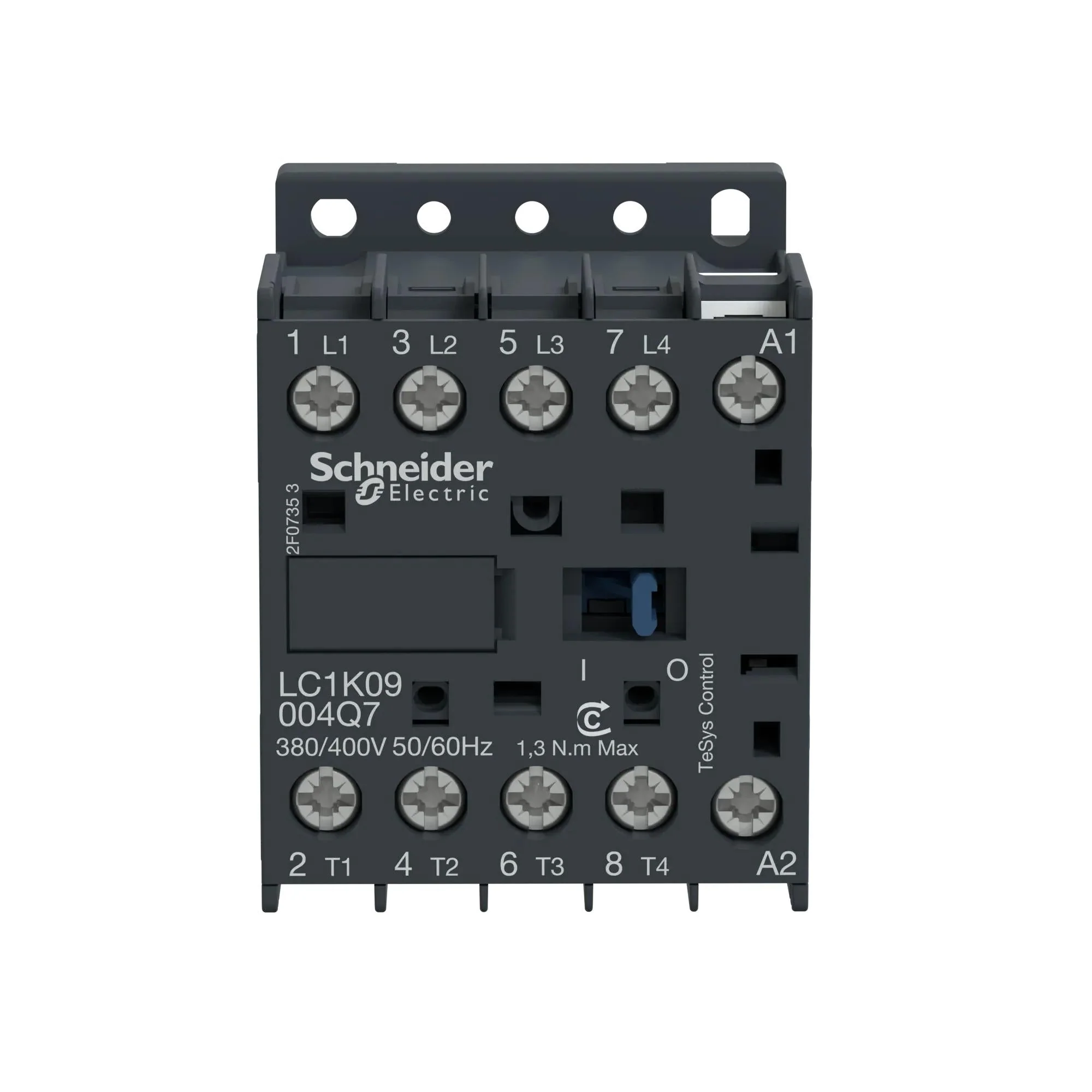

Product Description - LC1K09004F7 - Square D Contactor
TeSys K contactor, 4 poles (4NO), for non-inductive load control applications up to 20A/690V AC-1. It provides a 110V 50/60Hz AC coil, without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
