Product Specifications - 8501RSD42P14V53 - Square D Fuse Part And Accessory
-
Part Number:
8501RSD42P14V53 -
Manufacturer:
-
Category:
Dimensions
-
Dimensions (HxWxD):
1.07 x 0.83 x 1.65 -
Weight:
0.05 lb
Standards
Product Description - 8501RSD42P14V53 - Square D Fuse Part And Accessory

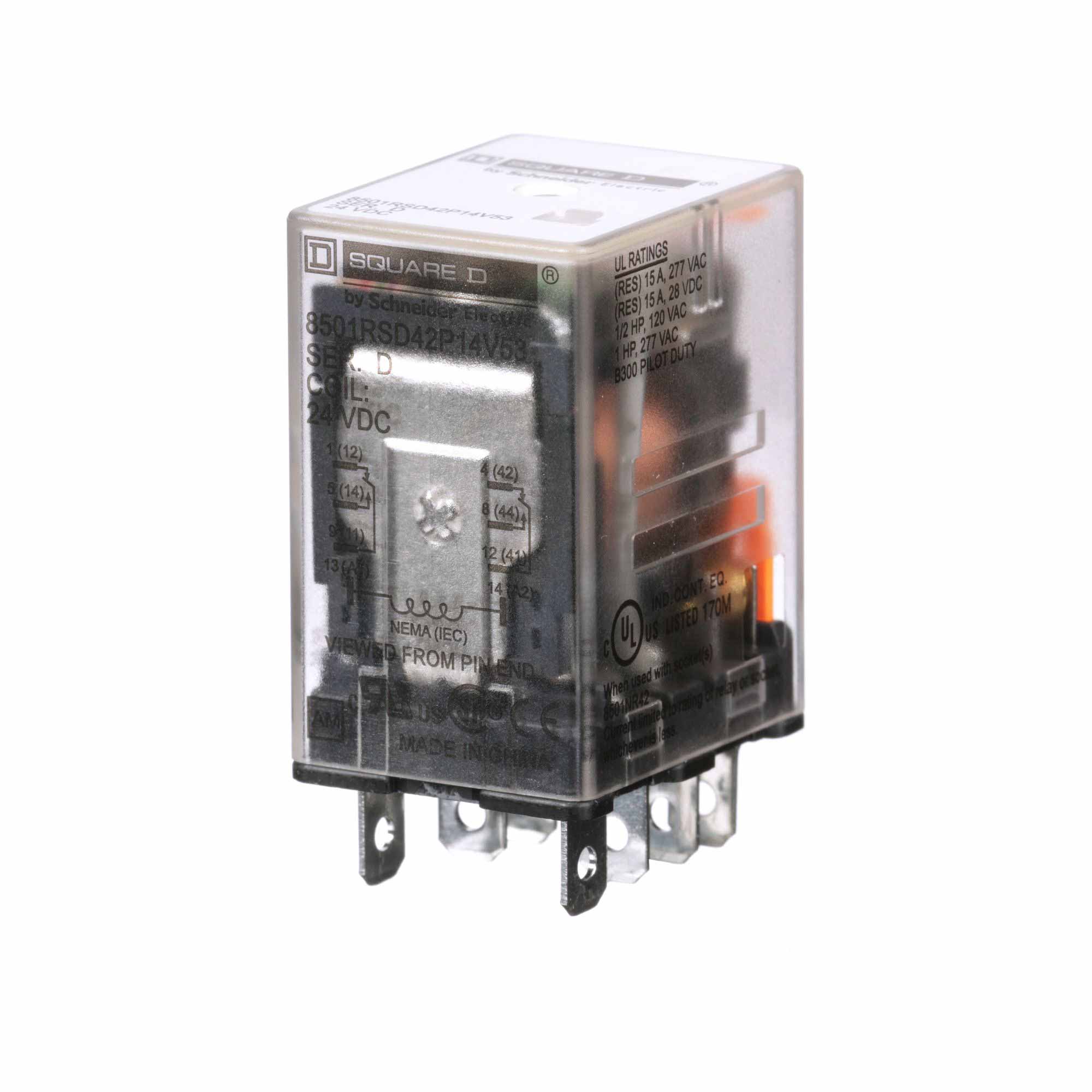

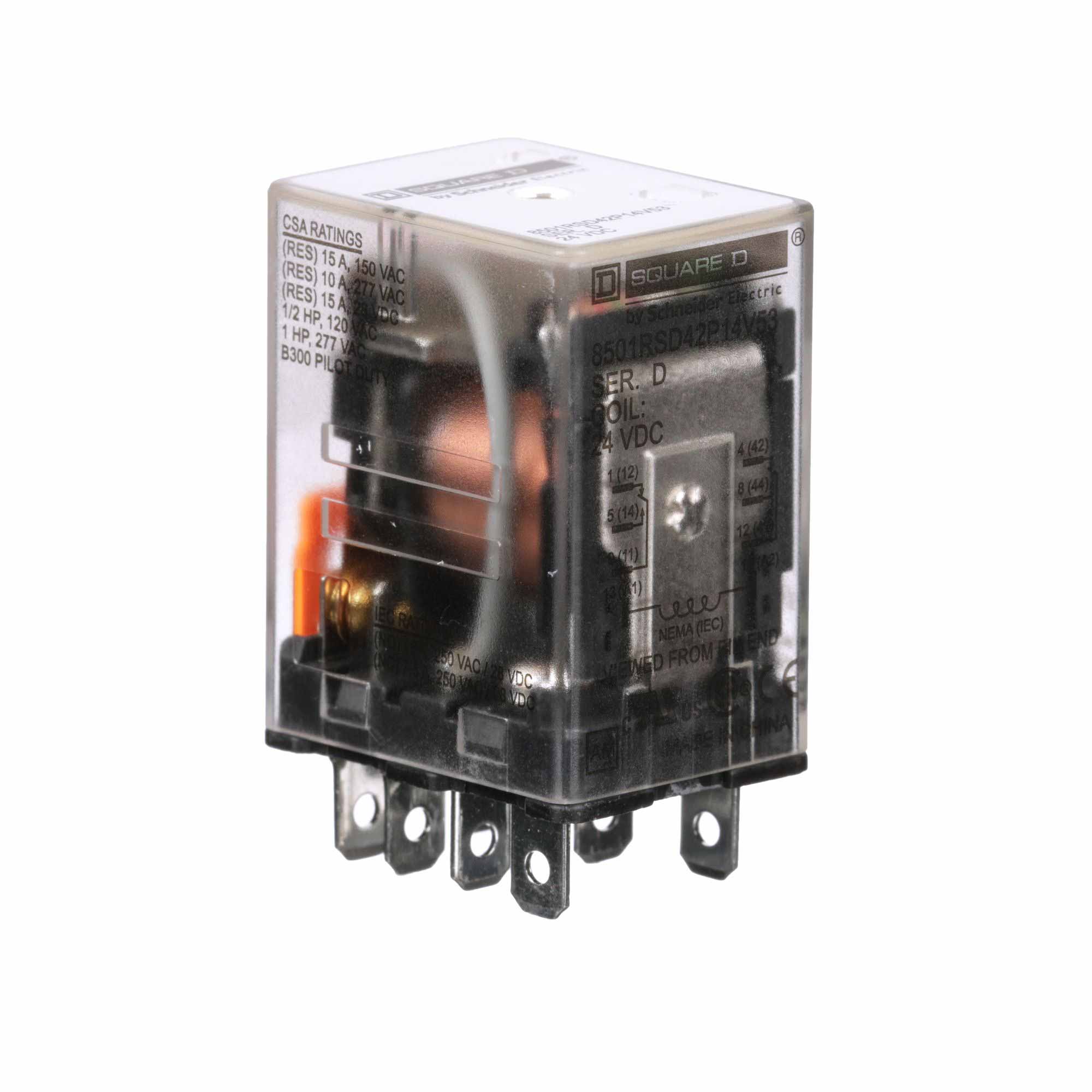

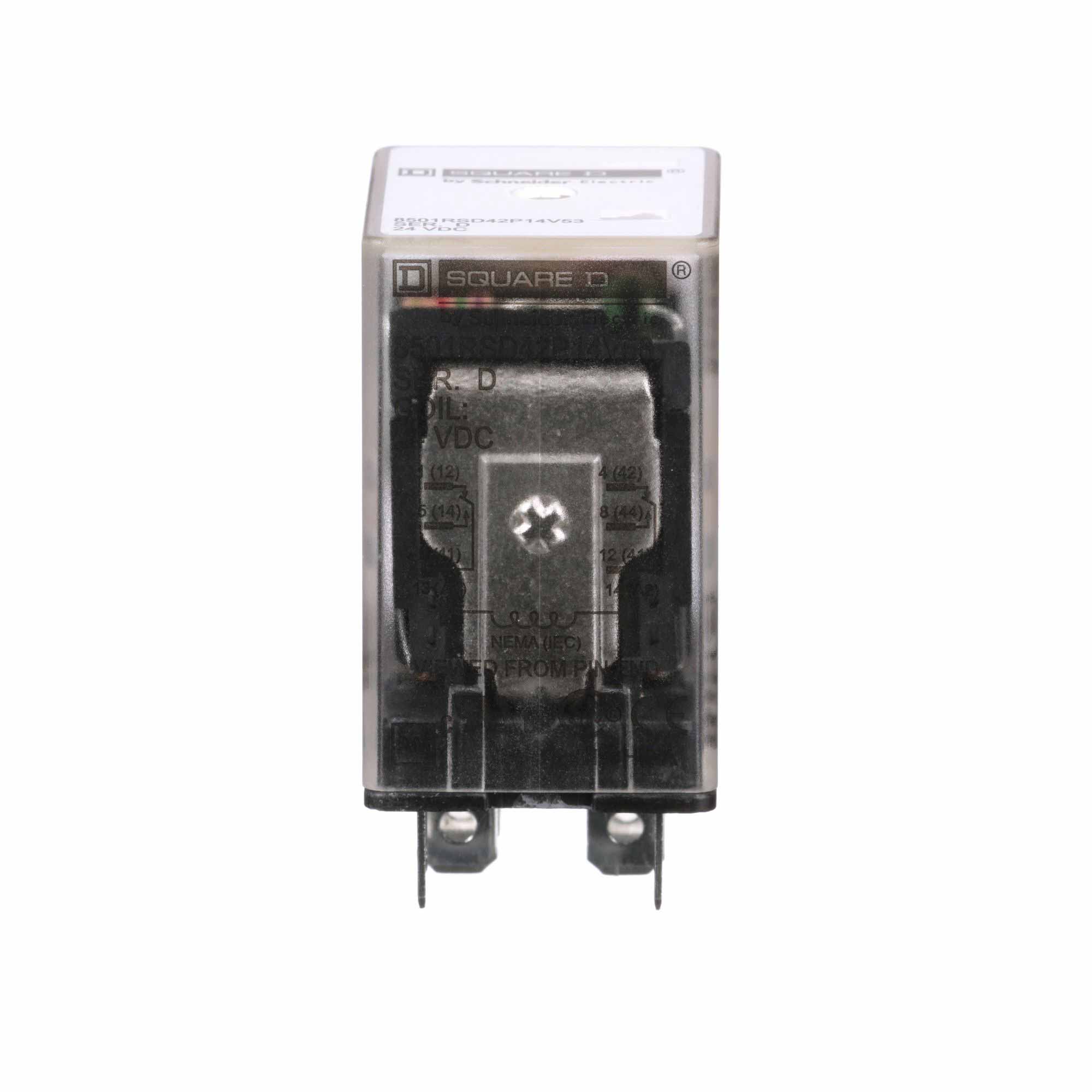

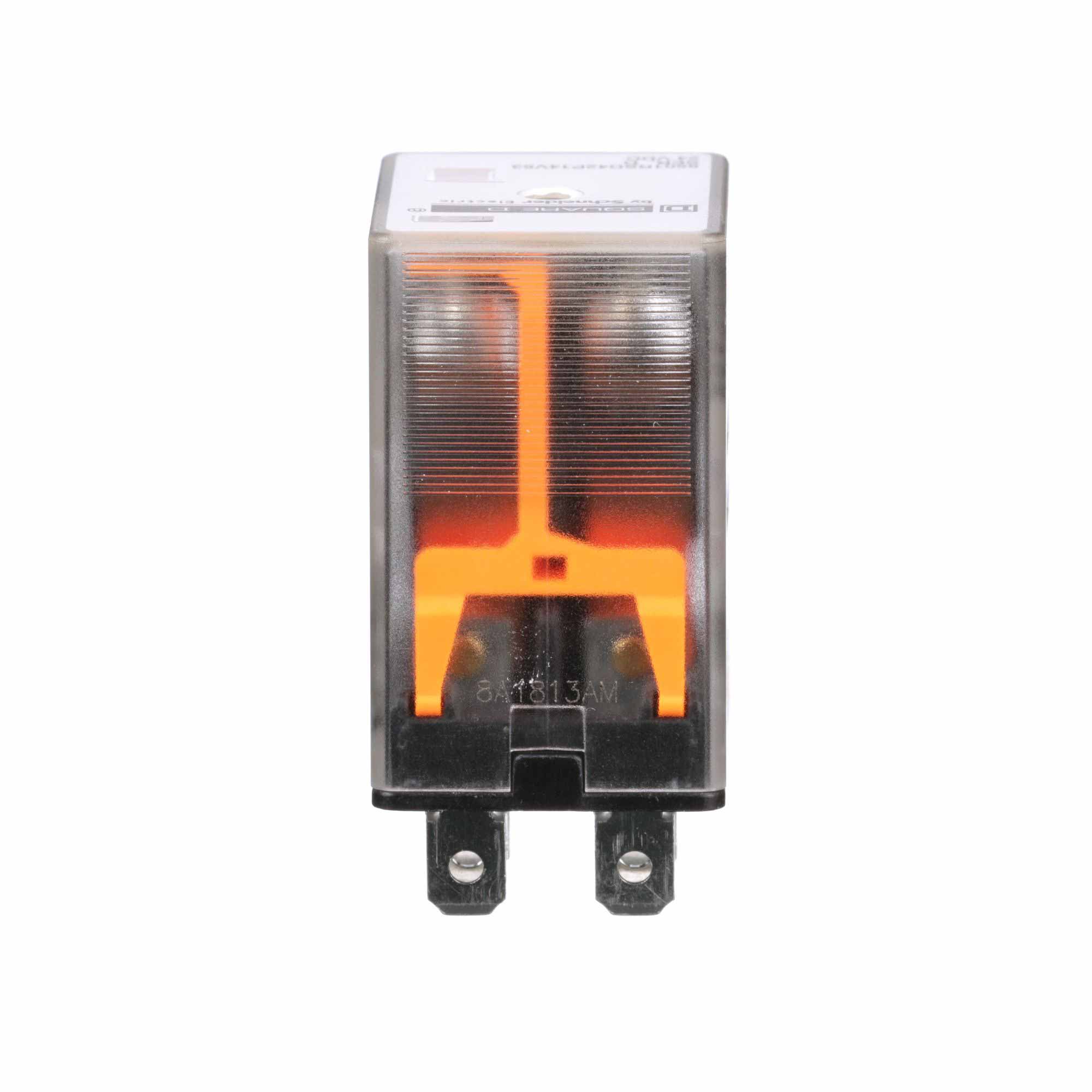

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
