Original: $77.99
-70%$77.99
$23.40The Story
Overview
Product Specifications - LR3D216 - Square D Heater Element
-
Part Number:
LR3D216 -
Manufacturer:
-
Category:
Dimensions
-
Dimensions (HxWxD):
2.60 x 1.77 x 2.76 -
Weight:
0.27 lbs
Standards

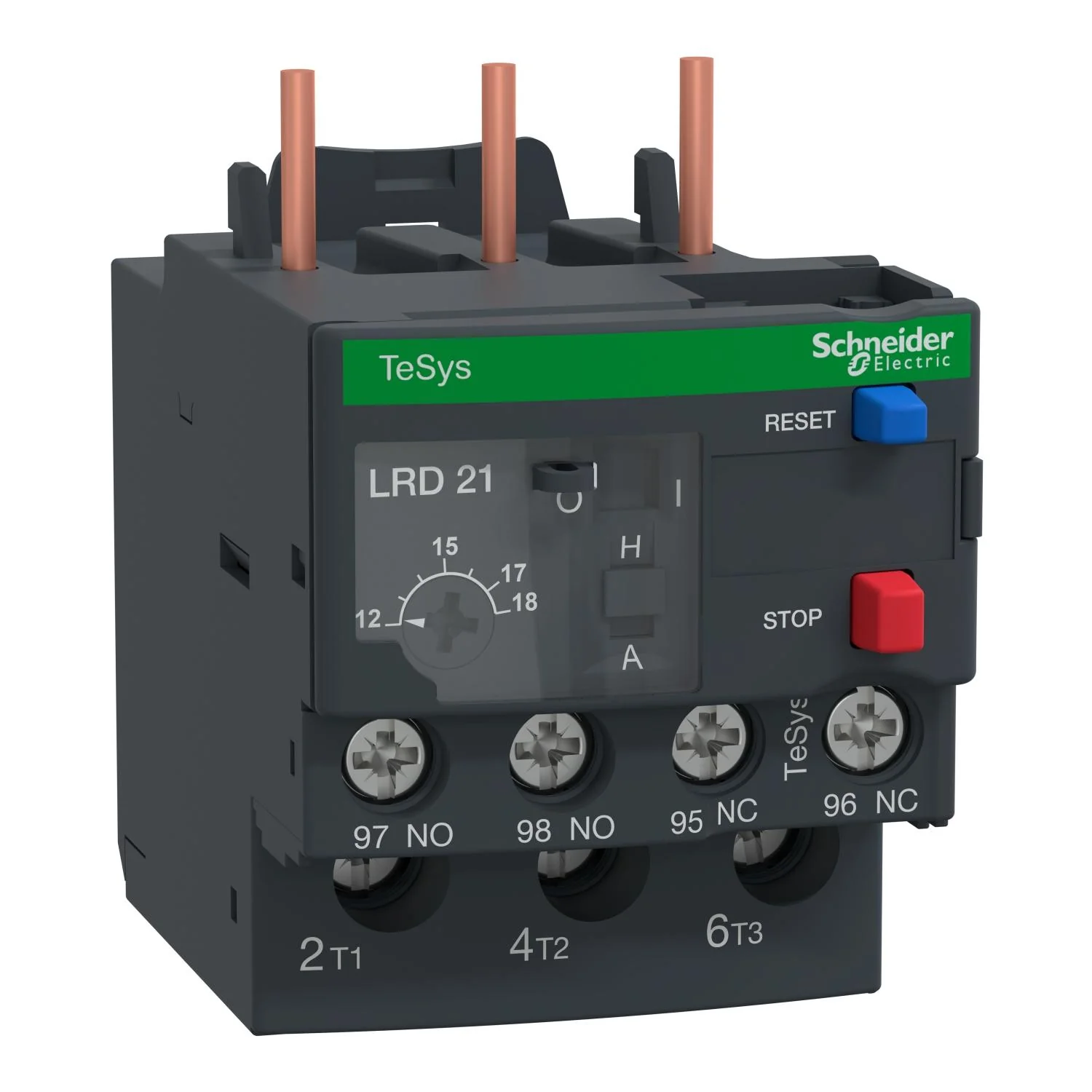

Product Description - LR3D216 - Square D Heater Element
TeSys LRD thermal overload relay, 18A/690V, thermal setting range 12-18A, tripping class 10A, for protection of 3-phase motors 7.5kW@400V. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D18-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Description
Overview
Product Specifications - LR3D216 - Square D Heater Element
-
Part Number:
LR3D216 -
Manufacturer:
-
Category:
Dimensions
-
Dimensions (HxWxD):
2.60 x 1.77 x 2.76 -
Weight:
0.27 lbs
Standards
Product Description - LR3D216 - Square D Heater Element
TeSys LRD thermal overload relay, 18A/690V, thermal setting range 12-18A, tripping class 10A, for protection of 3-phase motors 7.5kW@400V. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D18-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
