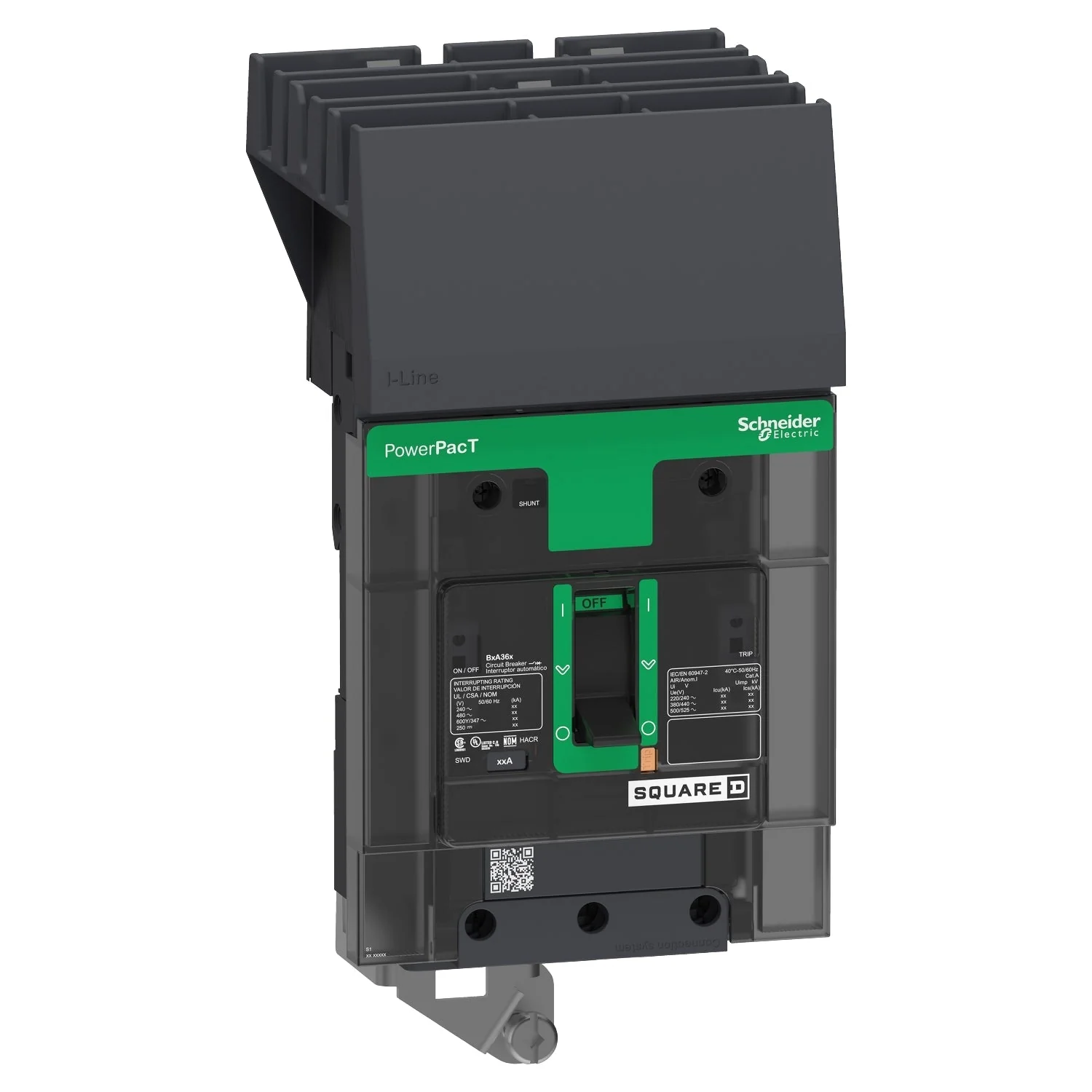

BDA34125Y - Square D - Molded Case Circuit Breaker—
$824.99
The Story
Overview
Product Specifications - BDA34125Y - Square D Molded Case Circuit Breakers
-
Part Number:
BDA34125Y -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
125 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
BDA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
5.39" x 3.19" x 3.50" -
Weight:
2.90 lbs
Additional Details
-
Frame Type:
B-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
125 Amp -
Mounting Mode:
I-Line
-
Breaking Capacity Code:
D -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 2/0 aluminium/copper
Standards
Product Description - BDA34125Y - Square D Molded Case Circuit Breakers
Square D,Schneider Electric, Powerpact, type BDA, 3PH, 3P, 480Y/277Vac, complete with non-interchangeable trip rated 480Y/277V max, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, 125A, 18kA@480V rated, i-line style plug-in with ABC phase connection,thermal magnetic.
Documentation
