Product Specifications - HDL36015 - Square D Powerpact Circuit Breaker
-
Part Number:
HDL36015 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
15 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HDL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-

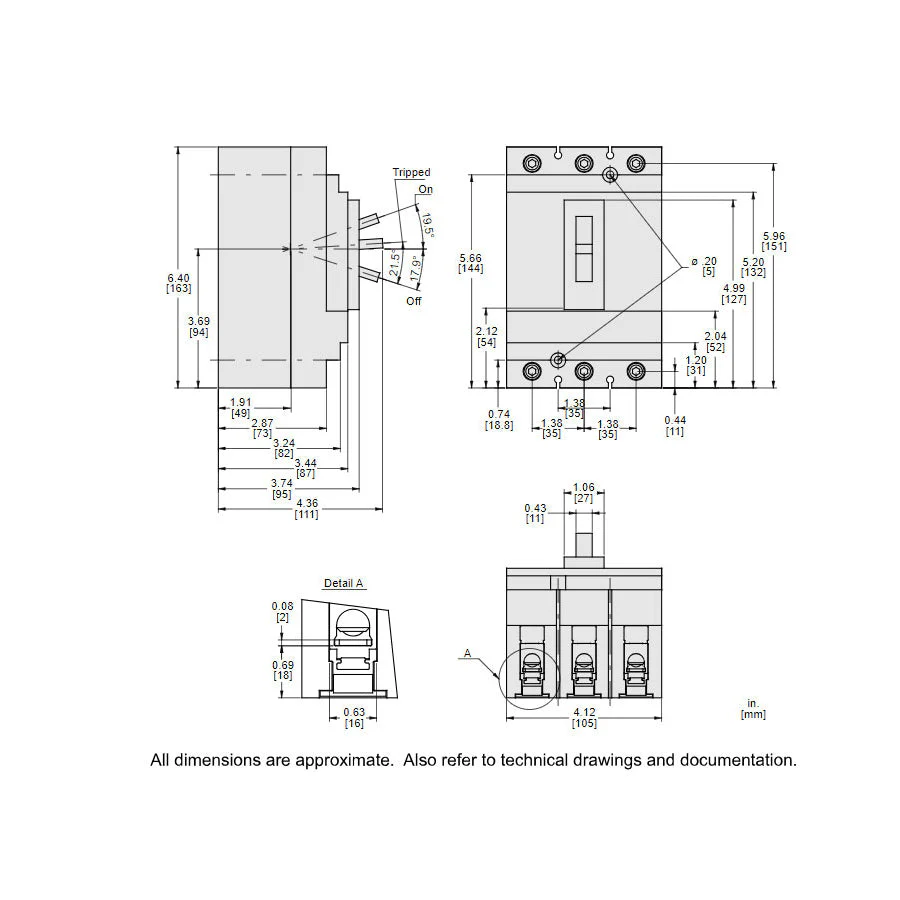

Dimensions (HxWxD):
6.4" x 4.12" x 4.36"
-
Weight:
1.86 lbs
Standards
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
15 A -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code
D -
Electrical Connection:
Lugs line / Lugs load -
Magnetic Hold Current:
350 A -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HDL36015 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type HDL, 3P, 3PH, 15A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
