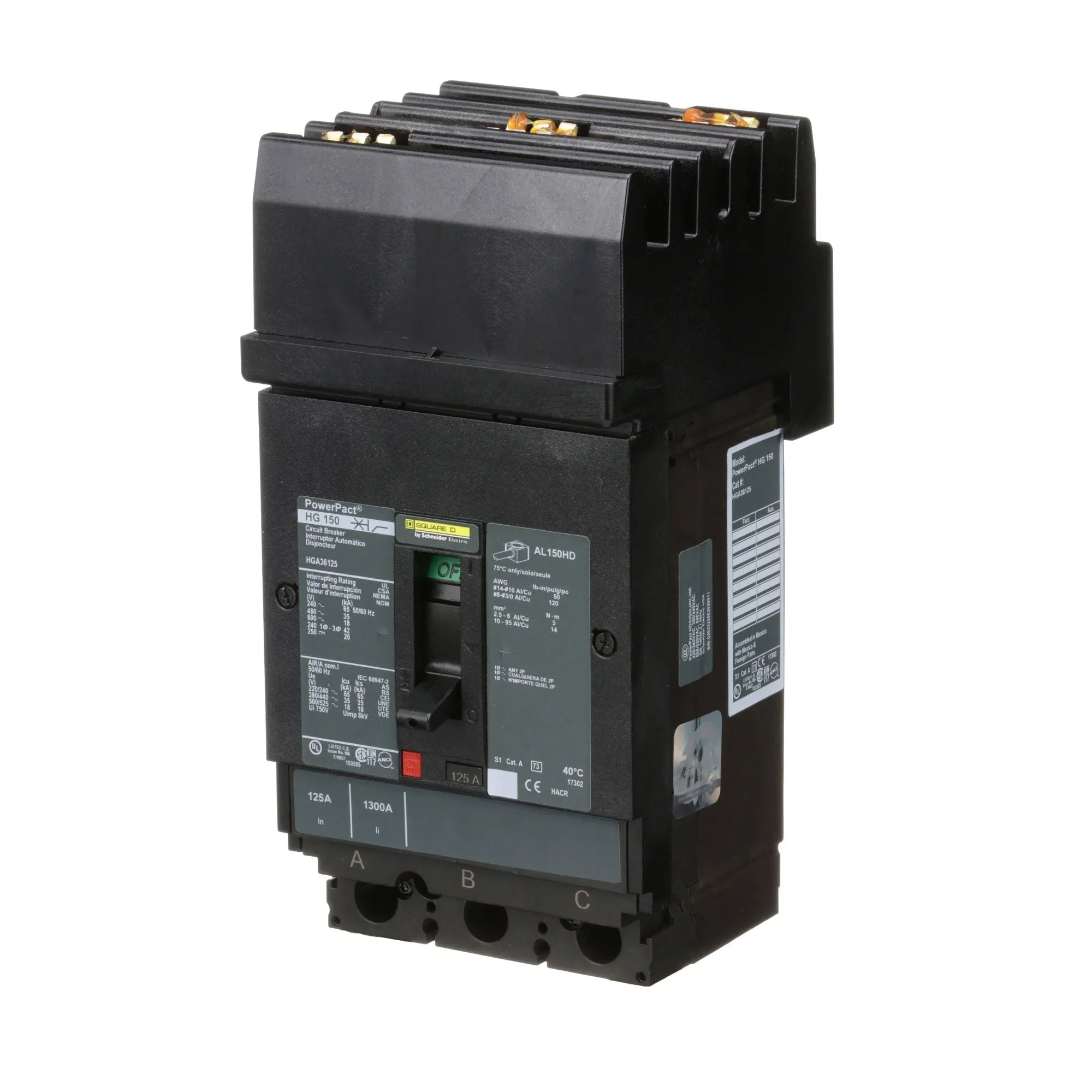

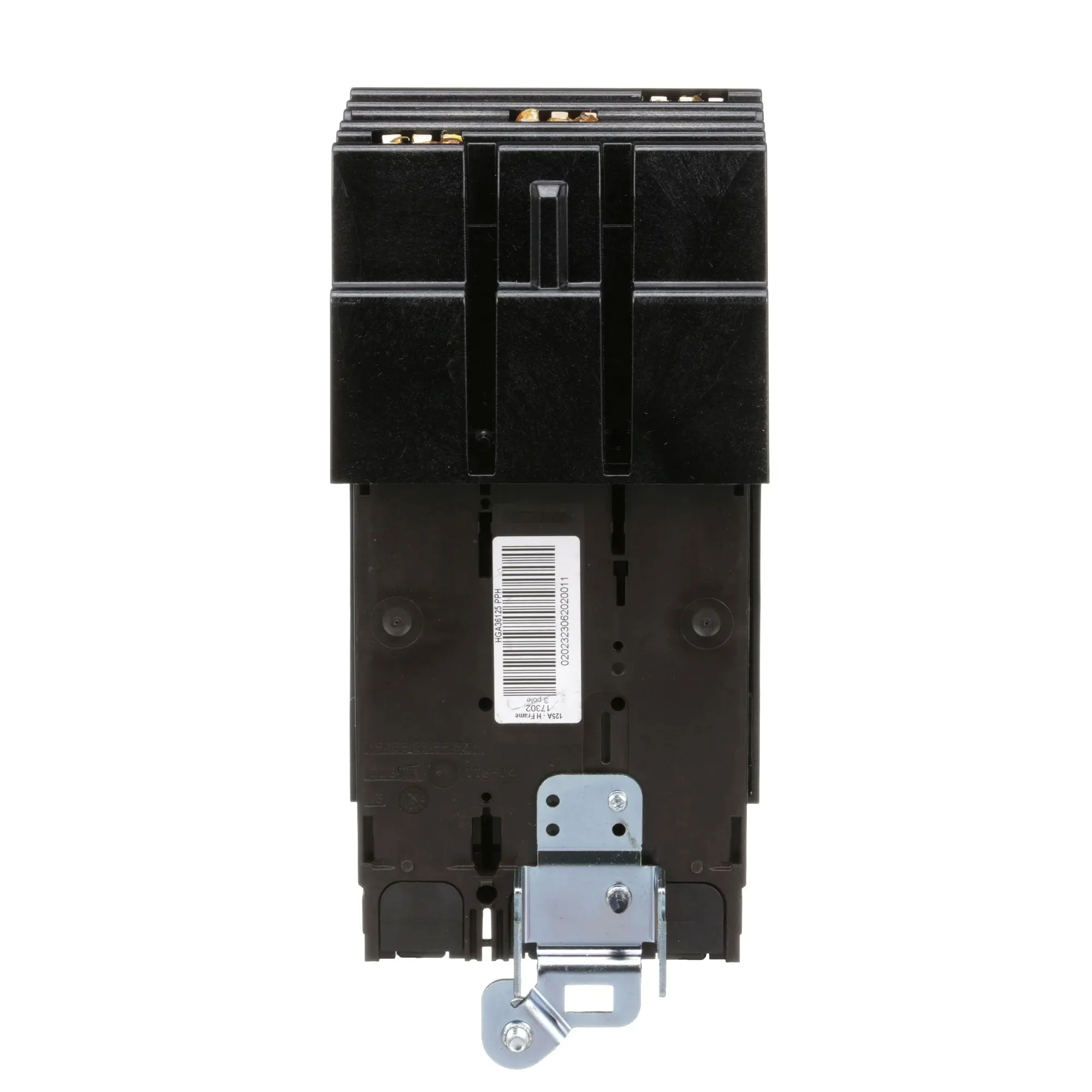

Product Specifications - HGA36125 - Square D Powerpact Circuit Breaker
-
Part Number:
HGA36125 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
125 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
HGA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
9.73" x 4.48" x 4.8"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
125 A -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
G -
Electrical Connection:
l-Line Connection line / Lugs load -
Magnetic Hold Current:
900 A -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HGA36125 - Square D Powerpact Circuit Breaker
Square D, Powerpact, type HGA, 3PH, 3P, ABC phase connection, 125A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.
