Original: $499.99
-70%$499.99
$150.00The Story
Overview
Product Specifications - HGL36030 - Square D Powerpact Circuit Breaker
-
Part Number:
HGL36030 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
30 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HGL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V

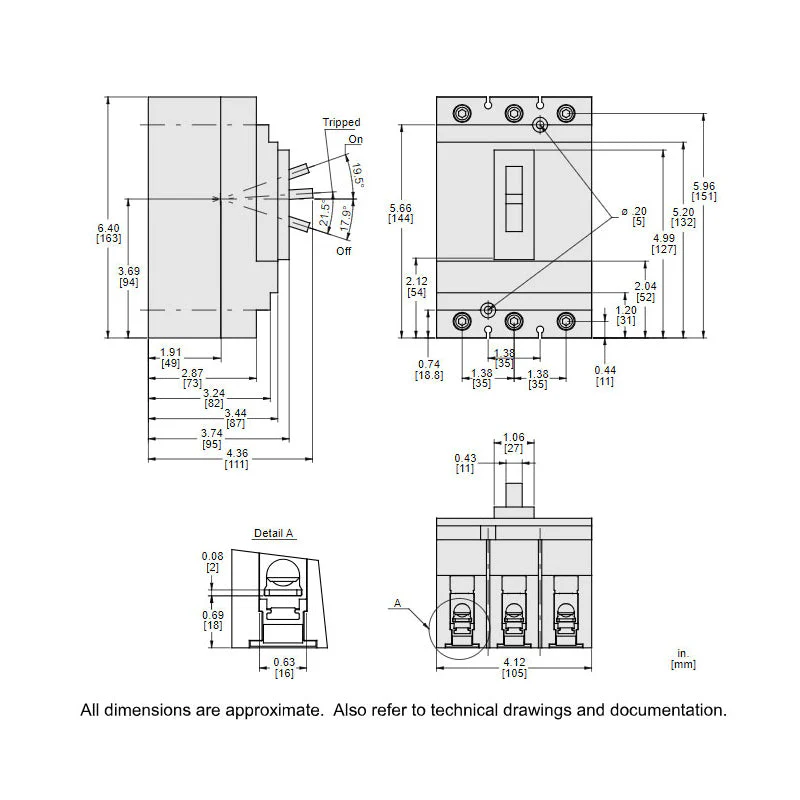

Dimensions
-
Dimensions (HxWxD):
6.4" x 4.12" x 4.36"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
30 A -
Mounting Mode:
Unit Mount Lug
-
Breaking Capacity Code
G -
Electrical Connection:
Lugs line / Lugs load -
Magnetic Hold Current:
350 A -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal

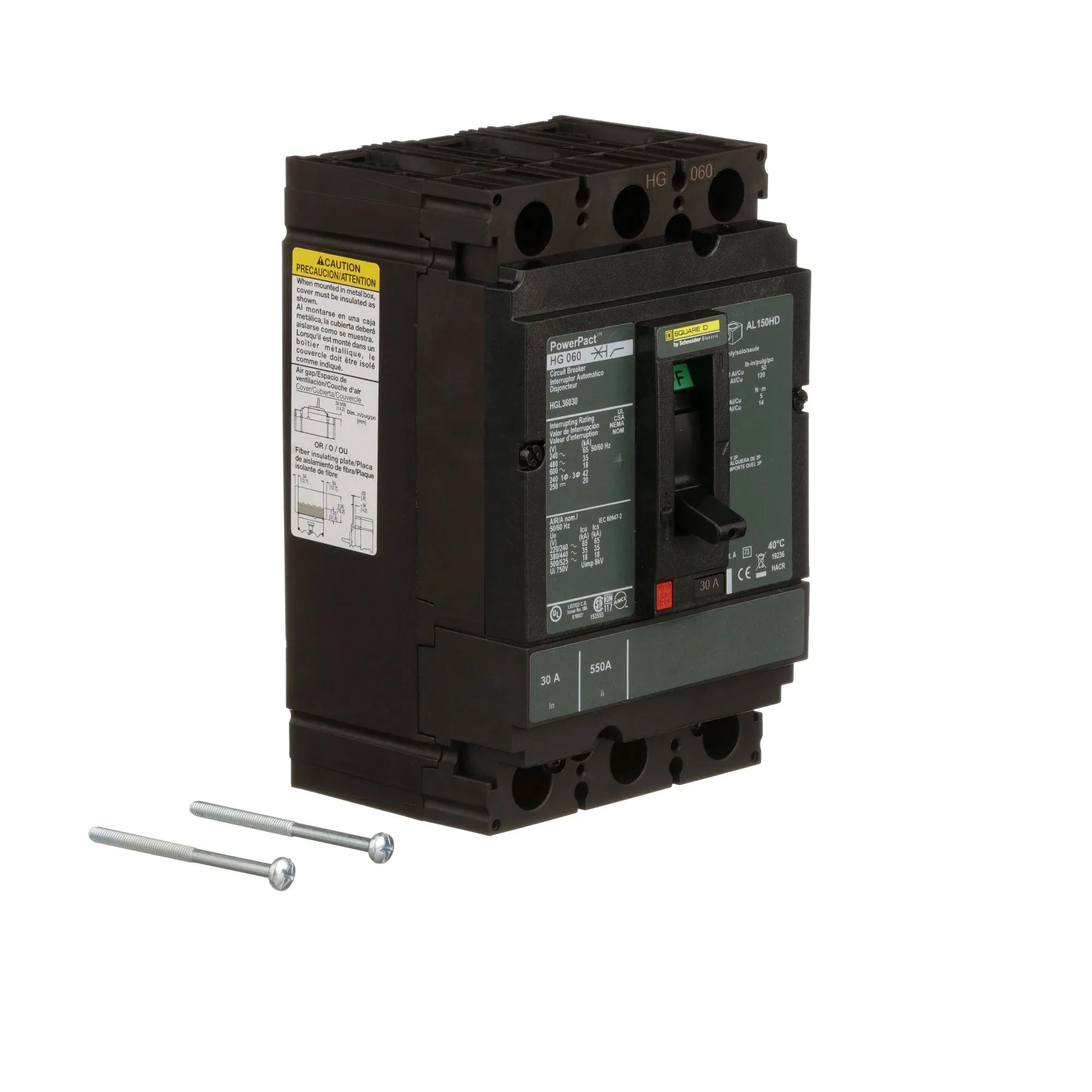

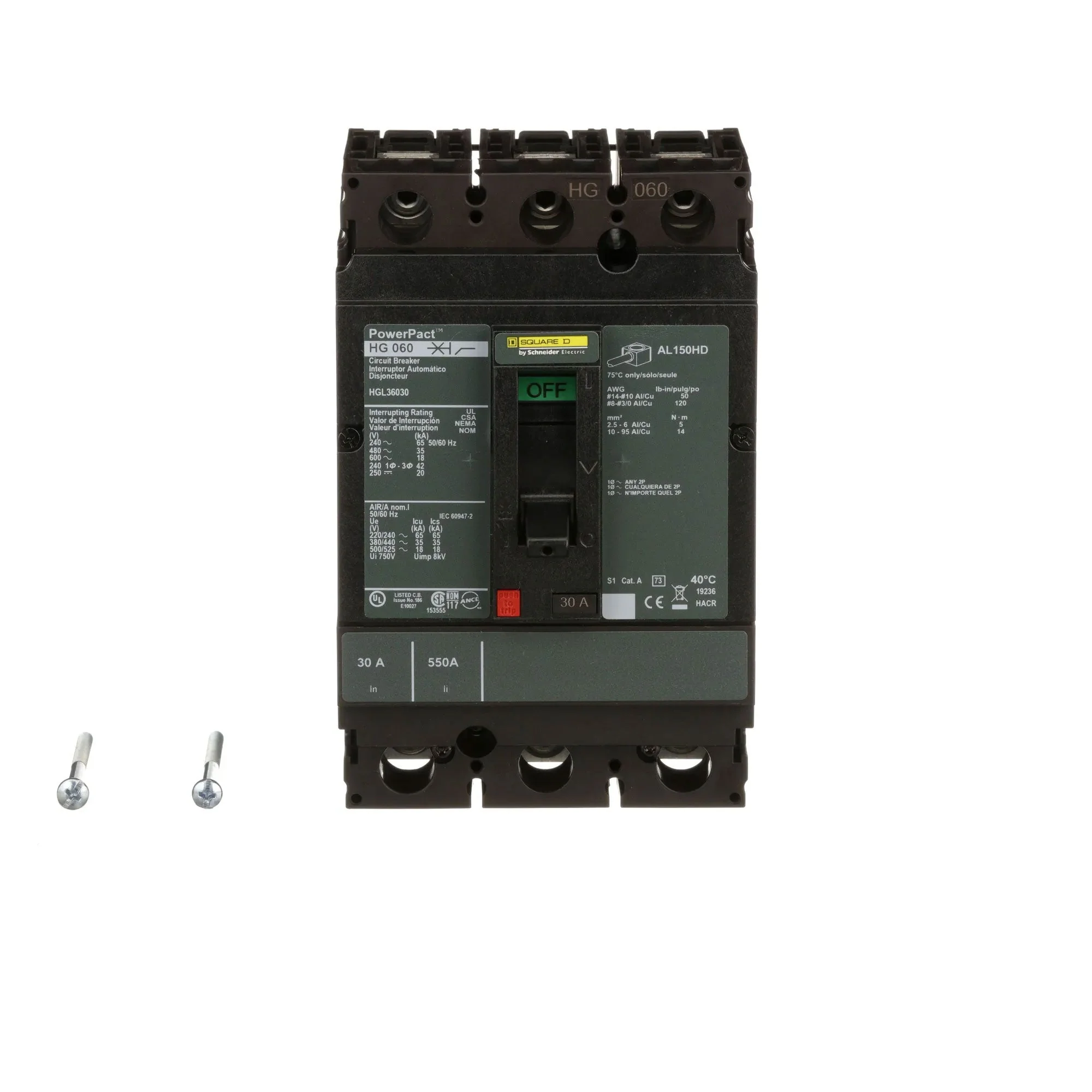

Product Description - HGL36030 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type HGL, 3P, 3PH, 30A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
