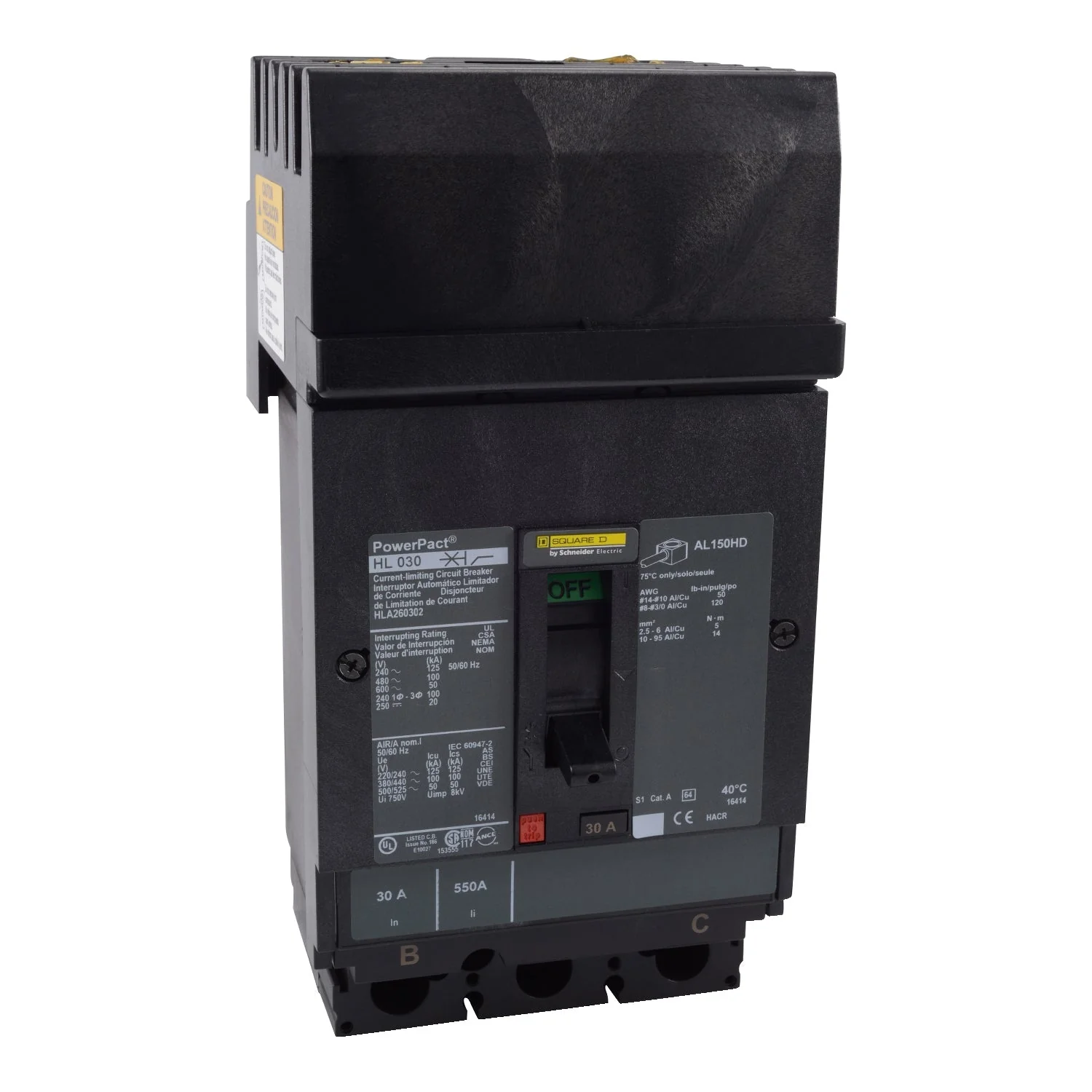

HLA260302 - Square D - Molded Case Circuit Breaker—
$513.99
The Story
Overview
Product Specifications - HLA260302 - Square D Molded Case Circuit Breakers
-
Part Number:
HLA260302 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
30 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
HLA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
6.42" x 4.09" x 3.39" -
Weight:
4.85 lbs
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
50 Amp -
Magnetic Hold Current:
350 A -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
G -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Standards
Product Description - HLA260302 - Square D Molded Case Circuit Breakers
Square D, Powerpact, type HLA, 1PH, 2P, A & C phase connection, 30A, 600V, 100kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic.
