The Story
Overview

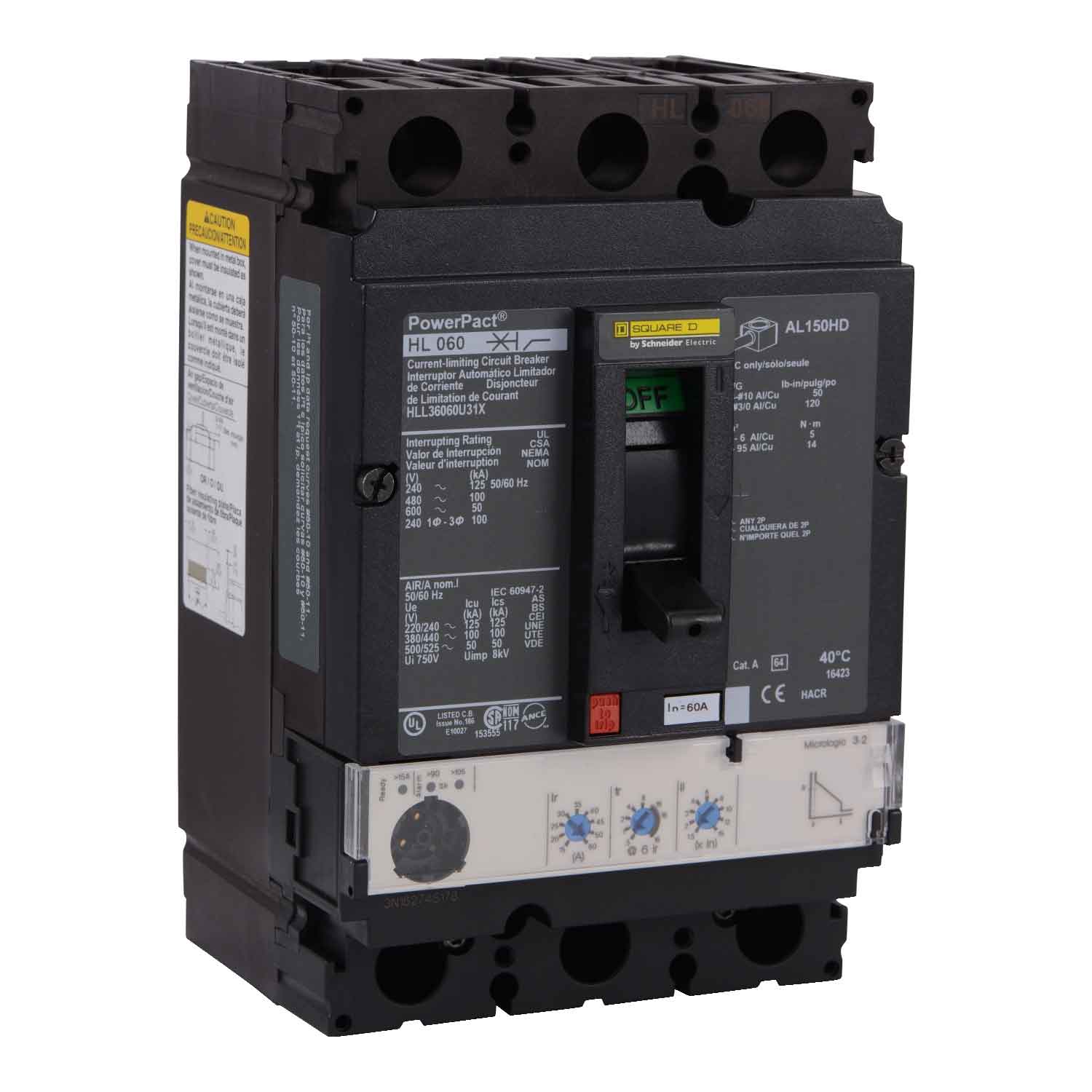

Product Specifications - HLL36060U31X Schneider Electric Molded Case Circuit Breaker
-
Part Number:
HLL36060U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
60 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HLL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HLL36060U31X Schneider Electric Molded Case Circuit Breaker
HLL36060U31X, Square D,Schneider Electric, Powerpact, type HLL, 3P, 3PH, 60A, 600V, 100kA@480V, current limiting, Feed-Thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers
