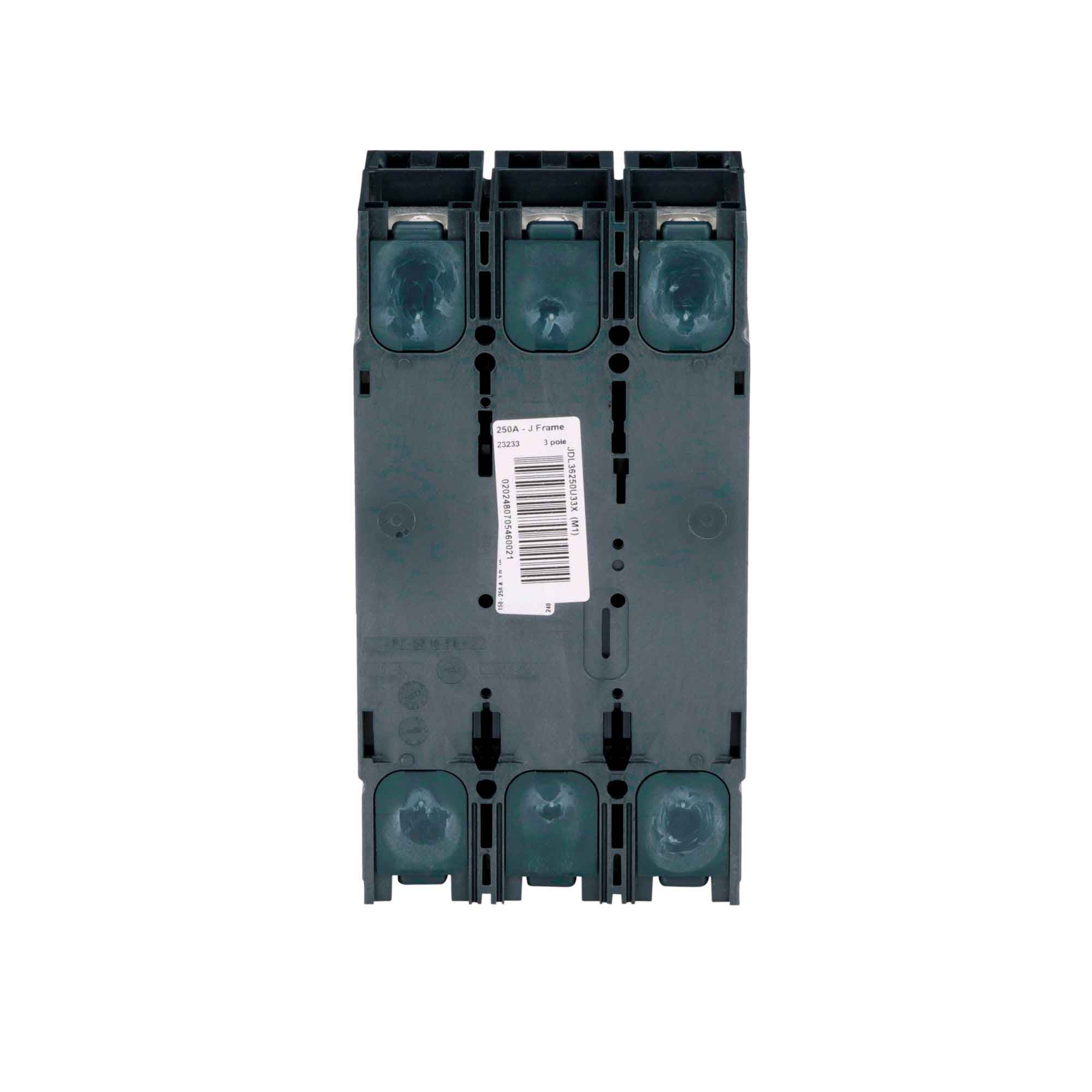

Product Specifications - JDL36250U53X - Square D Powerpact Circuit Breaker
-
Part Number:
JDL36250U53X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
JDL -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
18kA@480V

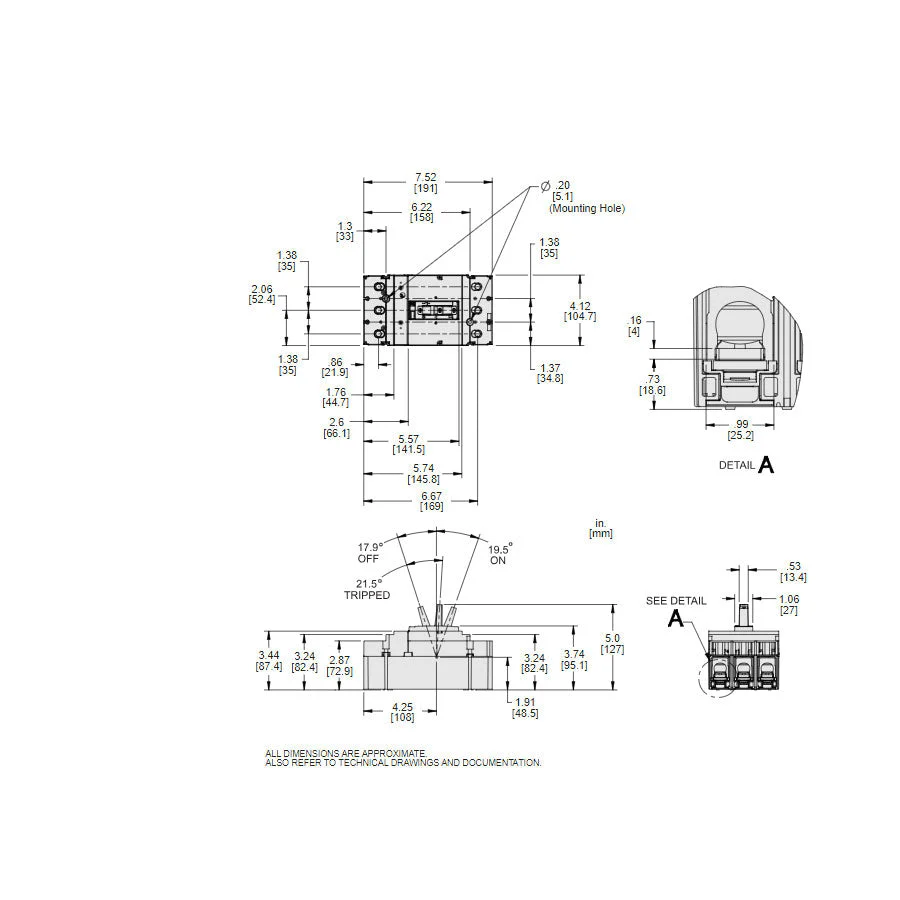

Dimensions
-
Dimensions (HxWxD):
7.52" x 4.09" x 3.29"
-
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Overload protection / Short-circuit protection -
Frame Type:
J-Frame -
Trip Unit Technology:
Electronic, energy, Micrologic 5.2 E, LSI -
Line Rated Current:
250 Amp -
Mounting Mode:
Unit Mount Lug
-
Breaking Capacity Code:
D -
Electrical Connection:
Lug line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle
Product Description - JDL36250U53X - Square D Powerpact Circuit Breaker
Square D,Schneider Electric, Powerpact, type JDL, 3P, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with micrologic energy non-interchangeable trip with LSI, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state.
