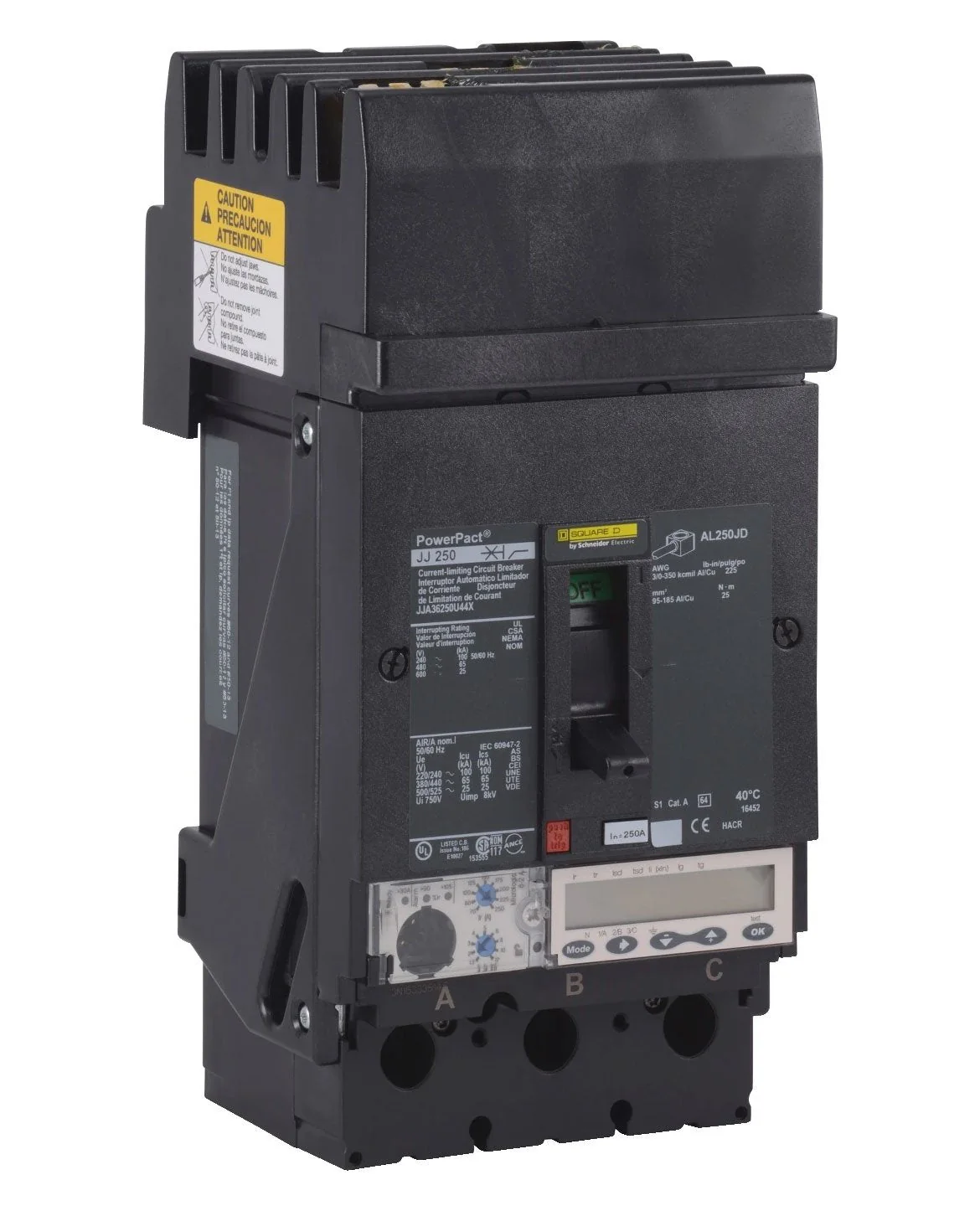

Product Specifications - JJA36250U44X - Square D Molded Case Circuit Breakers
-
Part Number:
JJA36250U44X -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
JJA -
Functions:
LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
7.52" x 4.09" x 3.39"
-
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Short-Circuit / Overload -
Trip Unit Technology:
Electronic, ammeter, MicroLogic 6.2 A, LSIG -
Line Rated Current:
250 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
J -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Description - JJA36250U44X - Square D Molded Case Circuit Breakers
Square D, Powerpact, type JJA, 3P, ABC phase connection, 3PH, 250A, 600V, 25KA@600V, 65kA@480V, 100KA@240V, current limiting, i-line style plug-in, UL listed, suitable for reverse connection, complete with micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, solid state electronic, molded case circuit breakers
