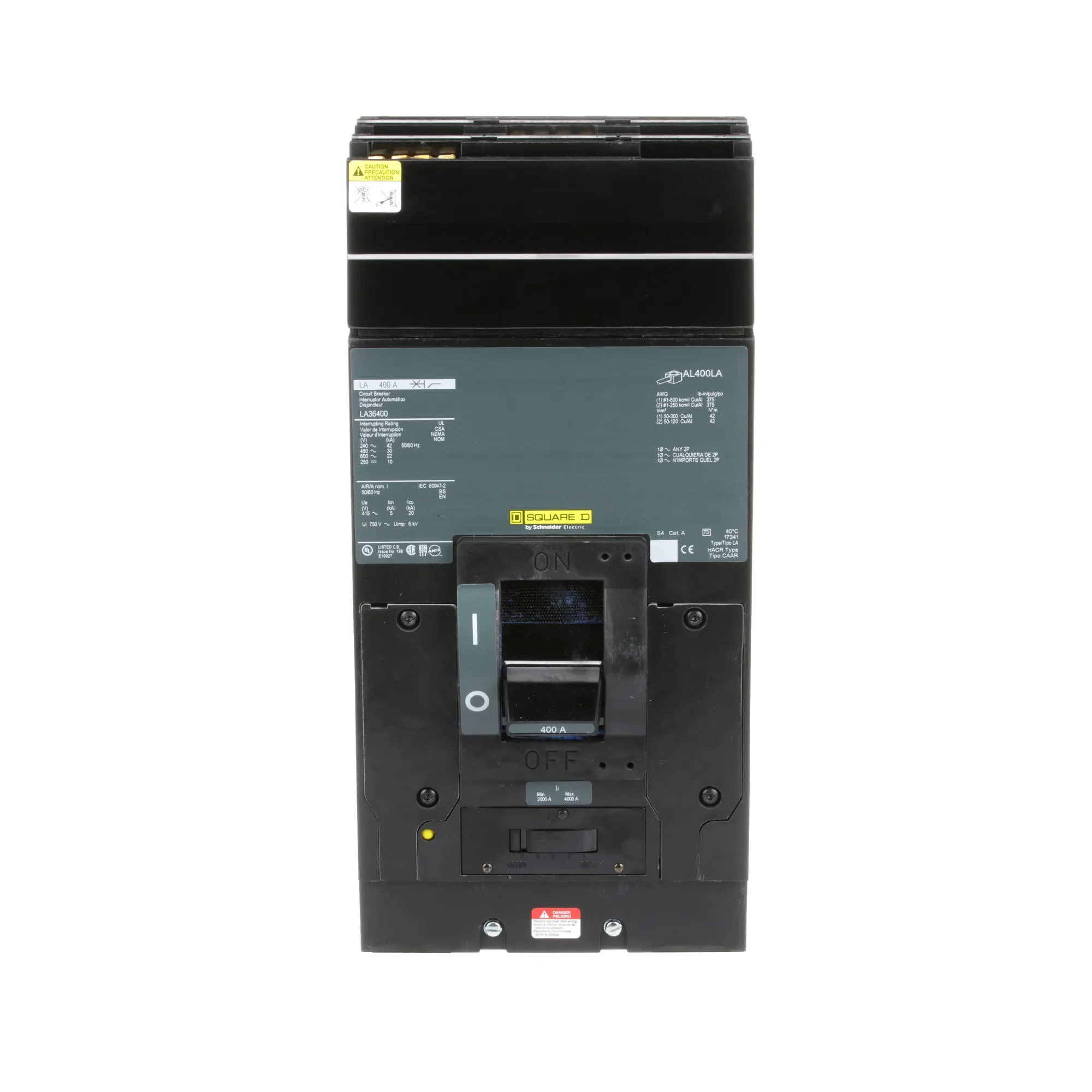

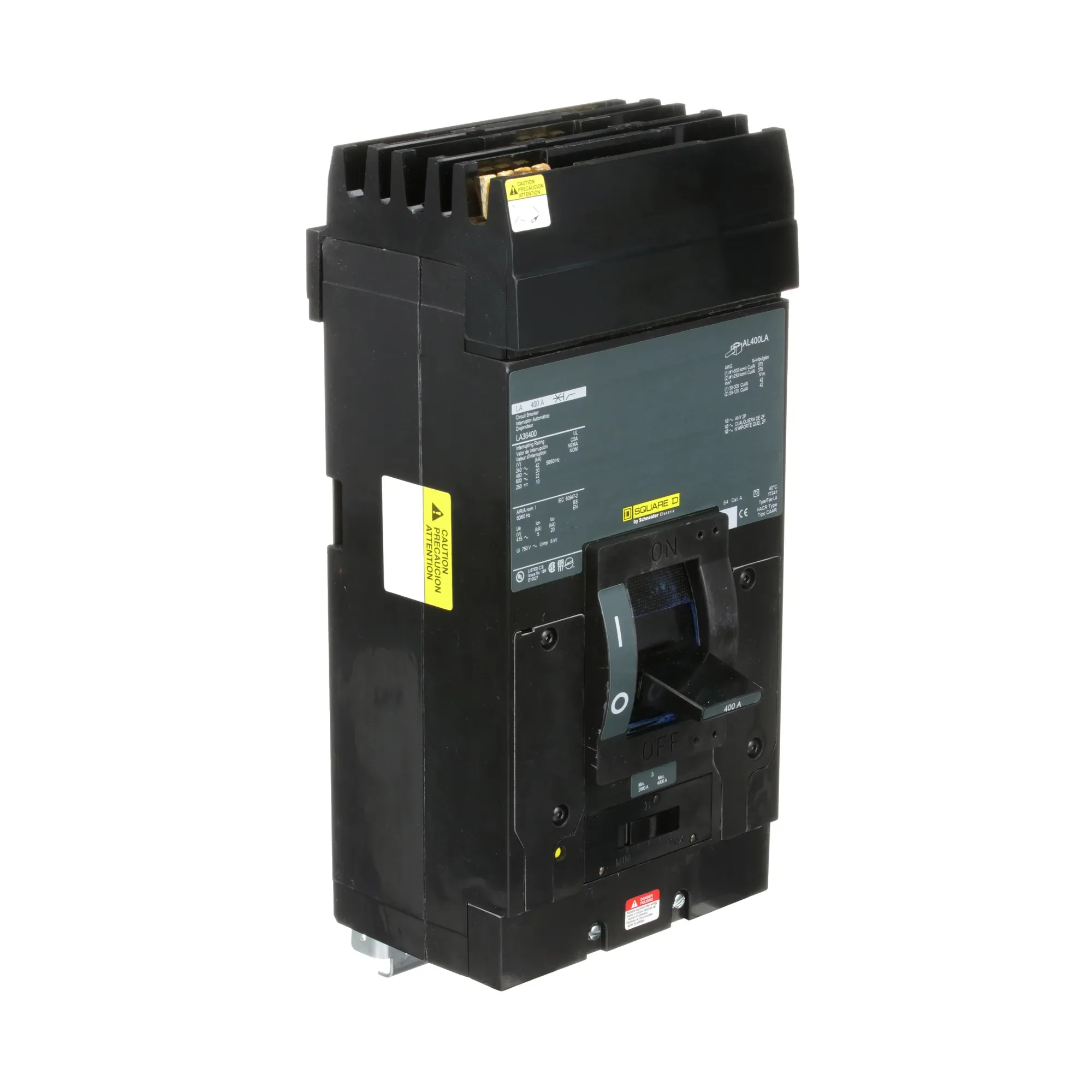

Product Specifications - LA36400 - Square D Powerpact Circuit Breaker
-
Part Number:
LA36400 -
Manufacturer:
-
Family:
I-Line -
Pole:
3 -
Amp
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
LA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
30kA@480V
Dimensions
-
Dimensions (HxWxD):
11" x 6" x 5.84" -
Weight:
18.90 lbs
Standards
Additional Details
-
Frame Type:
J-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
400 Amp -
Mounting Mode:
I-Line
-
Breaking Capacity Code:
A -
Electrical Connection:
I-Line connection line / Lugs load -
Magnetic Hold Current:
2000 Amp
Product Description - LA36400 - Square D Powerpact Circuit Breaker
Square D, I-Line, type LA, 3P, ABC phase circuit configuration, 3PH, 400A, 600V, 30kA@480V, standard interrupting capacity, i-line style plug-in, complete with LI - Long-Time and Instantaneous trip functions, thermal magnetic molded case circuit breakers.
