✨ New Arrivals Just Dropped!Explore
Select Condition
From $3,369.99

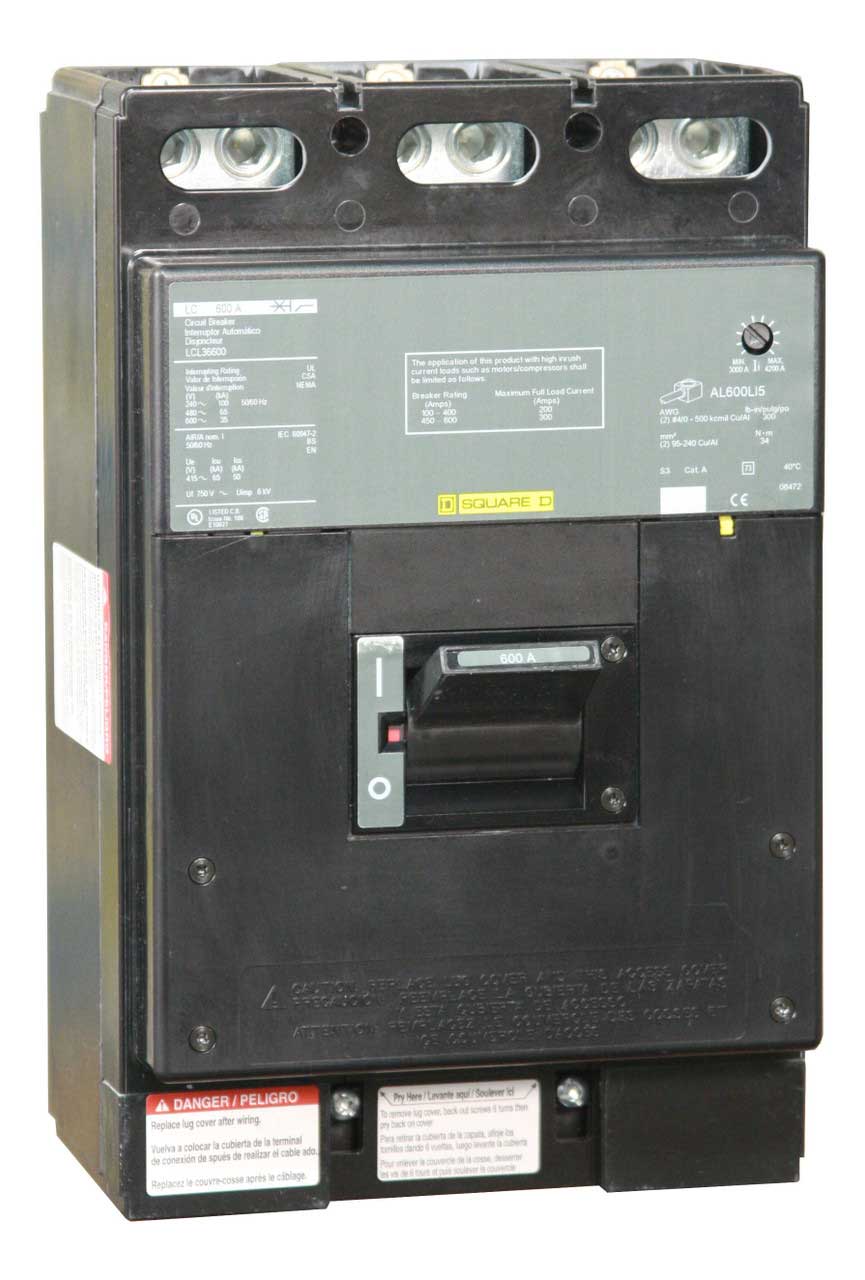

LCL36500 - Square D - Molded Case Circuit Breaker—
$3,369.99
The Story
Overview
Product Specifications - LCL36500 - Square D Powerpact Circuit Breaker
-
Part Number:
LCL36500 -
Manufacturer:
-
Family:
I-Line -
Pole:
3 -
Amp
500 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed Thru -
Type:
LCL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
Frame Type:
L Frame -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
11.86" x 7.5" x 6.74"
Standards
Product Description - LCL36500 - Square D Powerpact Circuit Breaker
Square D, LCL Series, type LCL, 3P, 3PH, 500A, 600V, 65kA@480V, extra high interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
