Overview

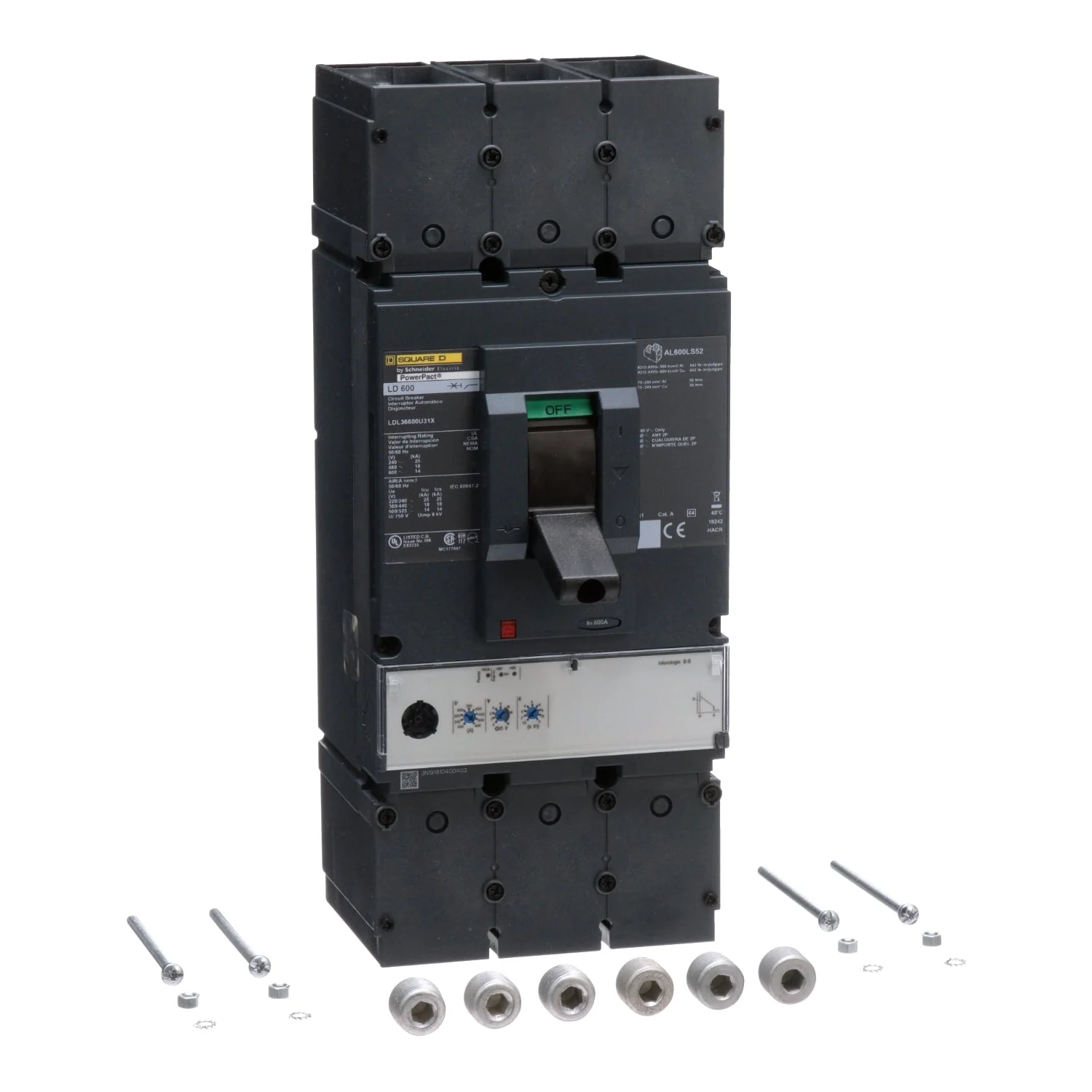

Product Specifications - LDL36600U31X - Square D Molded Case Circuit Breakers
-
Part Number:
LDL36600U31X -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
LDL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
13.39" x 5.51" x 4.33"
-
Weight:
13.67 lbs
Standards
Additional Details
-
Trip Unit Technology:
Electronic, standard, MicroLogic 3.3, LI -
Line Rated Current:
600 Amp -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code
D -
Electrical Connection:
Lugs line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Product Description - LDL36600U31X - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type LDL, 3P, 3PH, 600A, 600V, 14kA@600V, 18kA@480V, 25kA@240V, UL listed, standard interrupting capacity, feed-thru, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers
