$1,283.70The Story
Overview

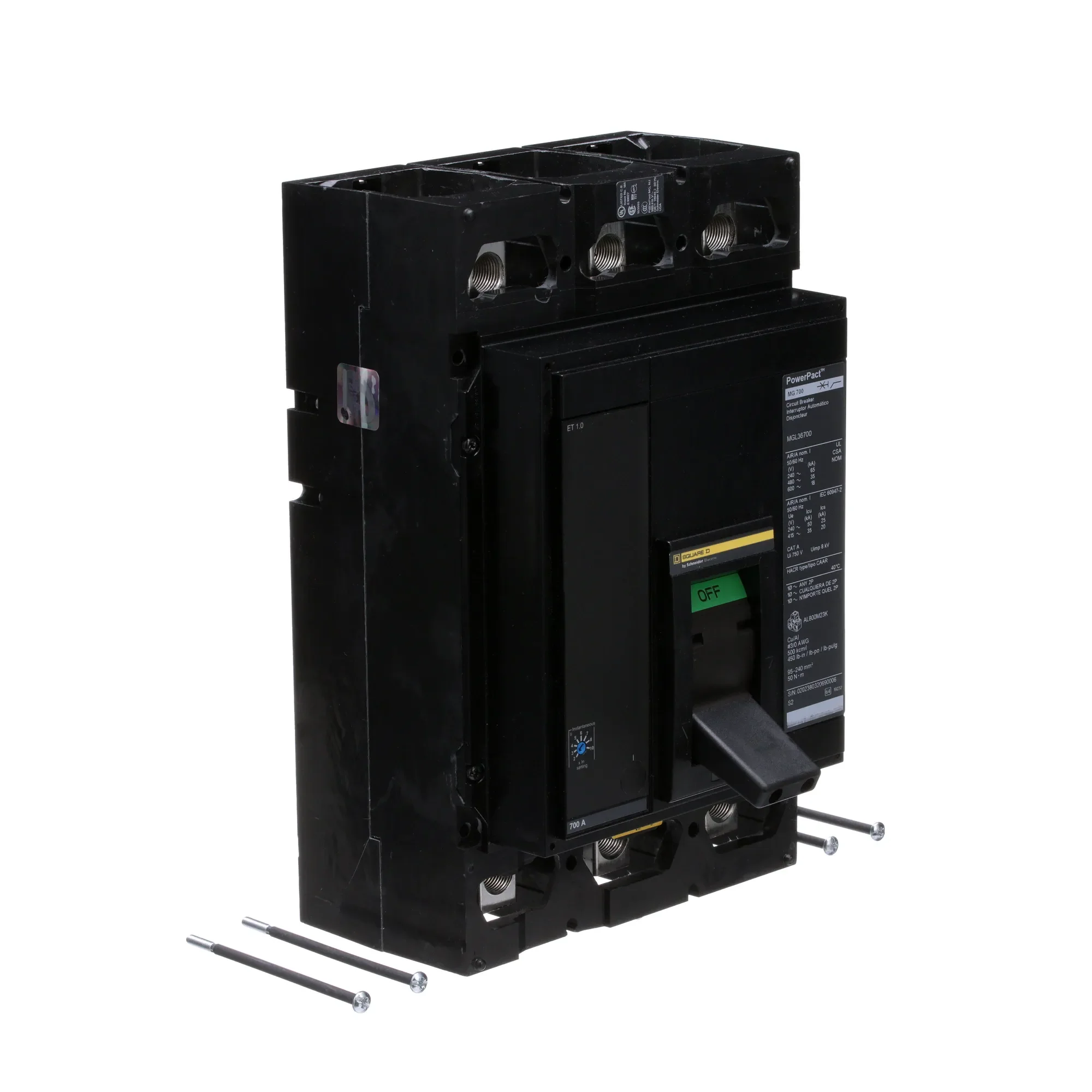

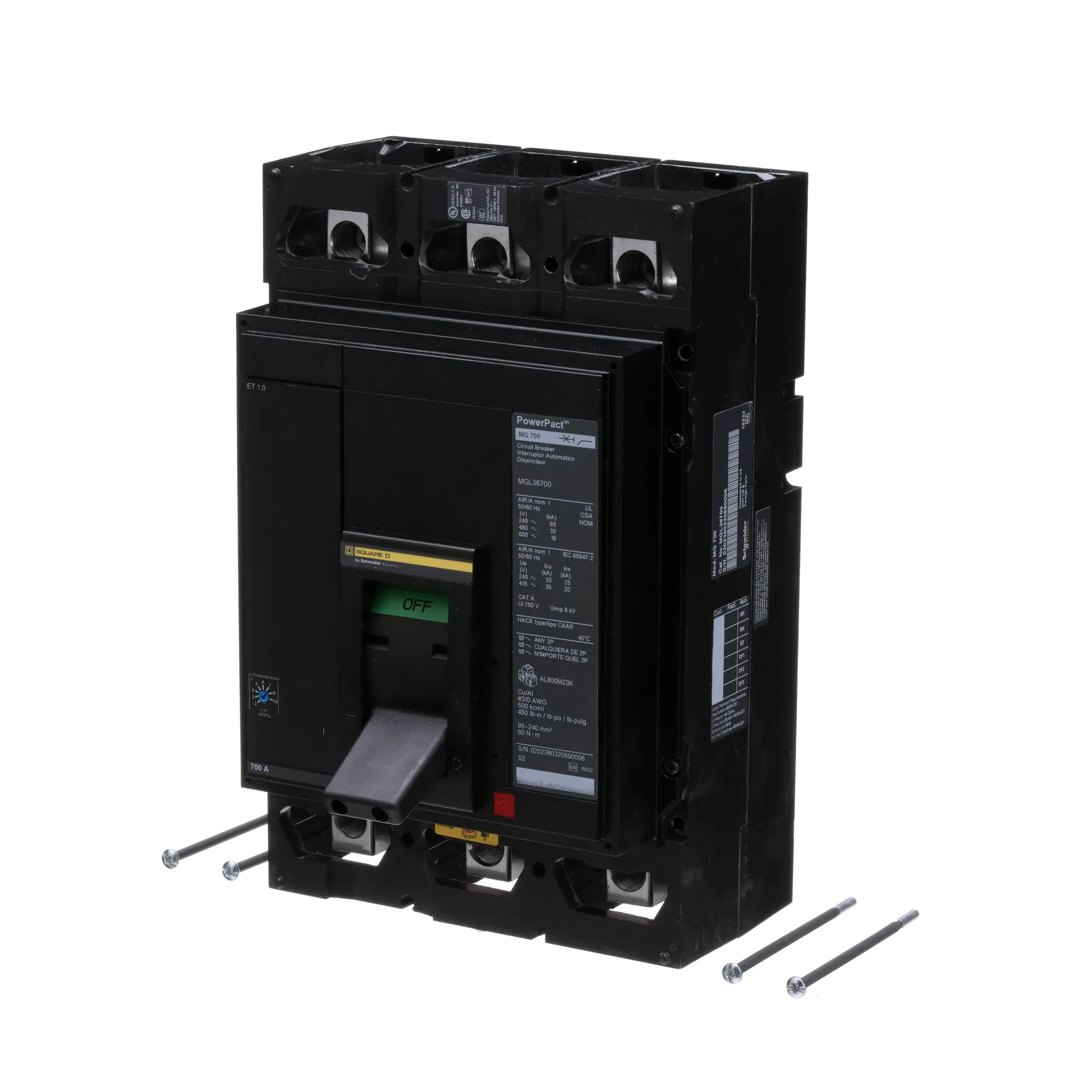

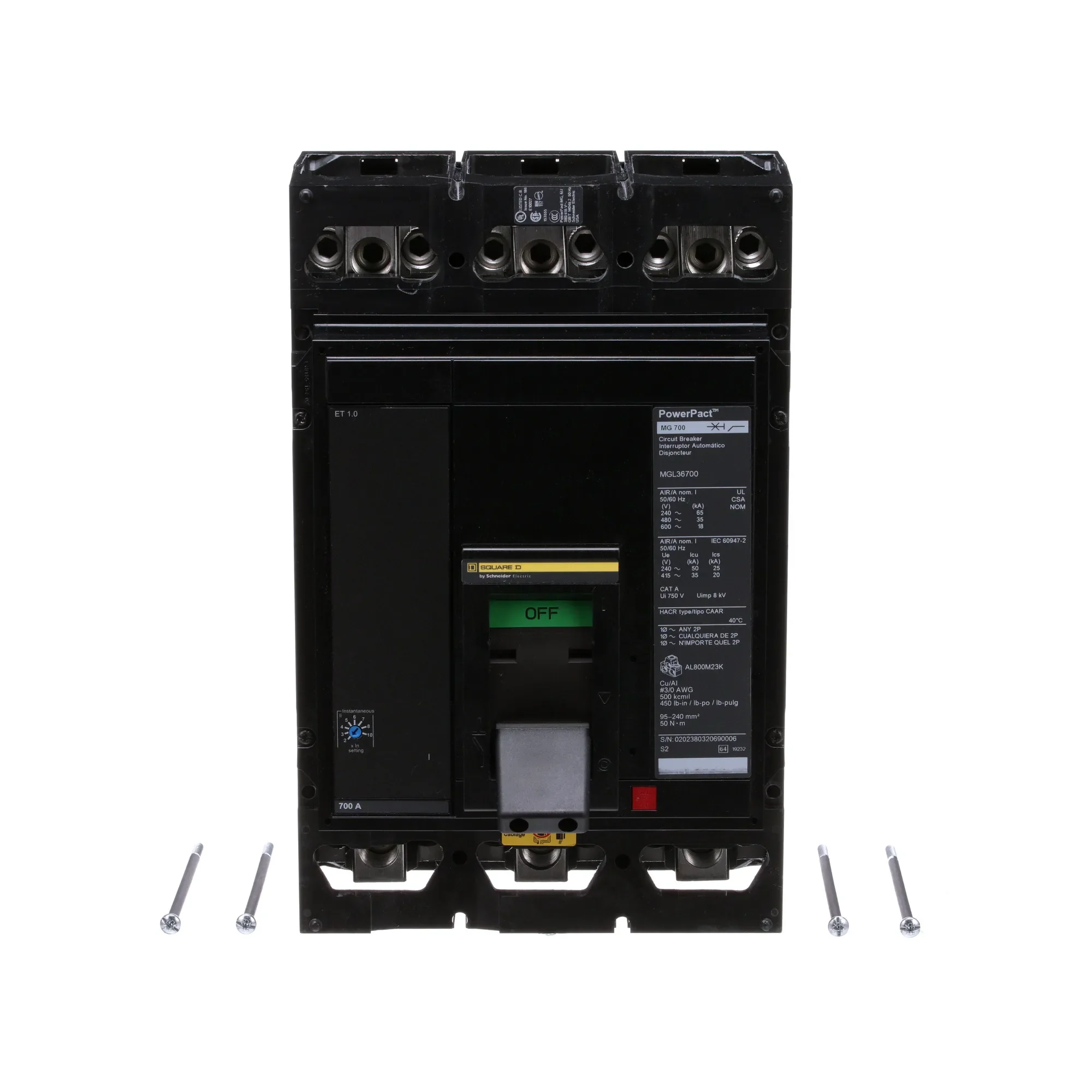

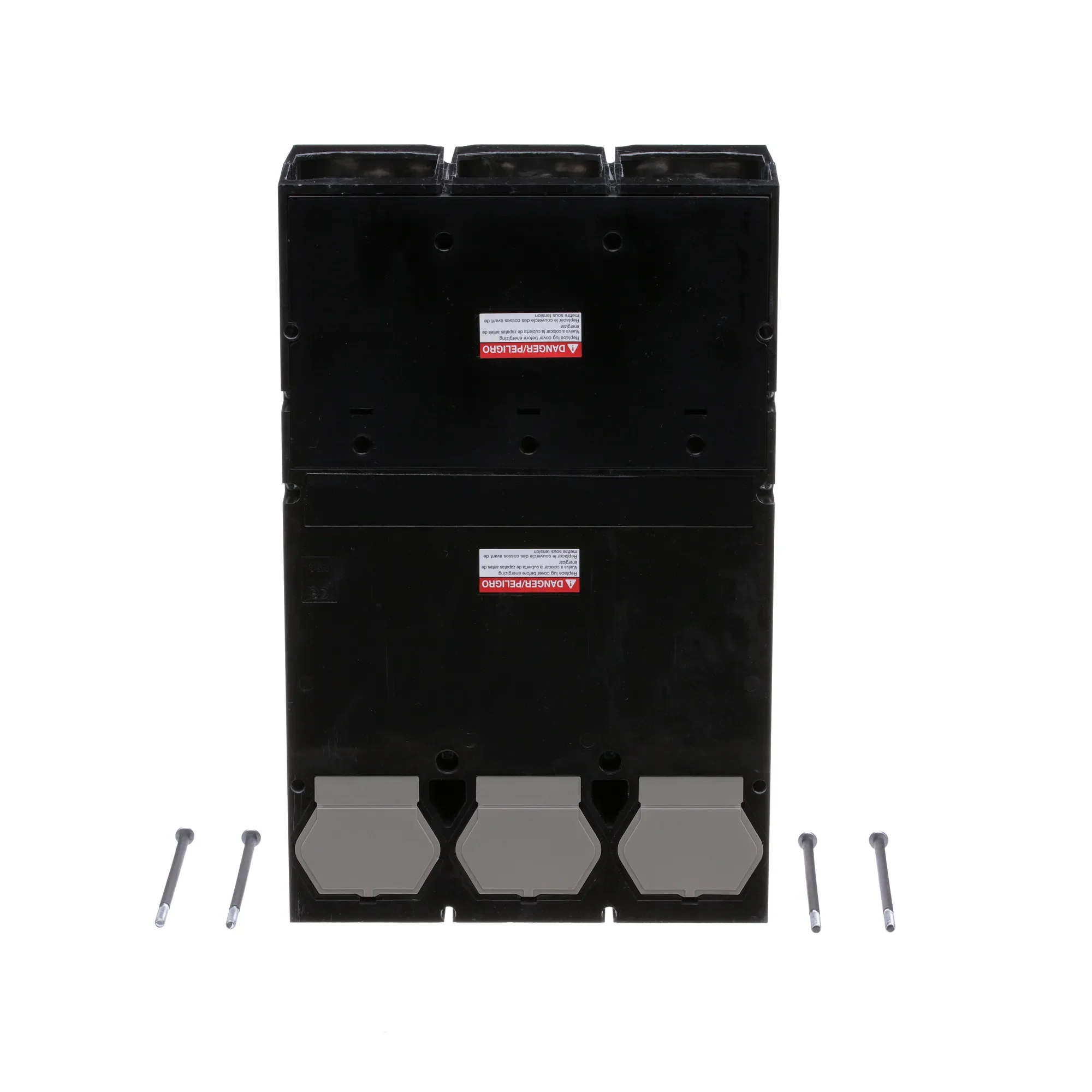

Product Specifications - MGL36700 - Square D Powerpact Circuit Breaker
-
Part Number:
MGL36700 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
700 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
MGL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
12.86" x 0.32" x 8.27" -
Weight:
29 lbs
Standards
Additional Details
-
Frame Type:
M-Frame -
Trip Unit Technology:
Electronic, basic, ET 1.0, -
Line Rated Current:
700 Amp -
Mounting Mode:
Unit Mount Lug
-
Breaking Capacity Code:
G -
Electrical Connection:
Lugs line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Operating Handle -
AWG Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Product Description - MGL36700 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type MGL, 3P, 3PH, 700A, 600V, 35kA@480V, UL listed, high interrupting capacity, feed-thru, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.
