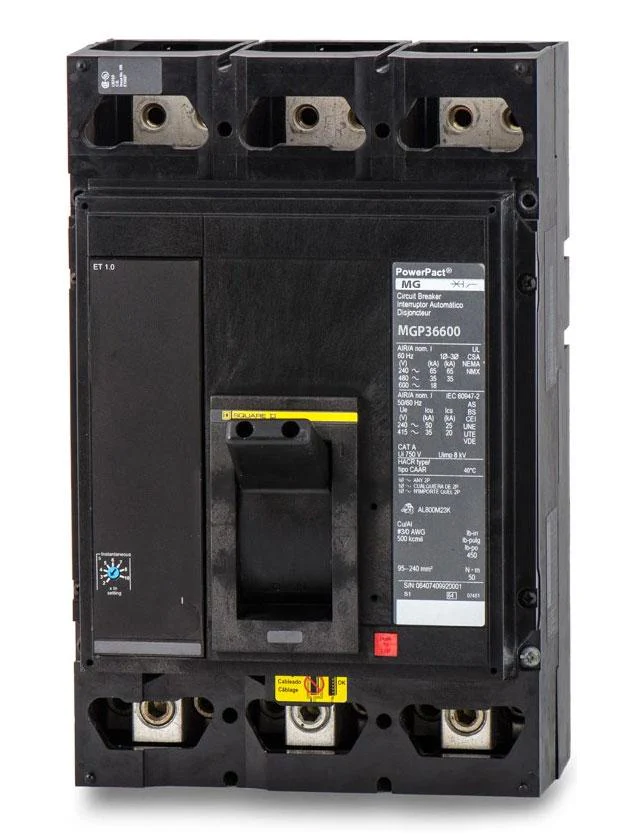

MGP36600 - Square D - Molded Case Circuit Breaker—
$3,098.99
The Story
Overview
Product Specifications - MGP36600 - Square D Molded Case Circuit Breakers
-
Part Number:
MGP36600 -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
MGP -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
12.86" x 8.27" x 8.05"
-
Weight:
29 lbs
Standards
Additional Details
-
Trip Unit Technology:
Electronic, basic, ET 1.0 -
Line Rated Current:
600 Amp -
Maximum Operating Voltage:
600V AC -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code
G -
Electrical Connection:
Terminal nut line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Operating handle -
AWG Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Product Description - MGP36600 - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type MGP, 3P, 3PH, 600A, 600V, 18kA@600V, 35kA@480V, 65kA@240V, UL listed, high interrupting capacity, bolt-on, load side lugs, solid state electronic, molded case circuit breakers
