Original: $4,666.99
-70%$4,666.99
$1,400.10The Story
Overview
Product Specifications - MJA36300 - Square D Powerpact Circuit Breaker
-
Part Number:
MJA36300 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
300 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
MJA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V

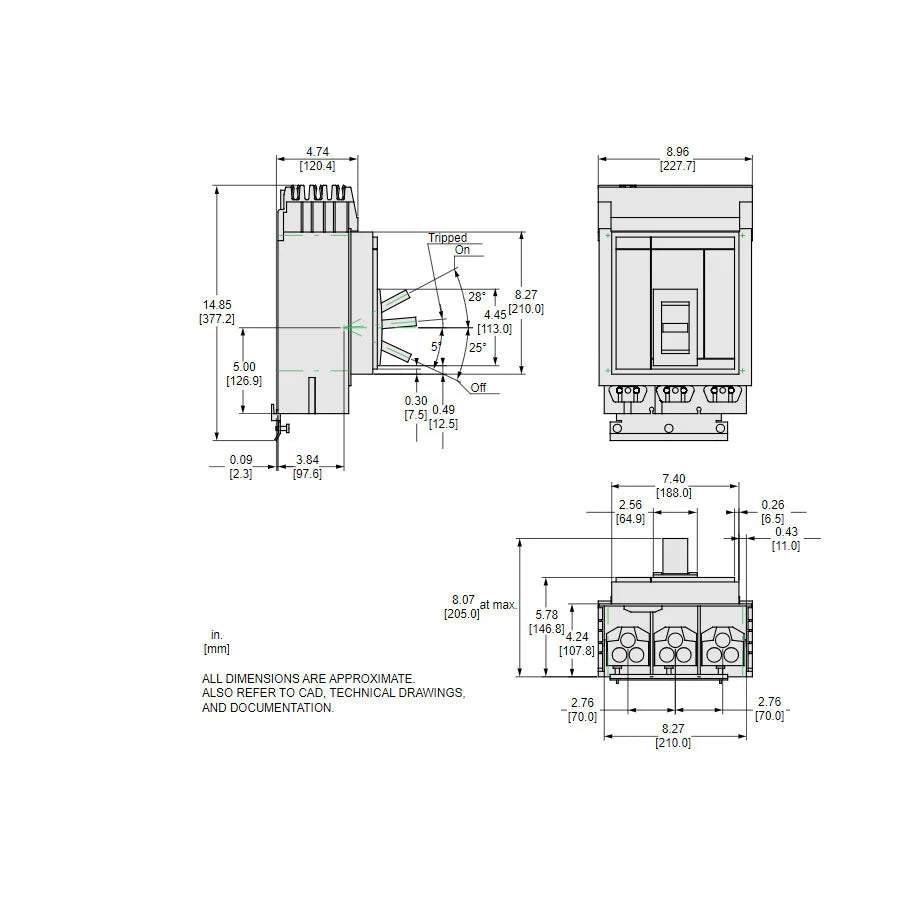

Dimensions
-
Dimensions (HxWxD):
12.86" x 0.32" x 8.27" -
Weight:
29 lbs
Standards
Additional Details
-
FrameType:
M Frame -
Trip Unit Technology:
Electronic, basic, ET 1.0 -
Line Rated Current:
300 -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
J -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil Aluminum/Copper Terminals
Product Description - MJA36300 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type MJA, 3P, ABC phase circuit configuration, 3PH, 300A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, solid state electronic, molded case circuit breakers.
