Original: $3,683.99
-70%$3,683.99
$1,105.20The Story
Overview

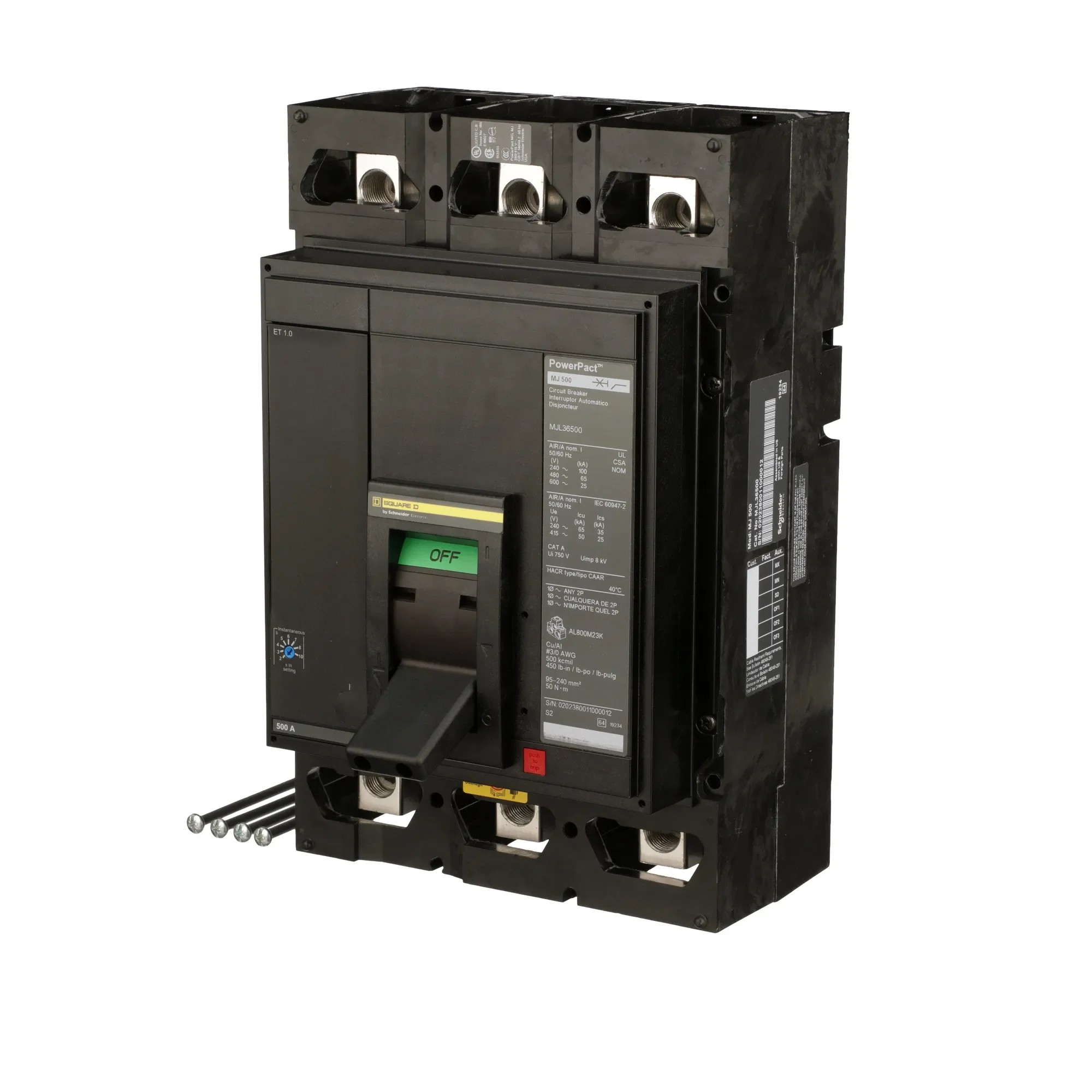

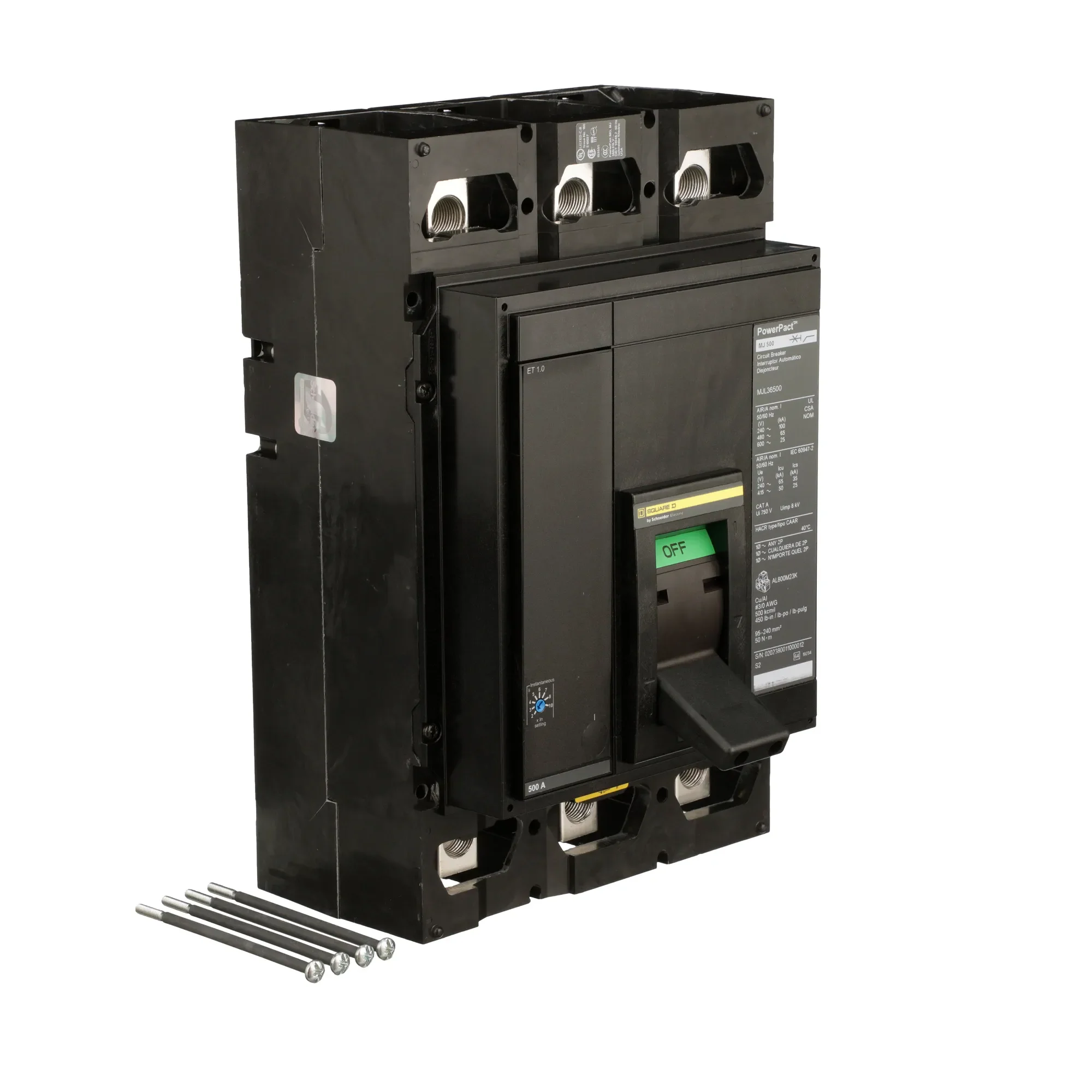

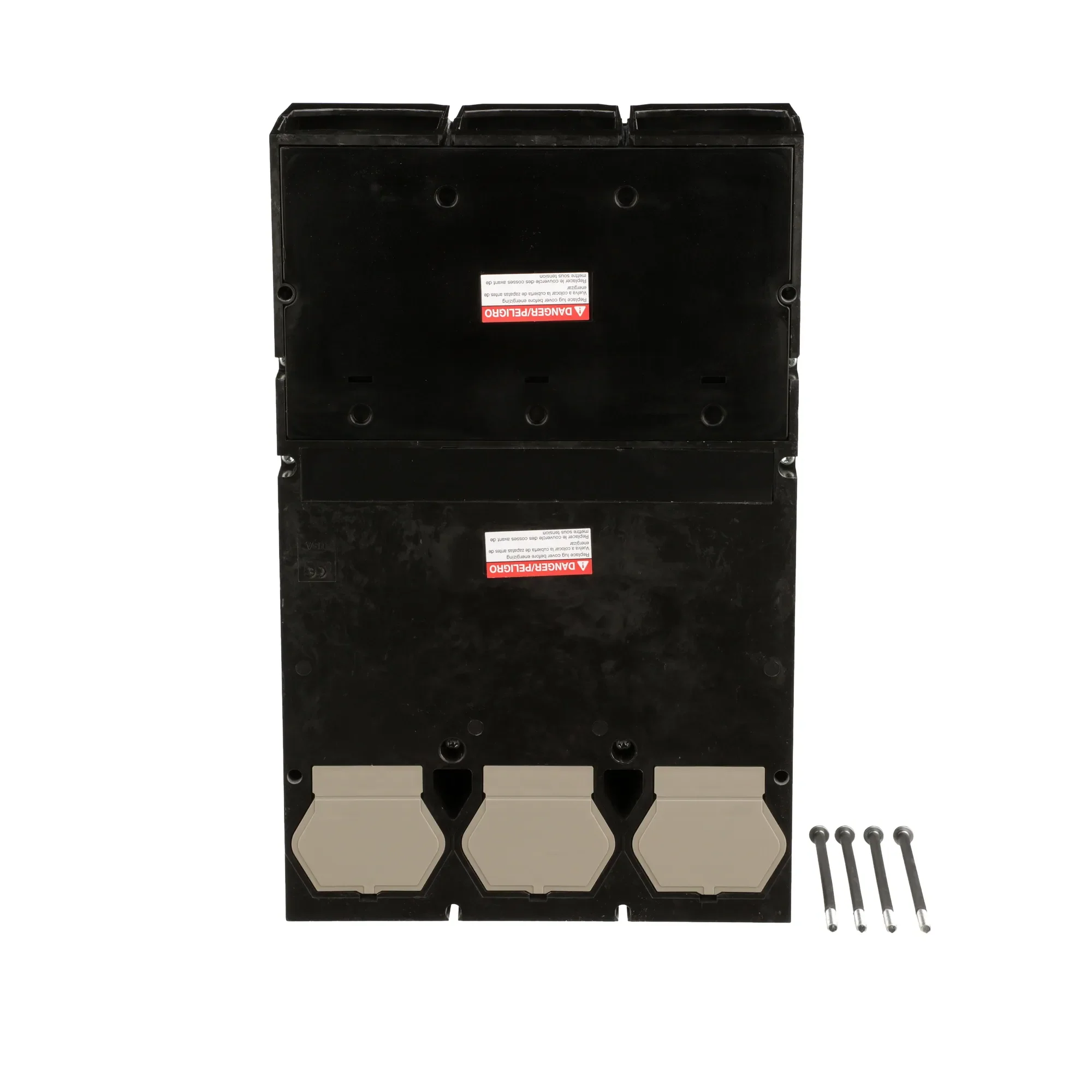

Product Specifications - MJL36500 - Square D Powerpact Circuit Breaker
-
Part Number:
MJL36500 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
500 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
MJL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
12.86" x 0.32" x 8.27" -
Weight:
29 lbs
Standards
Additional Details
-
FrameType:
M Frame -
Trip Unit Technology:
Electronic, basic, ET 1.0 -
Line Rated Current:
500 -
Mounting Mode:
Unit Mount Lug
-
Breaking Capacity Code
J -
Electrical Connection:
Lugs line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Product Description - MJL36500 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type MJL, 3P, 3PH, 500A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.
Documentation
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
