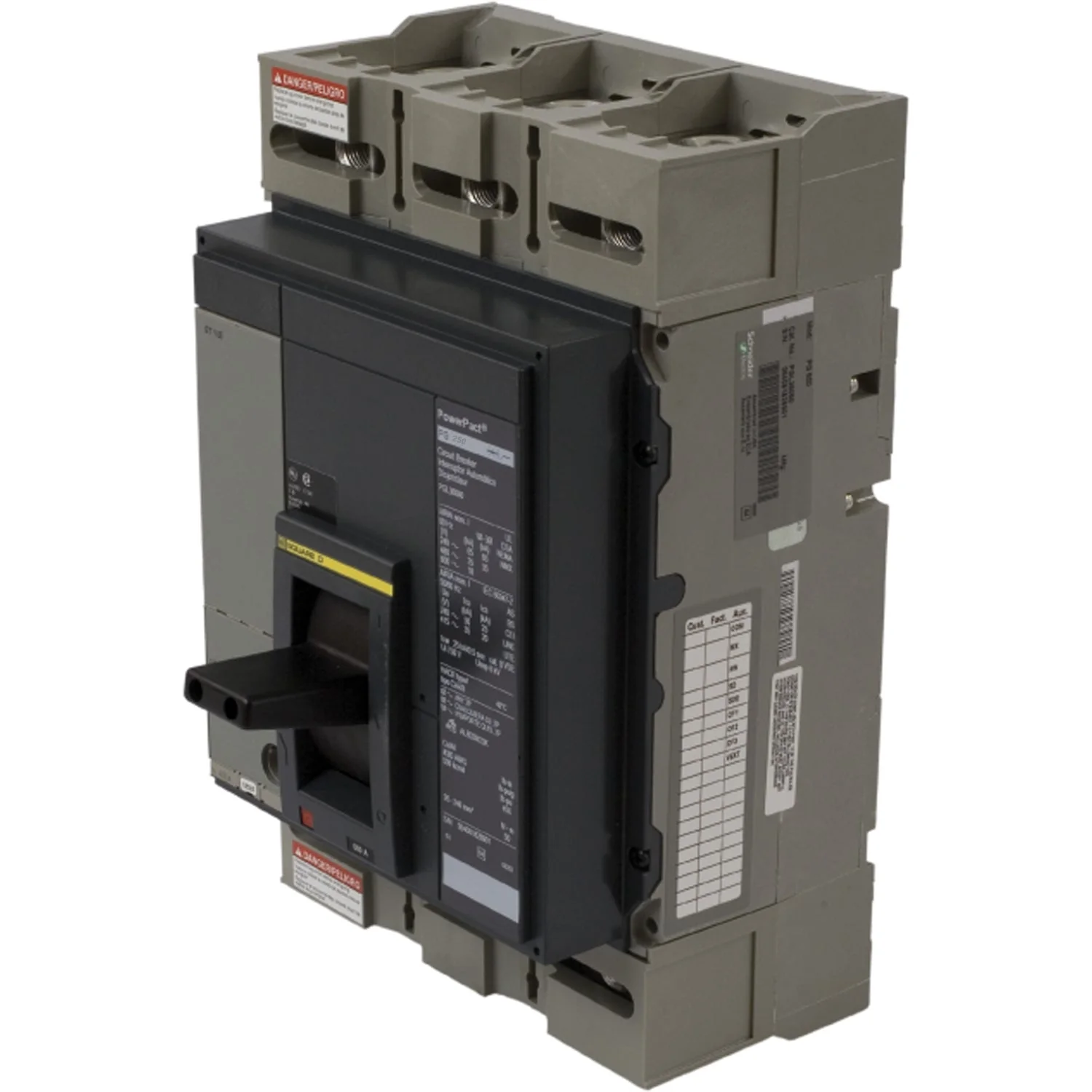

-70%PGL36025U31A - Square D - Molded Case Circuit Breaker—
$4,856.99
$1,457.10The Story
Overview
Product Specifications - PGL36025U31A - Square D Powerpact Circuit Breaker
-
Part Number:
PGL36025U31A -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed Thru -
Type:
PGL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
12.86" x 8.27" x 8.05" -
Weight:
32 lbs
Standards
Â
Product Description - PGL36025U31A - Square D Powerpact Circuit Breaker
Schneider Electric,Square D, Powerpact, type PGL, 3P, 3PH, 250A, 600V, 35kA@480V, UL listed, standard interrupting capacity, feed-thru, complete with micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic.
