Original: $7,259.99
-70%$7,259.99
$2,178.00The Story
Overview

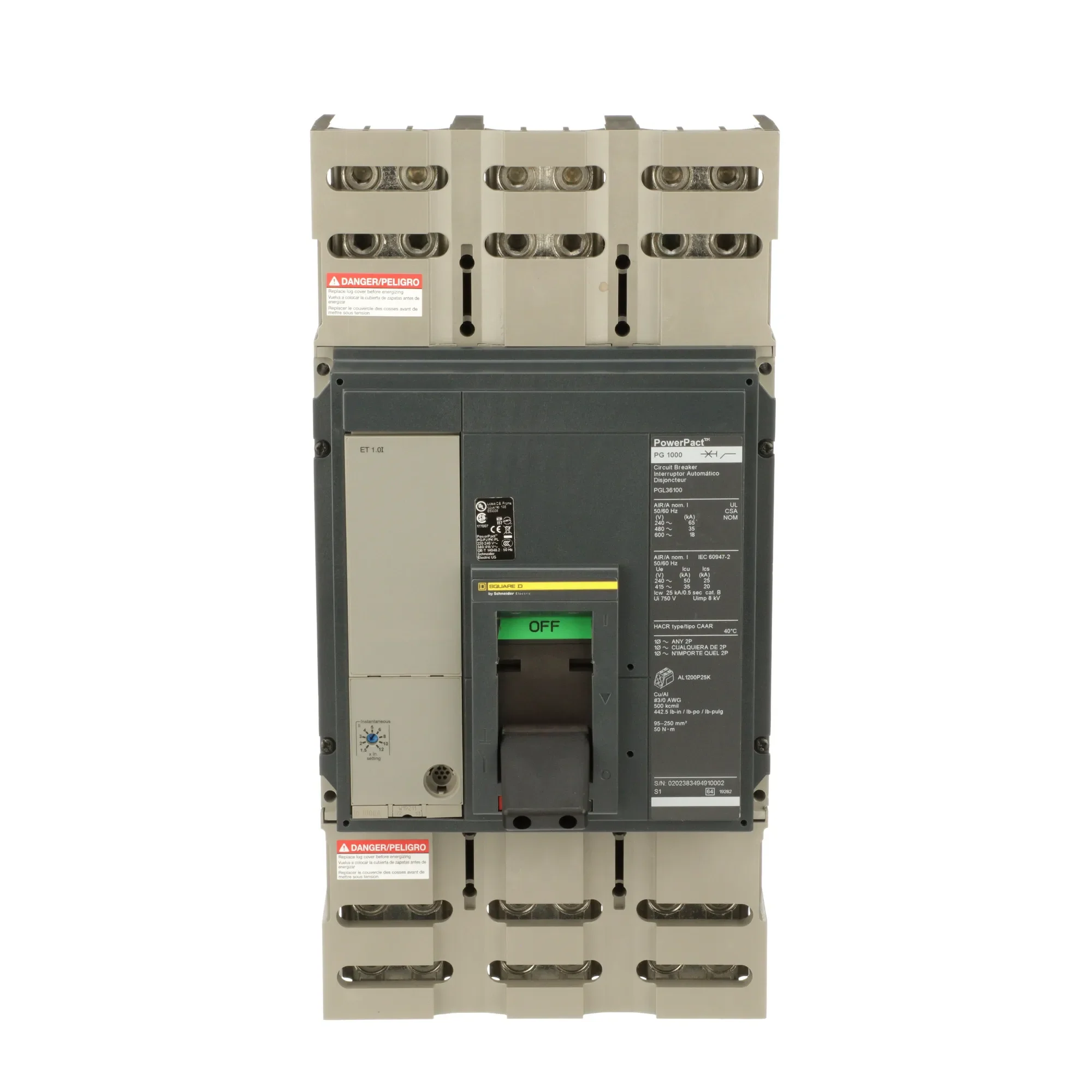

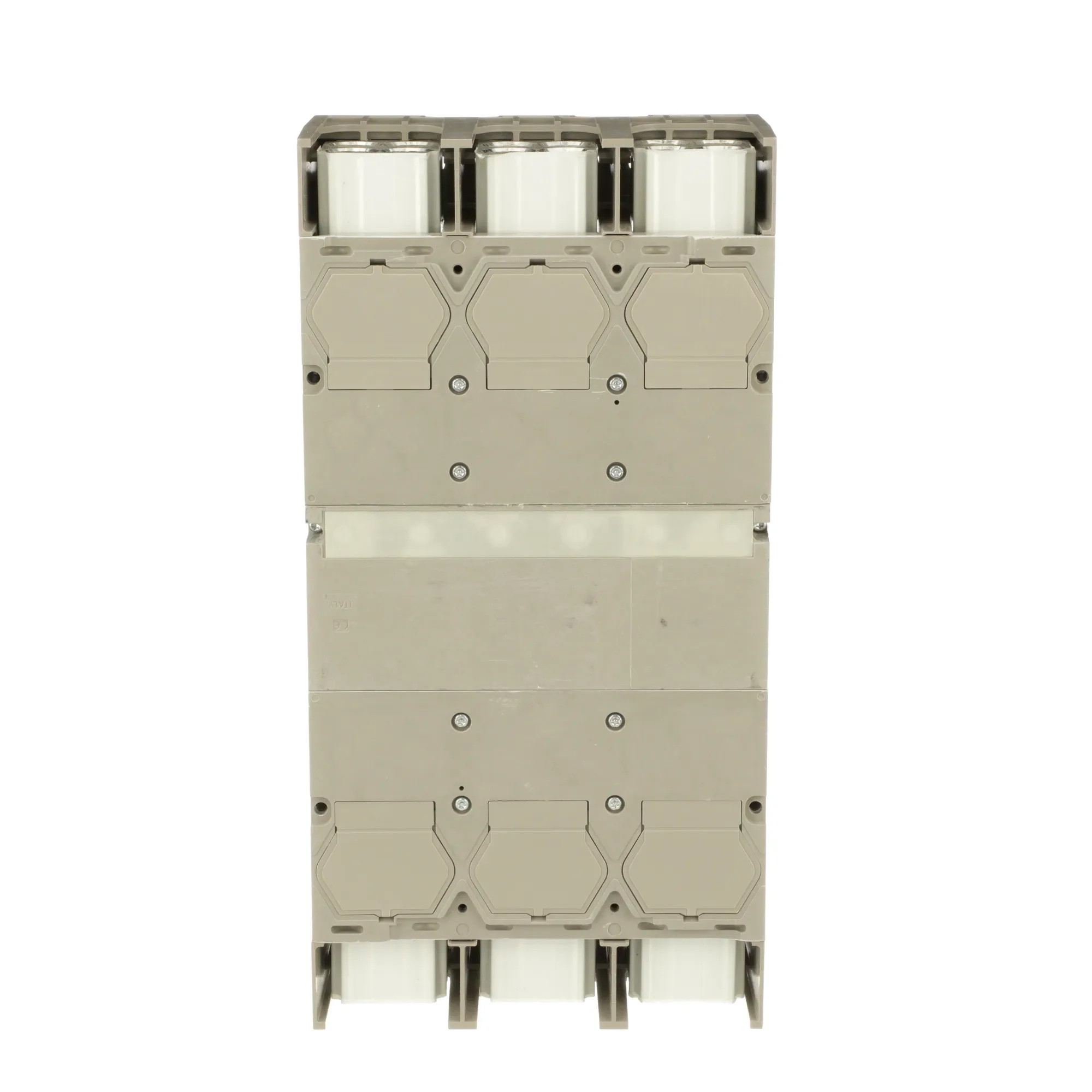

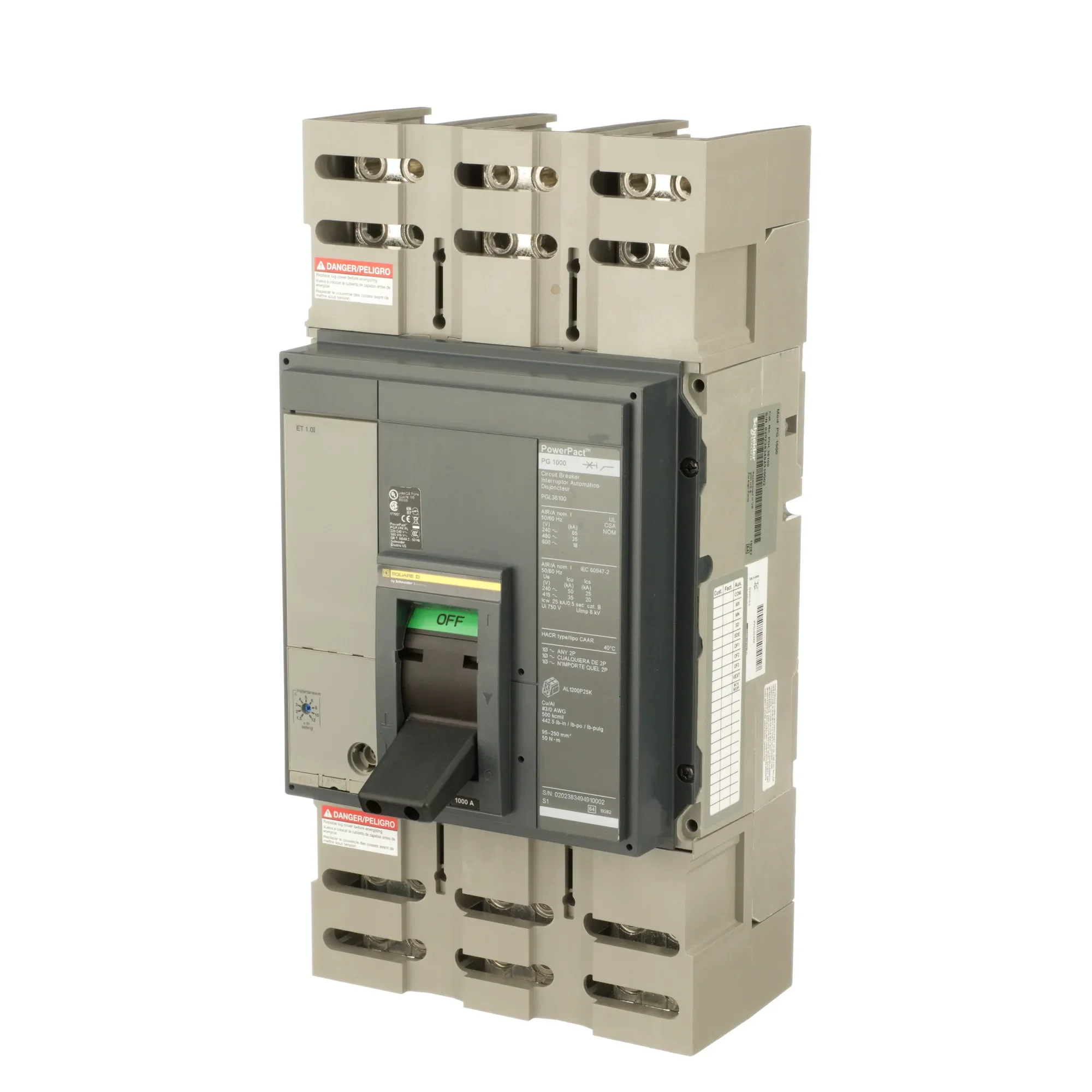

Product Specifications - PGL36100 - Square D Powerpact Circuit Breaker
-
Part Number:
PGL36100 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
1000 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
PGL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
12.87" x 8.27" x 8.03" -
Weight:
32 lbs
Standards
Additional Details
-
Frame Type:
P-Frame -
Trip Unit Technology:
Electronic, ammeter, MicroLogic 6.0 A, LSIG -
Line Rated Current:
1000 Amp
-
Breaking Capacity Code:
G -
Electrical Connection:
Lugs line / Lugs load -
Continuous Current Rating:
100% -
Control Type:
Toggle -
AWG Gauge:
3 x AWG 3/0...500 kcmil aluminium/copper
Product Description - PGL36100 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type PGL, 3P, 3PH, 1000A, 600V, 35kA@480V, UL listed, standard interrupting capacity, feed-thru, complete with basic non-interchangeable ET 1.0I trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.
Documentation
