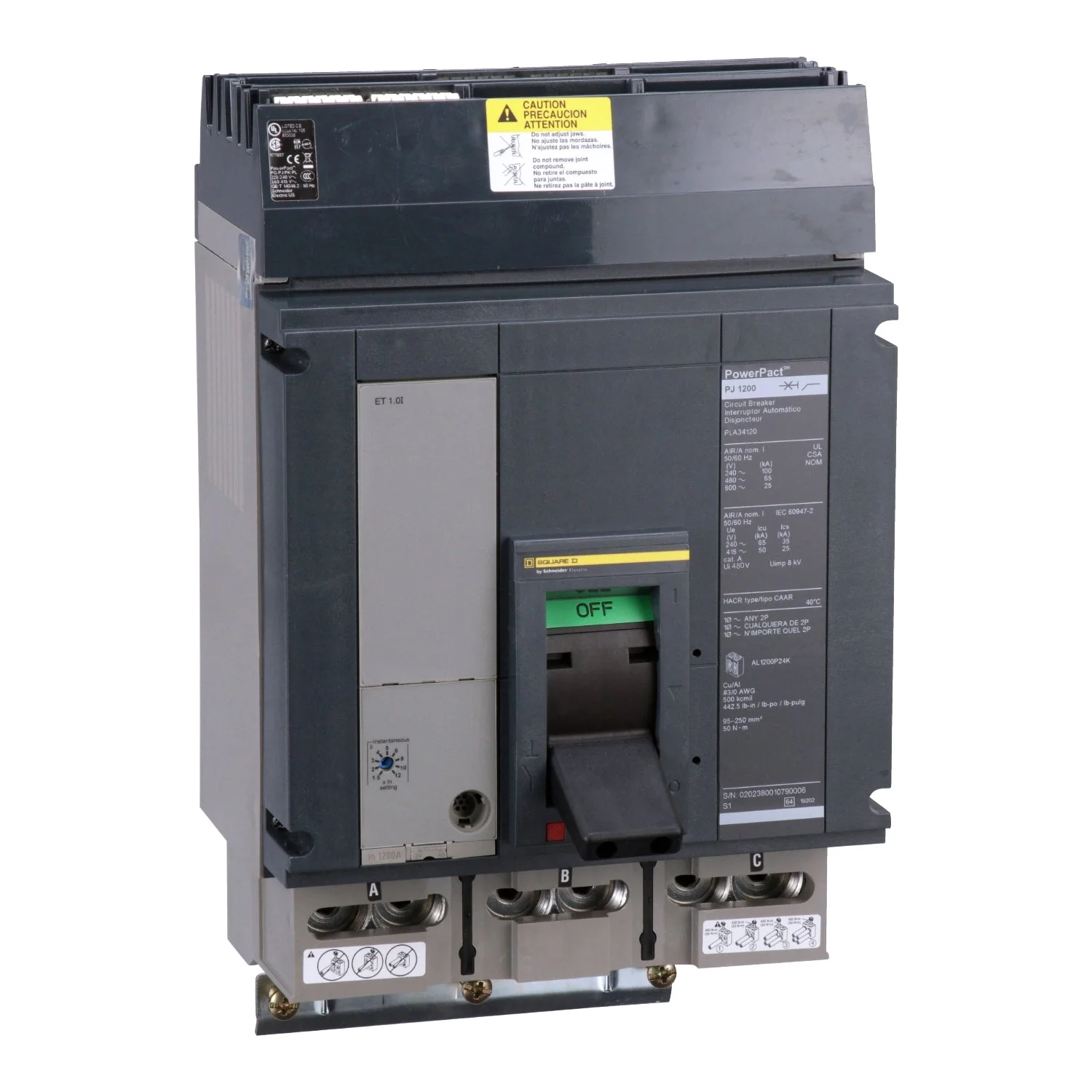

-70%PLA34120 - Square D - Molded Case Circuit Breaker—
$9,500.99
$2,850.30The Story
Overview
Product Specifications - PLA34120 - Square D Molded Case Circuit Breakers
-
Part Number:
PLA34120 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
1200 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
PLA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
16.16" x 8.27" x 8.05" -
Weight:
32 lbs
Additional Details
-
Frame Type:
P-Frame -
Trip Unit Technology:
Electronic, basic, ET 1.0I, I -
Line Rated Current:
1200 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
L -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Standards
Product Description - PLA34120 - Square D Molded Case Circuit Breakers
Square D,Schneider Electric, Powerpact, type PLA, 3P, ABC phase connection, 3PH, 1200A, 480V, 100kA@480V, UL listed, extra high interrupting capacity, i-line style plug-in, complete with basic non-interchangeable ET 1.0I trip, LI - Long-Time and Instantaneous trip functions, solid state electronic.
