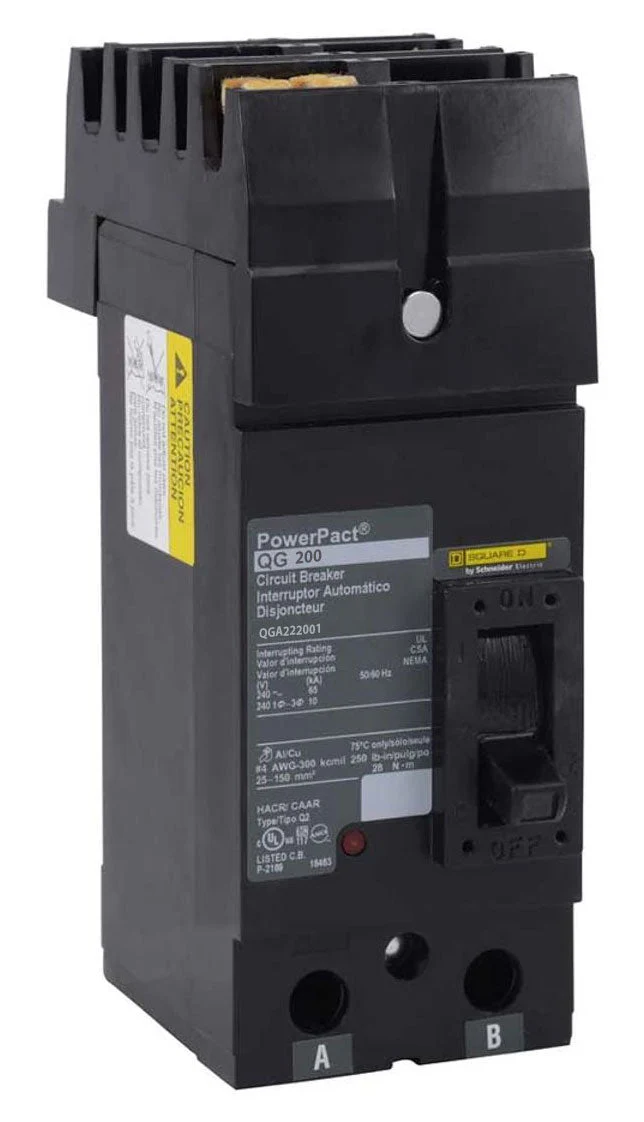

-70%QGA222001 - Square D - Molded Case Circuit Breaker—
$699.99
$210.00The Story
Overview
Product Specifications - QGA222001 - Square D I-Line Circuit Breaker
-
Part Number:
QGA222001 -
Manufacturer:
-
Family:
I-Line -
Pole:
2 -
Amp
200 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
QGA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@240V
Dimensions
-
Dimensions (HxWxD):
4.60" x 7.70" x 12.50"
-
Weight:
4.9 lbs
Standards
Additional Details
-
Frame Type:
Q-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
200 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
G -
Electrical Connection:
TI-Line connection line/Lugs load -
Magnetic Hold Current:
1200 Amp -
Continuous Current Rating:
80% -
Control Type:
Operating handle
Product Description - QGA222001 - Square D I-Line Circuit Breaker
Square D, I-Line, type QGA, 2P, A & B phase connection, 1PH, 200A, 240V, 65kA@240V, UL listed, high interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic.
