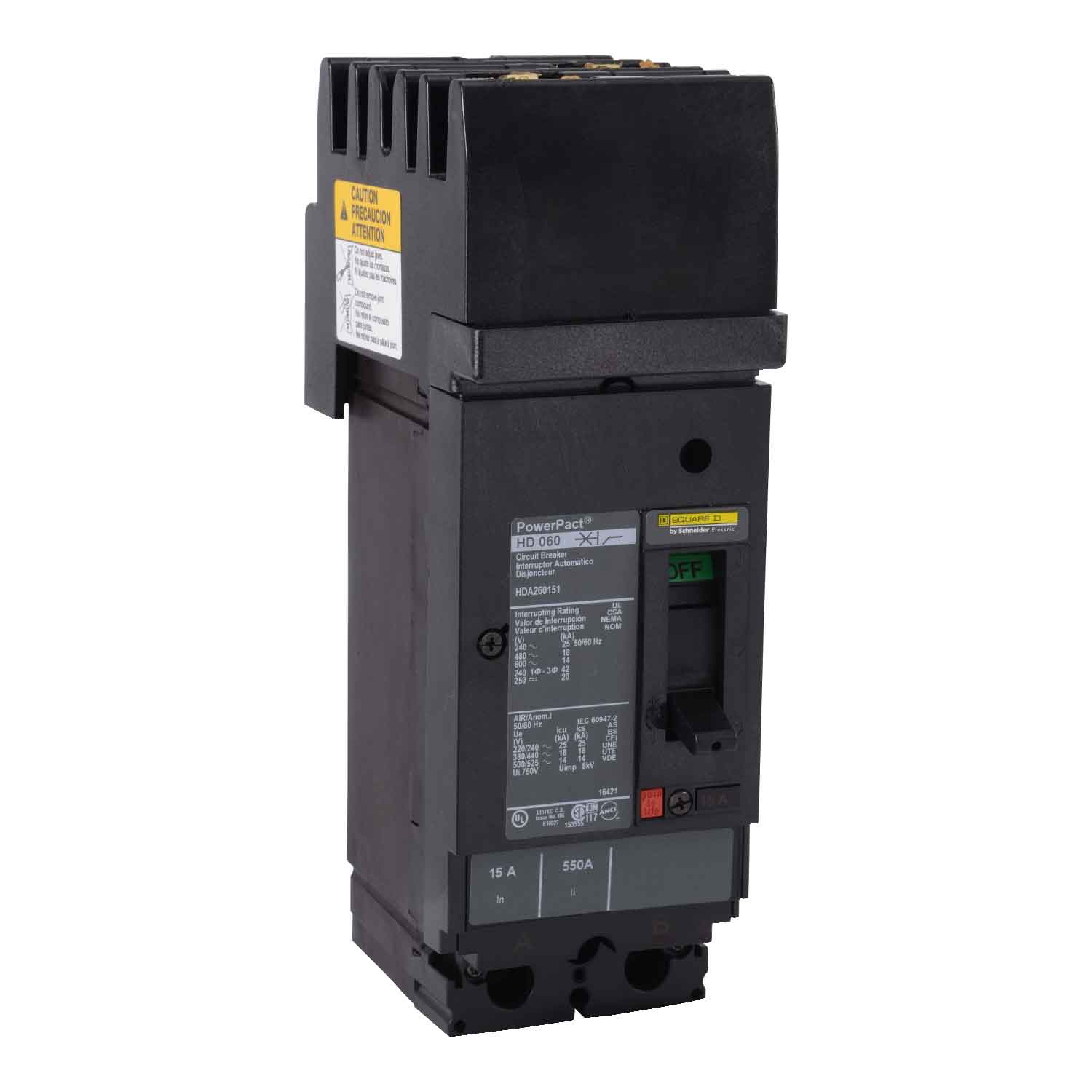

Product Specifications - HDA260251 - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HDA260251 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
25 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
H Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HDA260251 - Schneider Electric Molded Case Circuit Breakers
Square-D introduces the Powerpact series with the HDA circuit breaker, type HDA. This 2-pole (2P) breaker is configured for A & B phase connection, featuring a 25A rating in single-phase (1PH) applications. With a voltage capacity of 600V and a standard interrupting capacity of 18kA@480V, it is UL listed and adopts the I-Line Style Plug-In installation. Complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, and load side lug terminals, this Thermal Magnetic molded case circuit breaker ensures secure electrical protection.
