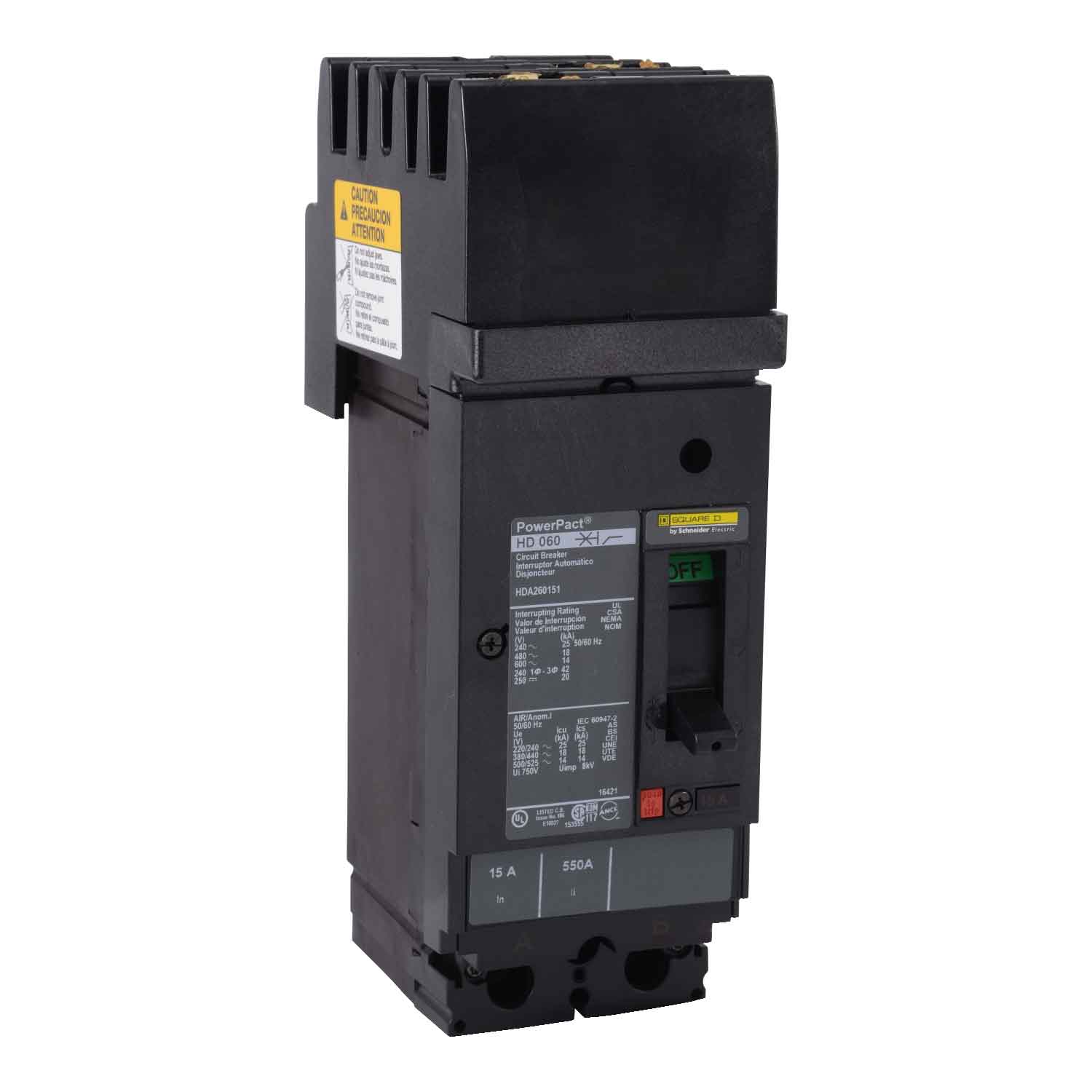

Product Specifications - HDA260254 - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HDA260254 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
25 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
H Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HDA260254 - Schneider Electric Molded Case Circuit Breakers
Unveiling the HDA260254 from Square D's Powerpact series, a 1-phase (1PH) molded case circuit breaker with a 2-pole (2P) configuration. Configured for B & C phase connection, this breaker offers a 25A rating at 600V. With a standard interrupting capacity of 18kA@480V, it is UL listed and suitable for reverse fed applications. Complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, this Thermal Magnetic molded case circuit breaker ensures secure electrical protection.
