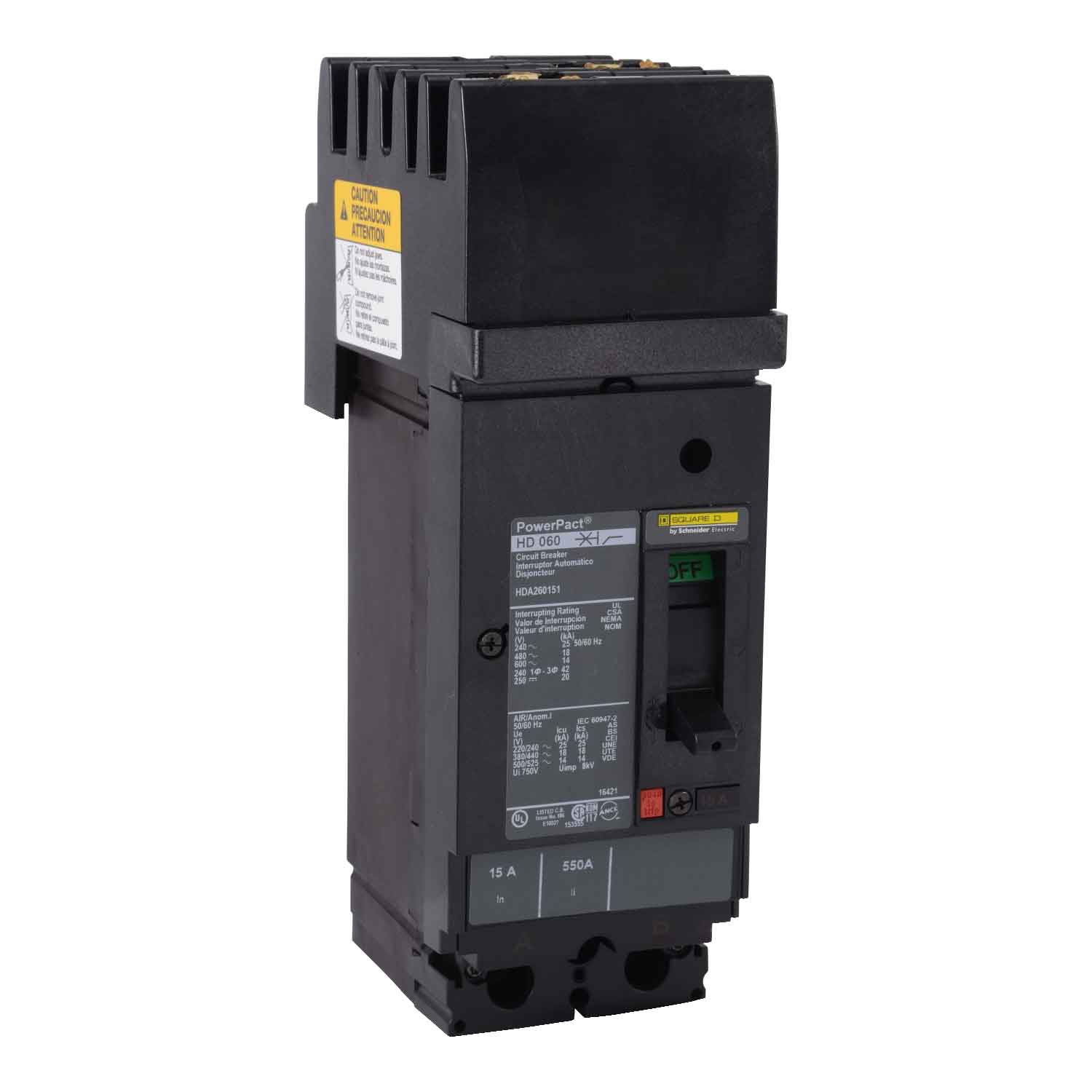

Product Specifications - HDA260452 - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HDA260452 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
45 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
H Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HDA260452 - Schneider Electric Molded Case Circuit Breakers
Continuing in the Powerpact series, Square-D presents a 1-phase (1PH) molded case circuit breaker configured for A & C phase connection. This 2-pole (2P) breaker boasts a 45A rating at 600V, with a standard interrupting capacity of 18kA@480V. UL listed and suitable for reverse fed applications, it offers reliable electrical protection. Complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, this Thermal Magnetic molded case circuit breaker ensures safety across diverse applications.
