Original: $885.99
-70%$885.99
$265.80The Story
Overview
Product Specifications - HDA36100U33X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HDA36100U33X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
H Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HDA36100U33X - Schneider Electric Molded Case Circuit Breakers

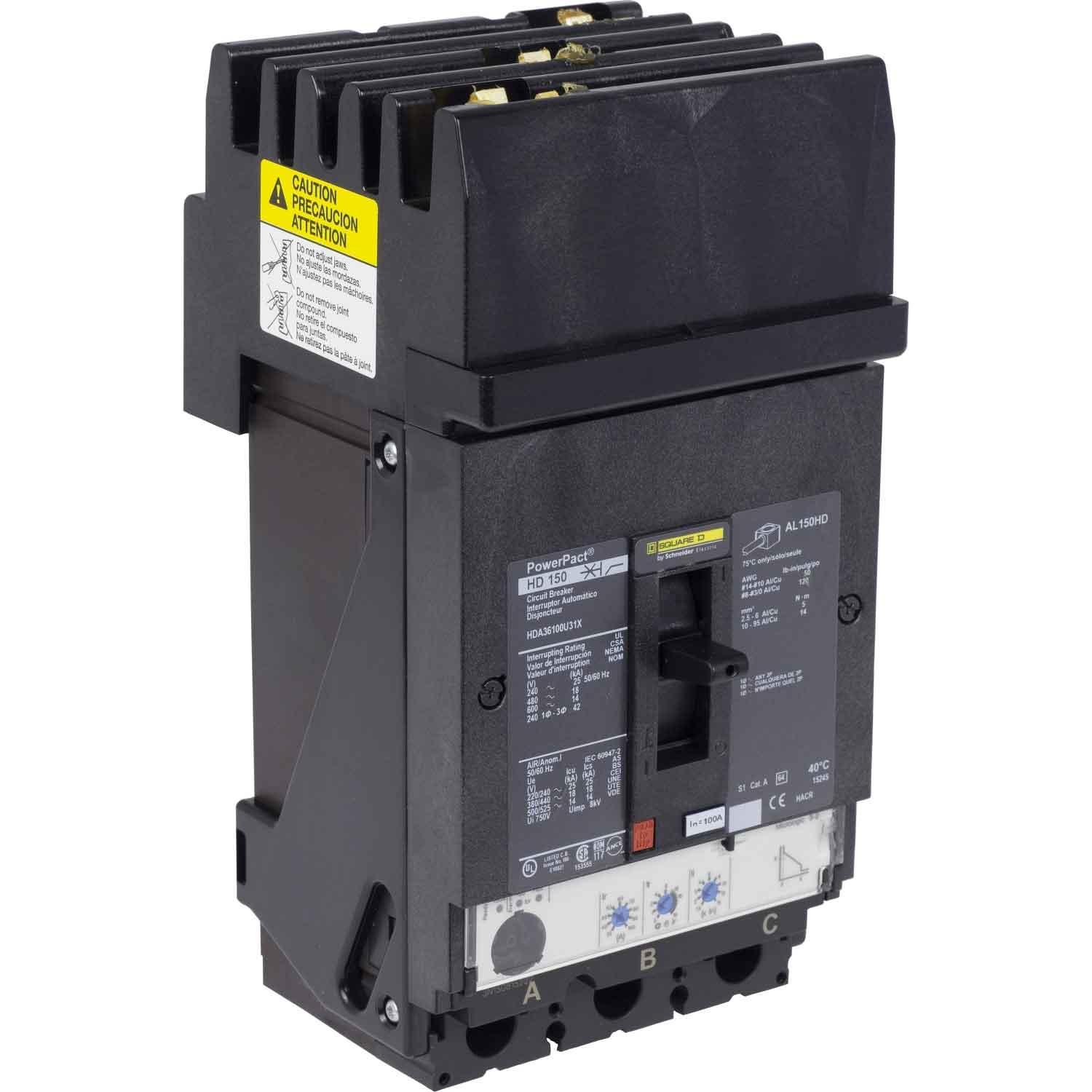

Explore the HDA36100U33X by Square D, a 3-phase (3P) molded case circuit breaker configured for ABC phase connection in 3-phase (3PH) applications. This breaker offers a 100A rating at 600V with a standard interrupting capacity of 18kA@480V. Adopting the I-Line Style Plug-In installation, it is UL listed, suitable for reverse connection, and can be used for 2P applications. Complete with micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time, Short-Time, and Instantaneous trip functions, this breaker employs Solid State electronic protection.
