Product Specifications - HDL36060U33X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HDL36060U33X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
60 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
H Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HDL36060U33X - Schneider Electric Molded Case Circuit Breakers

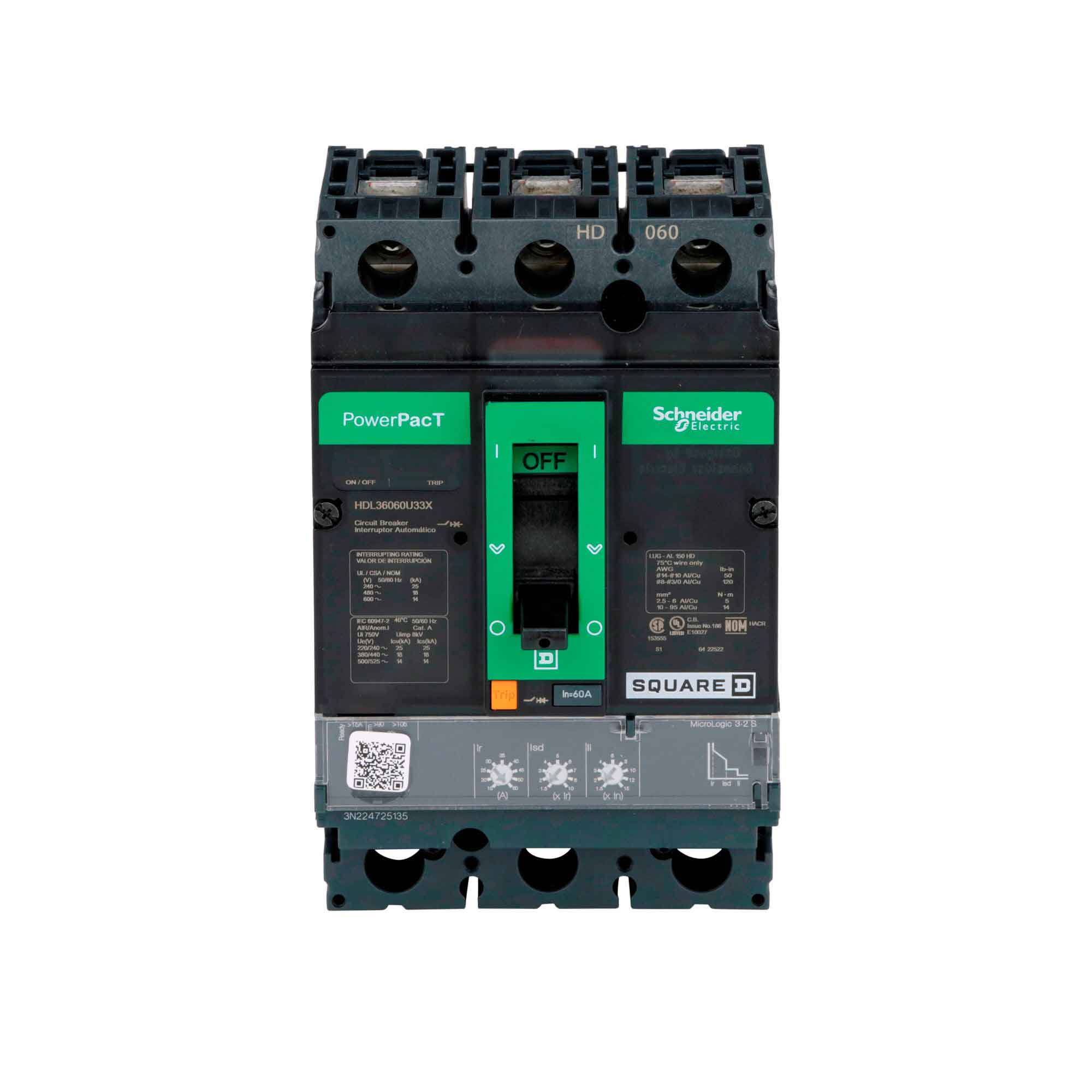

The HDL36060U33X by Schneider Electric, a part of Square D's Powerpact series, is a 3-phase (3P) molded case circuit breaker configured for ABC phase connection in 3-phase (3PH) applications. This breaker offers a 60A rating at 600V with a standard interrupting capacity of 18kA@480V. Operating as a Feed-Thru breaker, it is UL listed, suitable for reverse fed applications, and can be used for 2P applications. Complete with micrologic standard non-interchangeable trip, LSI - Long-Time, Short-Time, and Instantaneous trip functions, along with line & load side lug terminals, it provides Solid State electronic protection.
