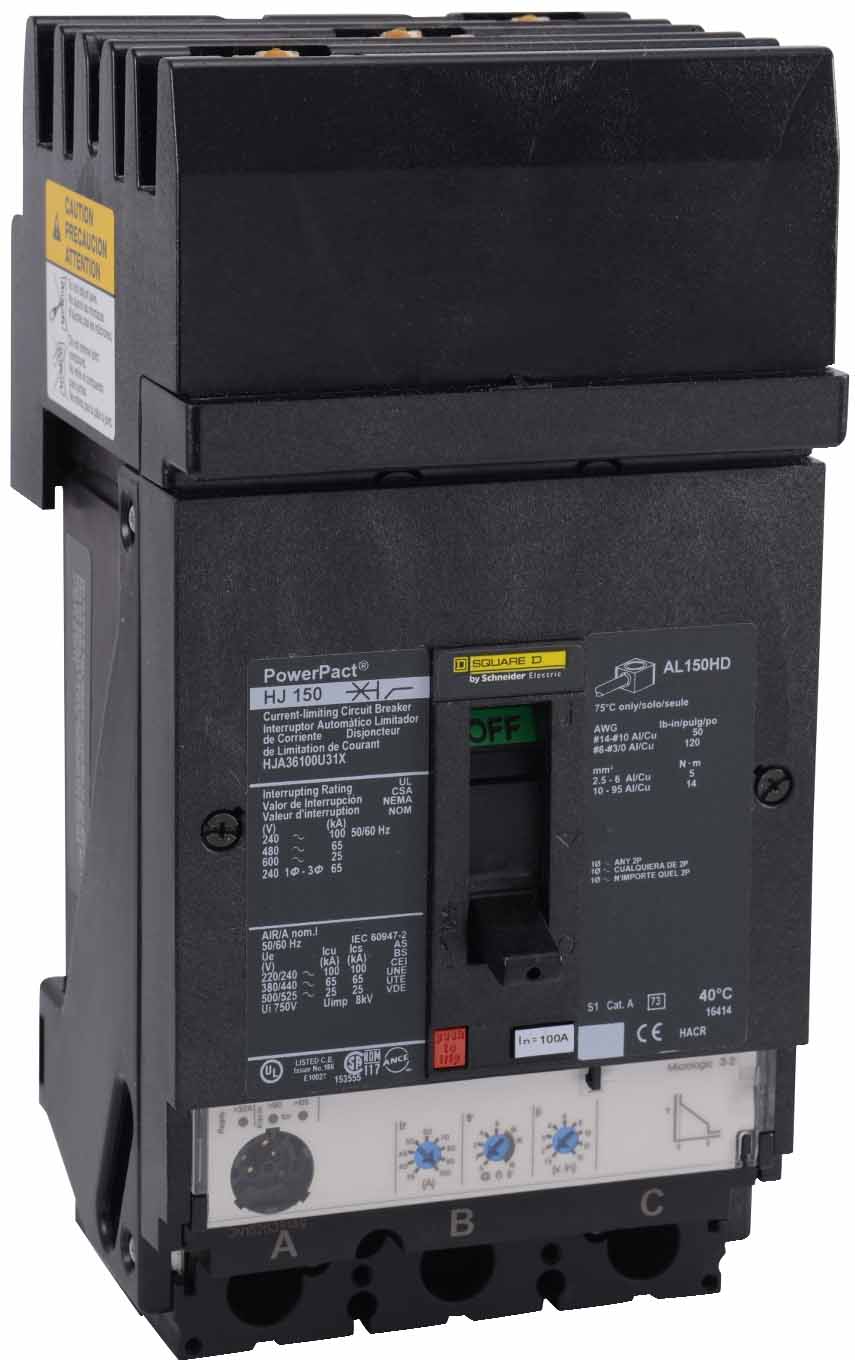

-70%HJA36100U31X - Square D - Molded Case Circuit Breakers—
$899.99
$270.00The Story
Overview
Product Specifications - HJA36100U31X - Square D Molded Case Circuit Breakers
-
Part Number:
HJA36100U31X -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
HJA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
6.42" x 4.09" x 3.39"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2, LI -
Line Rated Current:
100 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
J -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HJA36100U31X - Square D Molded Case Circuit Breakers
Square D, Powerpact, type HJA, 3P, ABC phase connection, 3PH, 100A, 600V, 65kA@480V, UL listed, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions
