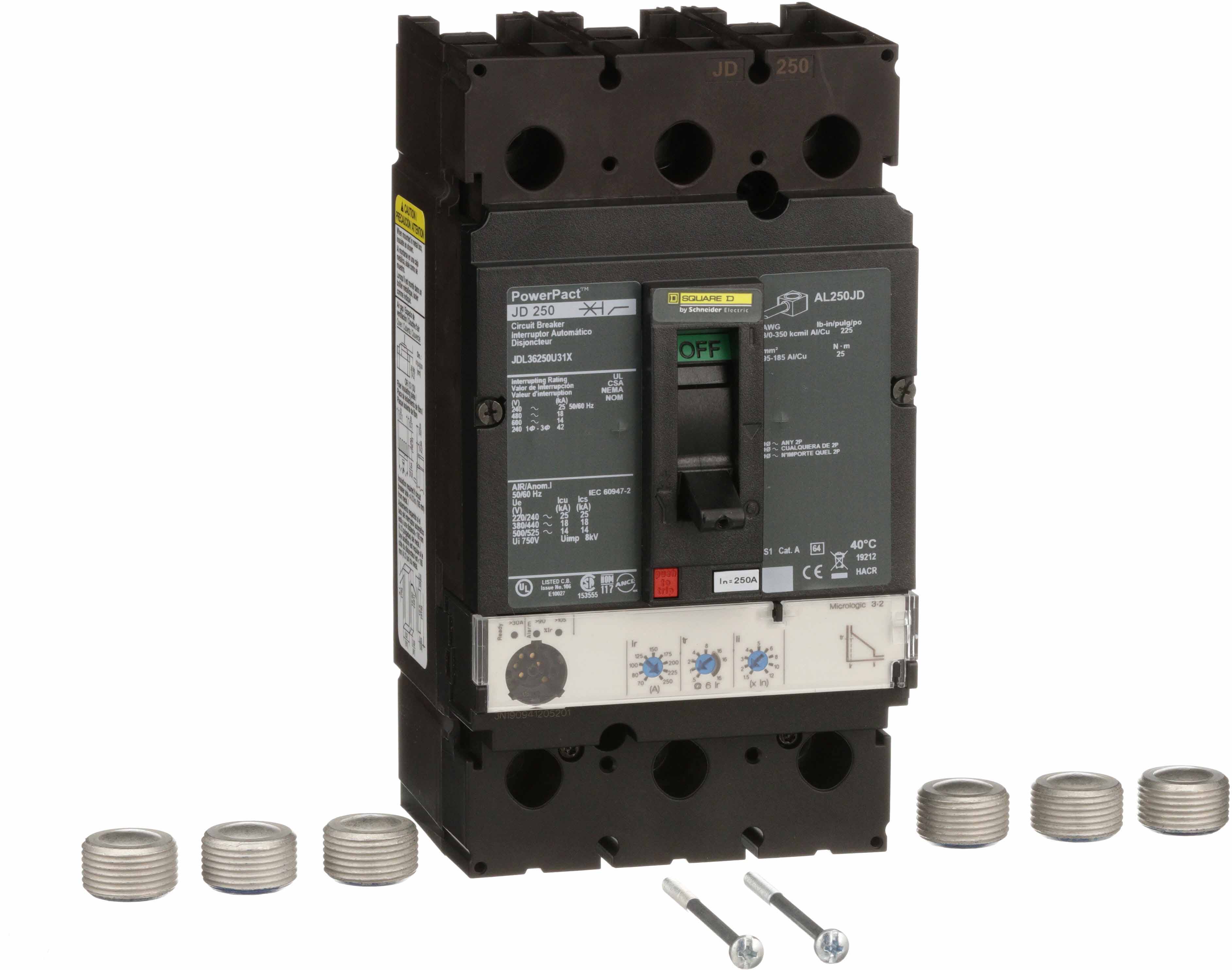

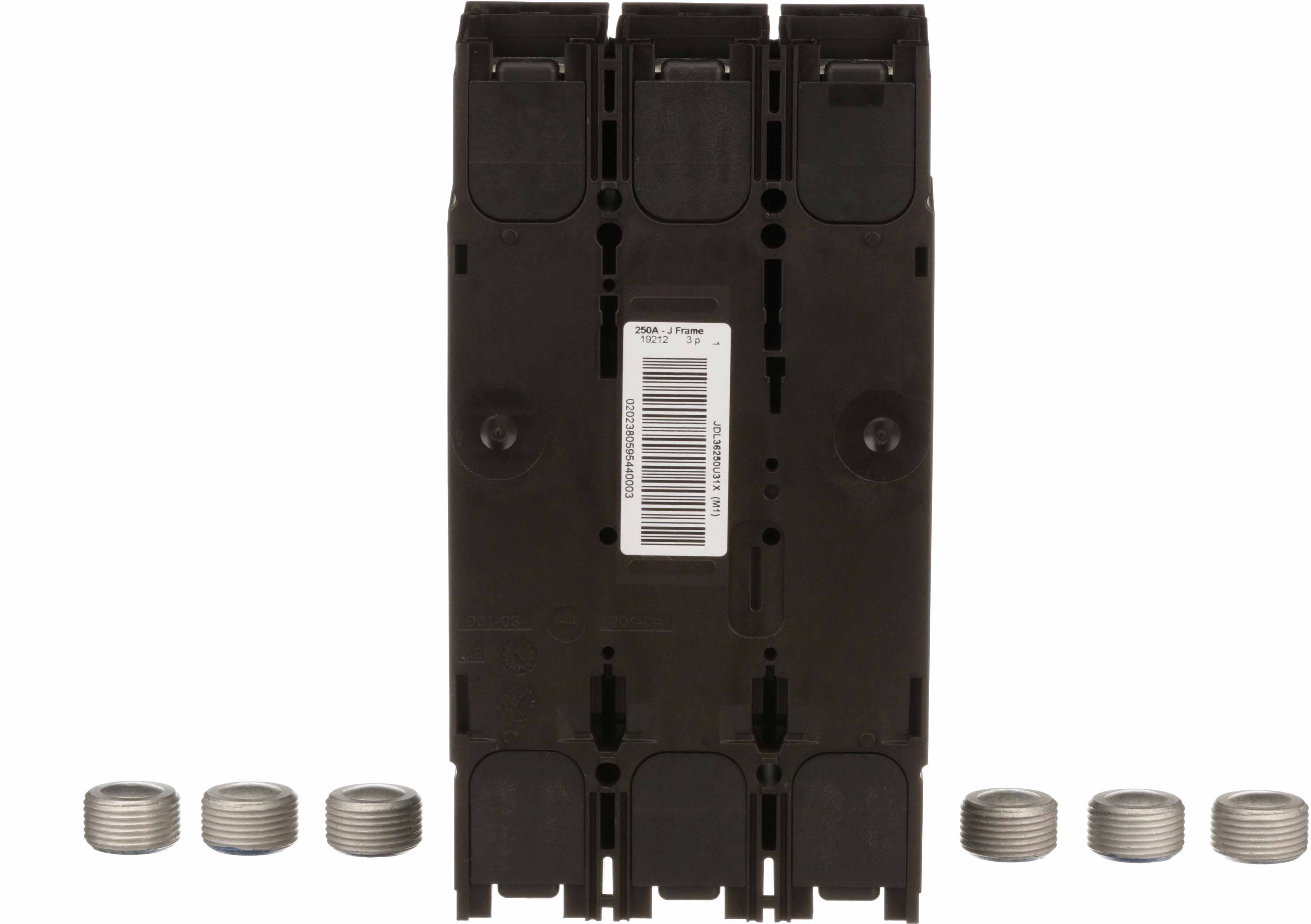

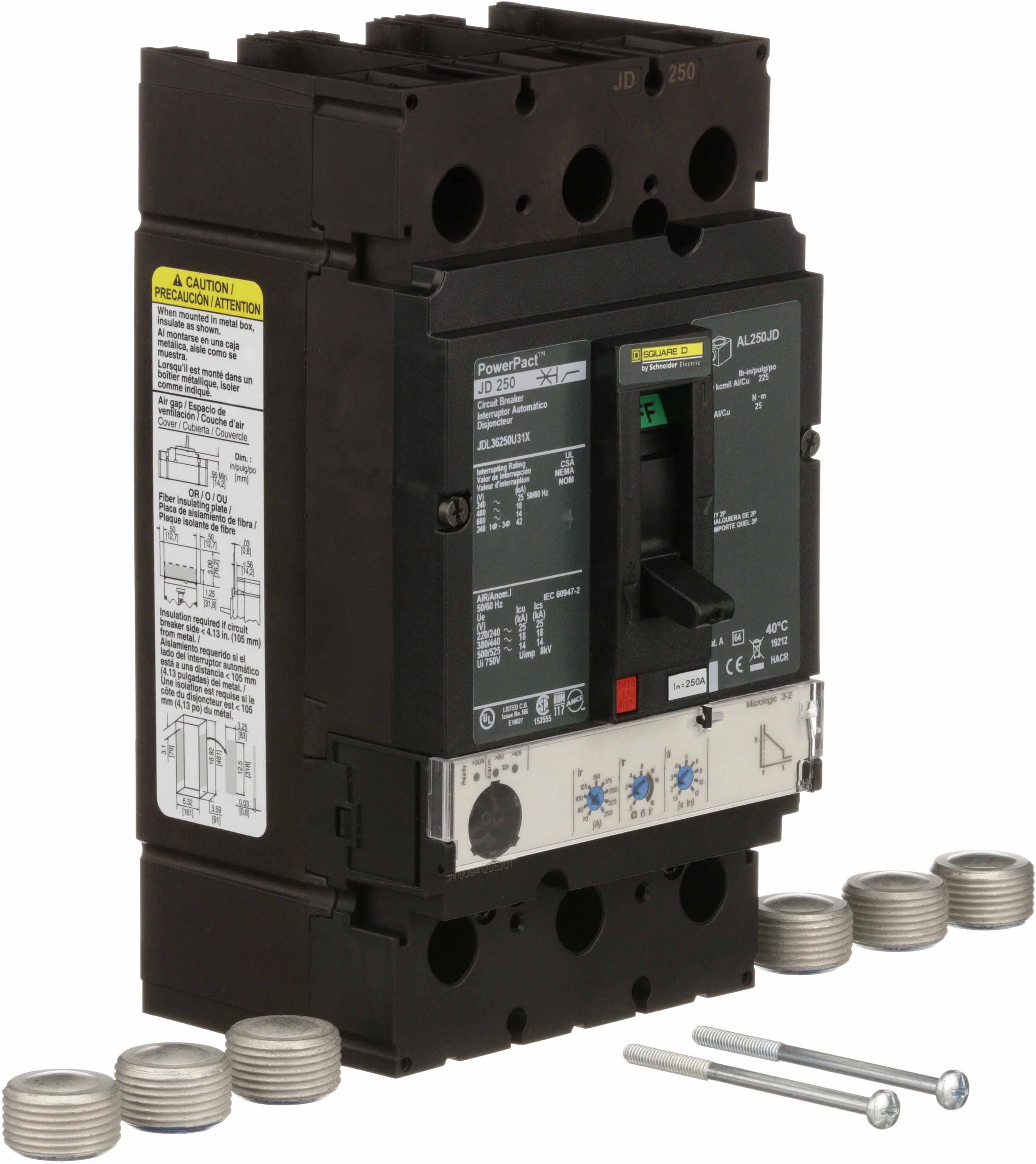

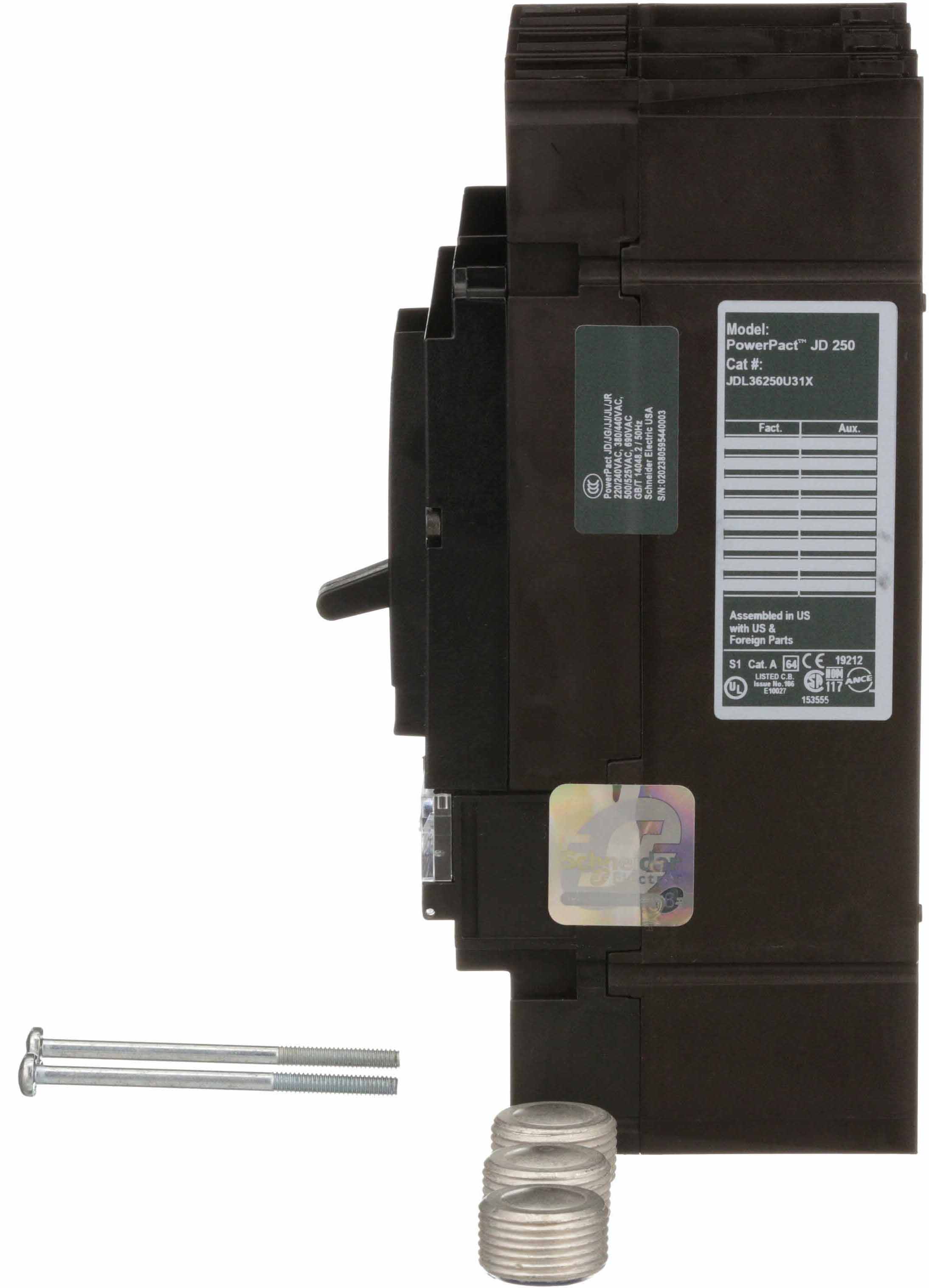

Product Specifications - JDL36250U31X - Square D Molded Case Circuit Breakers
-
Part Number:
JDL36250U31X -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
JDL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
7.52" x 4.09" x 3.39"
-
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Short-Circuit / Overload -
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2, LI -
Line Rated Current:
250 Amp -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code
D -
Electrical Connection:
Lugs line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Description - JDL36250U31X - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, 3P, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, line & load side lug terminals, solid state, Molded Case Circuit Breaker
