Overview

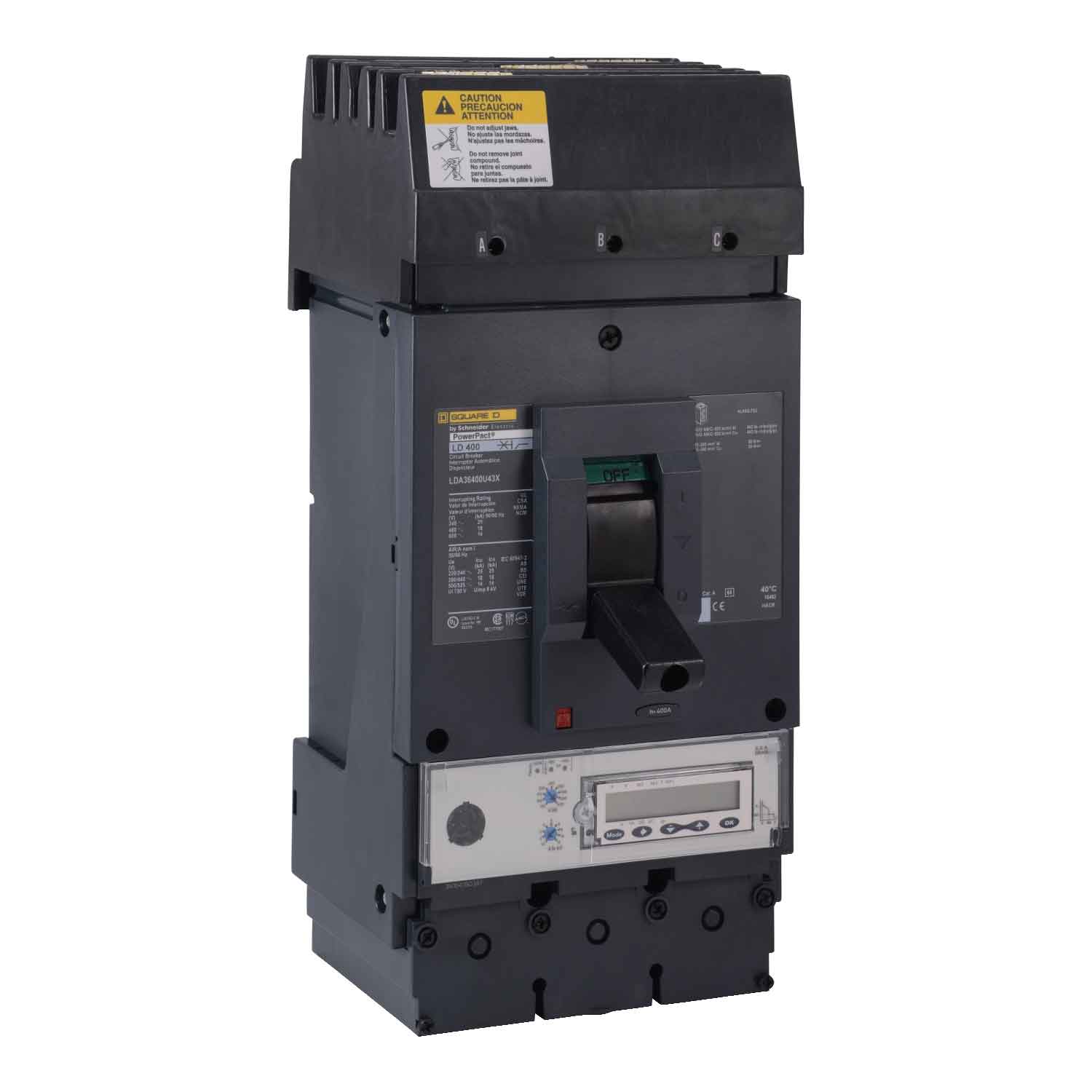

Product Specifications - LDA36600U43X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
LDA36600U43X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
L Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
4.33 x 5.51 x 13.39 -
Weight:
13.67 lb
Standards
Product Description - LDA36600U43X - Schneider Electric Molded Case Circuit Breakers
Schneider Electric, Square D, Powerpact, type LDA, 3P, 3PH, 600A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, can be used for 2P applications, complete with non-interchangeable micrologic ammeter 5.3A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers. This Powerpact breaker, suitable for 2P applications, features a non-interchangeable micrologic ammeter 5.3A trip and offers LSI trip functions.
