Original: $9,852.99
-70%$9,852.99
$2,955.90The Story
Overview

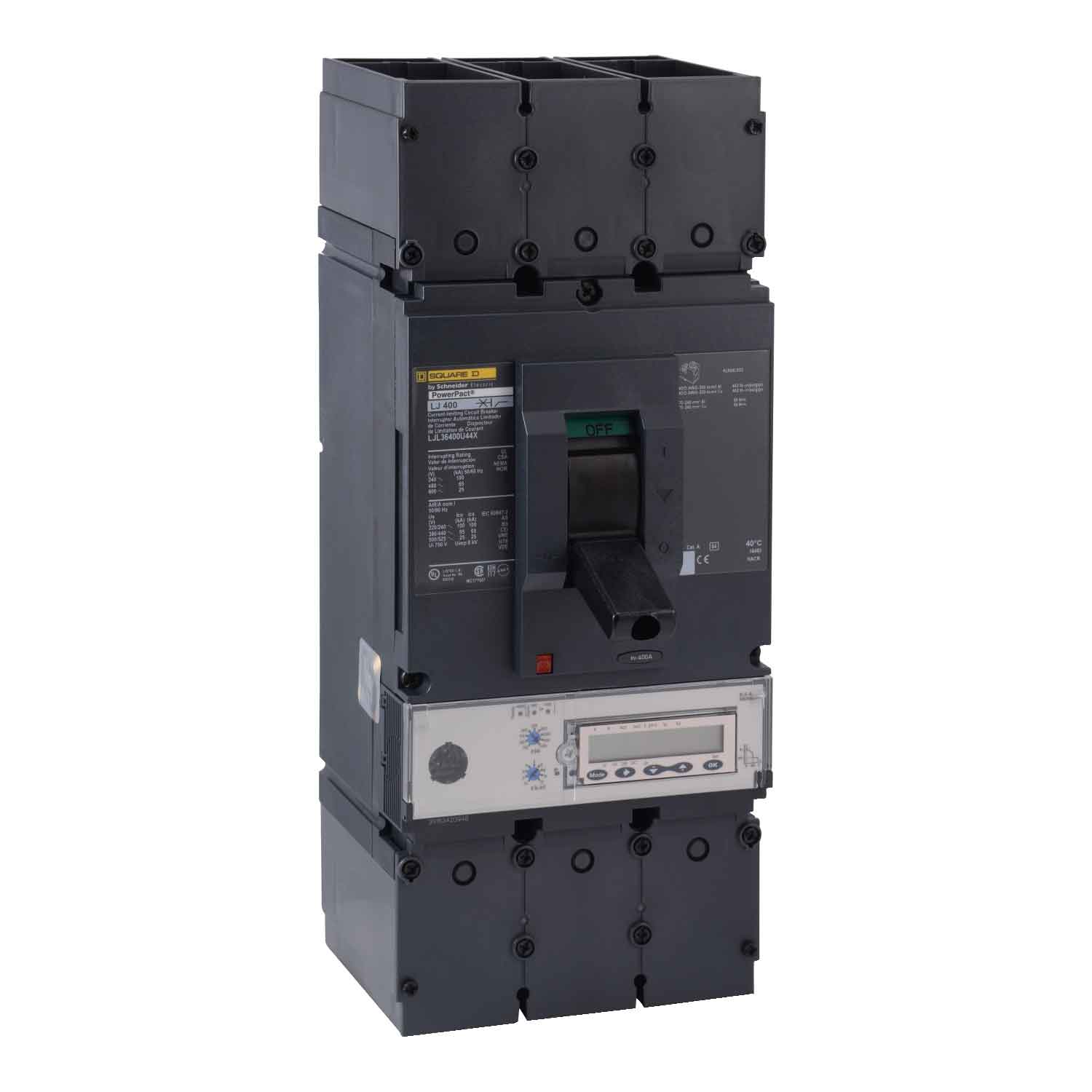

Product Specifications - LJL36600U44X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
LJL36600U44X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
L Frame -
Functions:
LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
4.33 x 5.51 x 13.39 -
Weight:
13.67 lb
Standards
Product Description - LJL36600U44X - Schneider Electric Molded Case Circuit Breakers
Square D, Schneider Electric, Powerpact, type LJL, 3P, 3PH, 600A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru. Complete with non-interchangeable micrologic ammeter 6.3A trip unit with LSIG, LSIG - Long-Time, Short-Time, Instantaneous, and Ground Fault trip functions and line & load side lug terminals. Solid State electronic, molded case circuit breakers.
Description
Overview
Product Specifications - LJL36600U44X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
LJL36600U44X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
L Frame -
Functions:
LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
4.33 x 5.51 x 13.39 -
Weight:
13.67 lb
Standards
Product Description - LJL36600U44X - Schneider Electric Molded Case Circuit Breakers
Square D, Schneider Electric, Powerpact, type LJL, 3P, 3PH, 600A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru. Complete with non-interchangeable micrologic ammeter 6.3A trip unit with LSIG, LSIG - Long-Time, Short-Time, Instantaneous, and Ground Fault trip functions and line & load side lug terminals. Solid State electronic, molded case circuit breakers.
