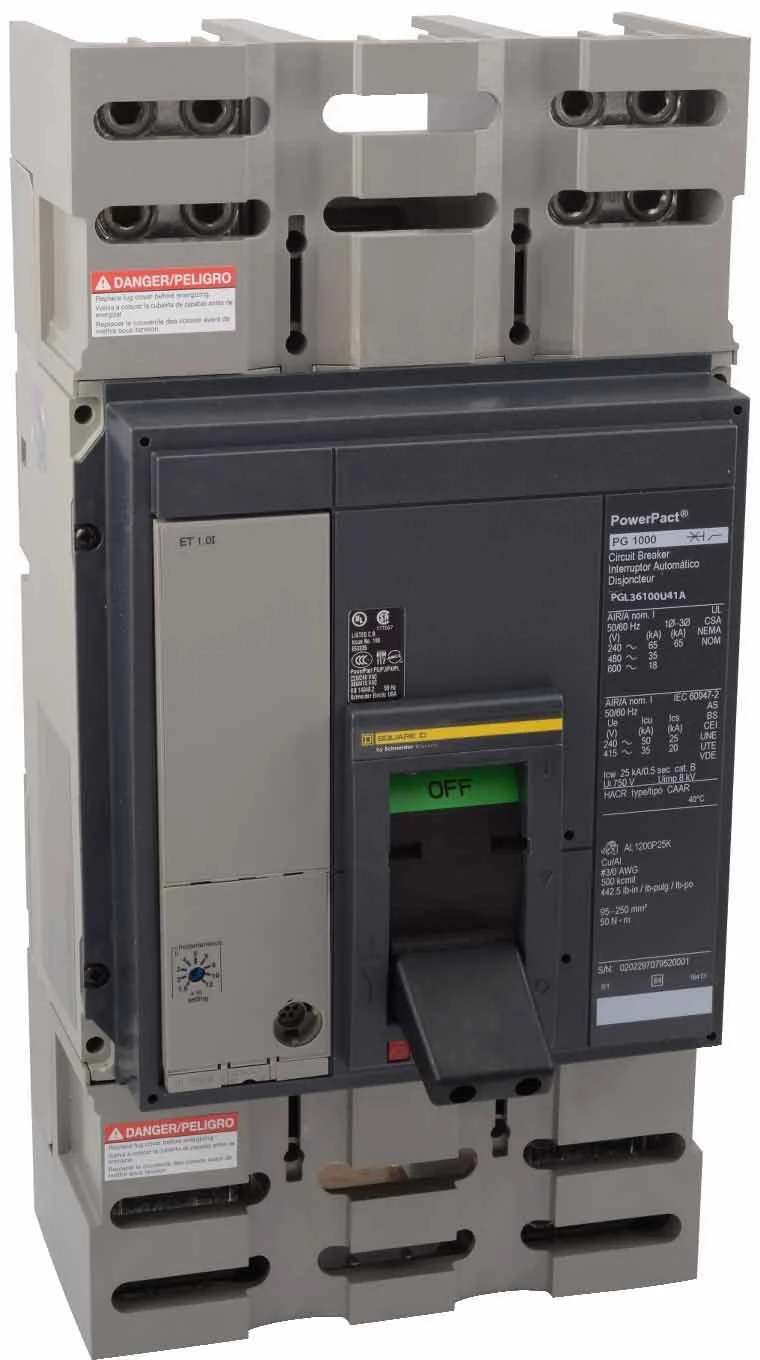

-70%PGL36100U41A - Square D - Molded Case Circuit Breakers—
$8,919.99
$2,676.00The Story
Overview
Product Specifications - PGL36100U41A - Square D Molded Case Circuit Breakers
-
Part Number:
PGL36100U41A -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
1000 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
PGL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
16.16" x 8.27" x 8.05"
-
Weight:
32 lbs
Standards
Additional Details
-
Trip Unit Technology:
Electronic, ammeter, MicroLogic 3.0 A, LI -
Line Rated Current:
1000 Amp
-
Breaking Capacity Code
G -
Electrical Connection:
Lugs load / Lugs line -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Product Description - PGL36100U41A - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, 3P, 3PH, 1000A, 600V, 35kA@480V, standard interrupting capacity, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Molded Case Circuit Breaker
