Original: $59.99
-70%$59.99
$18.00The Story
Overview

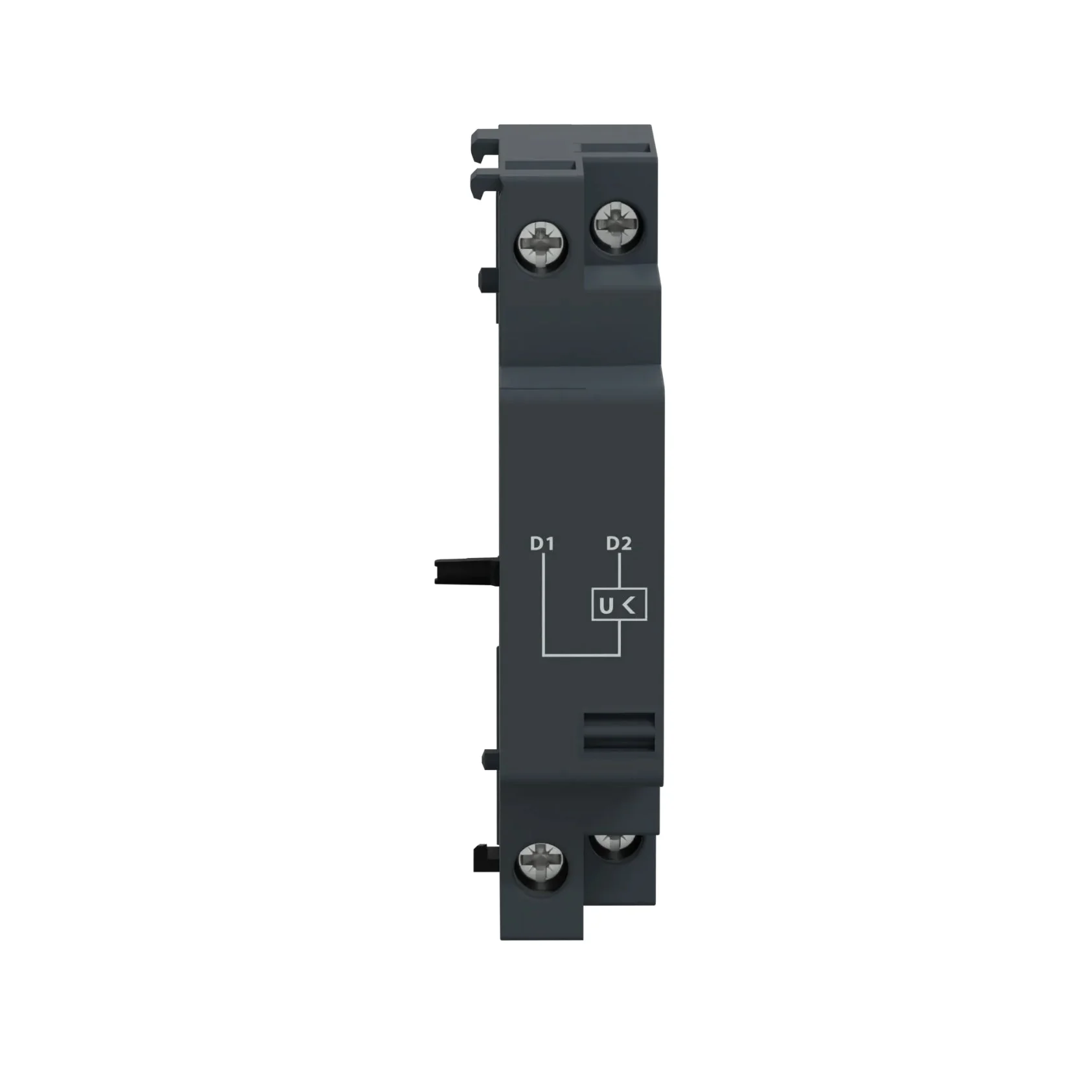

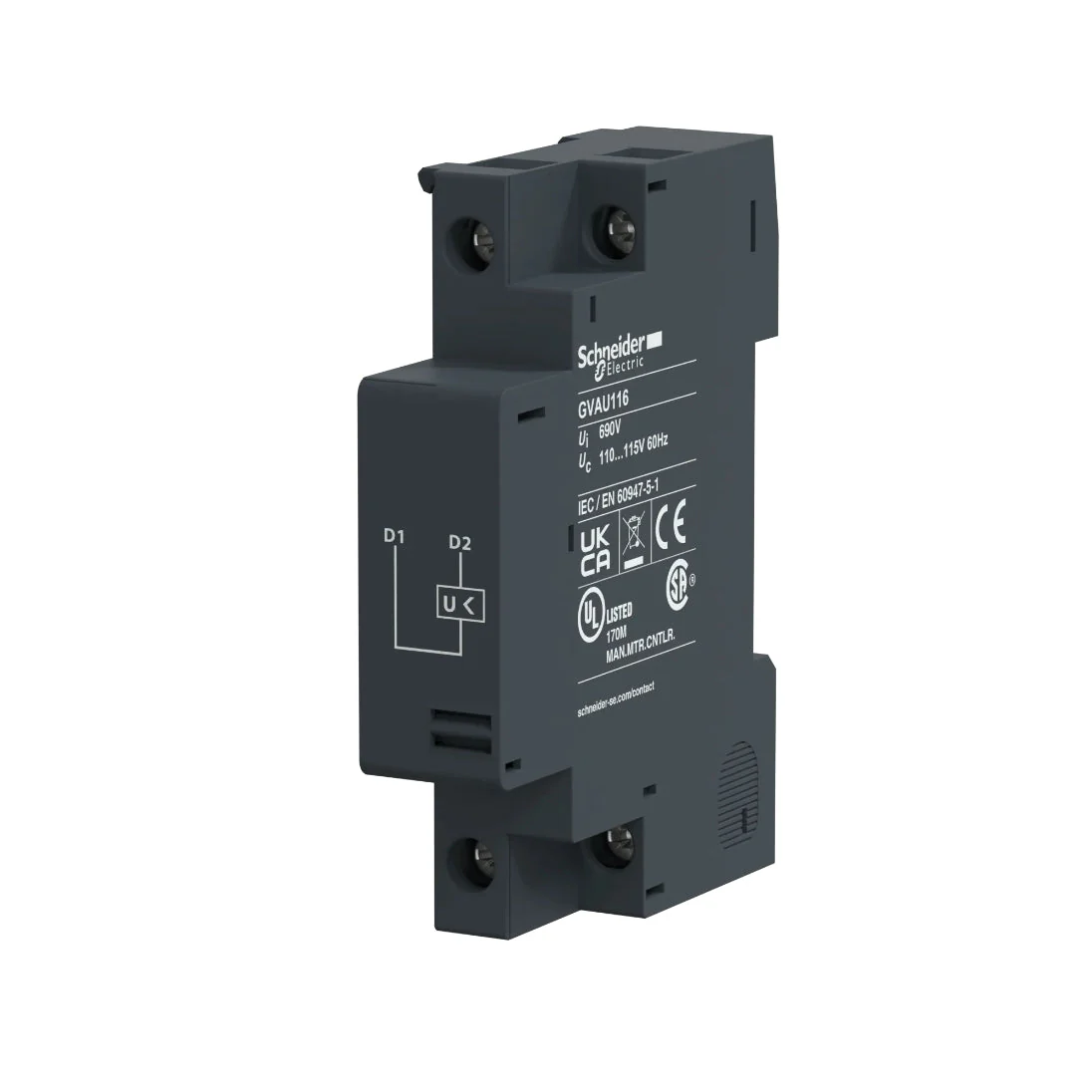

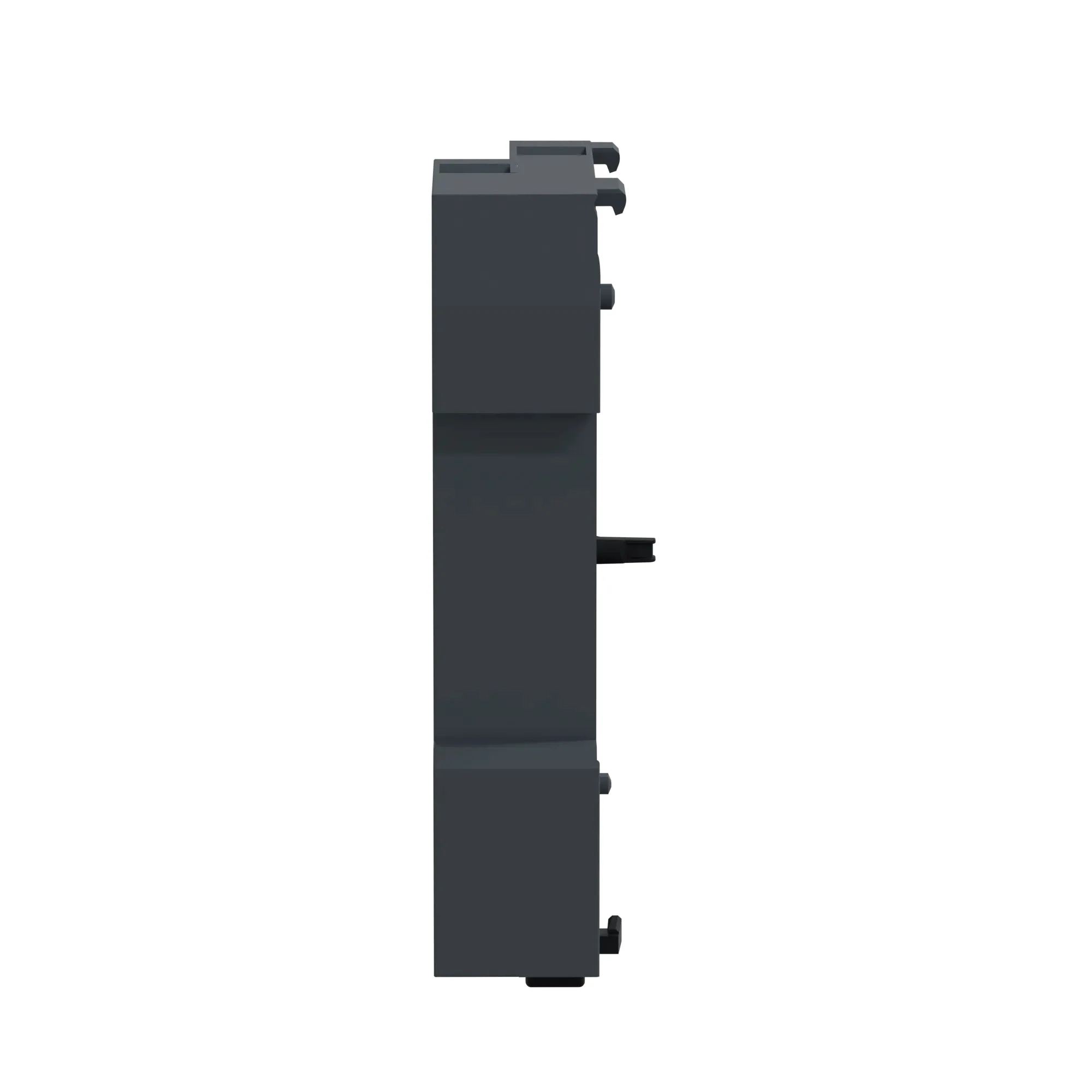

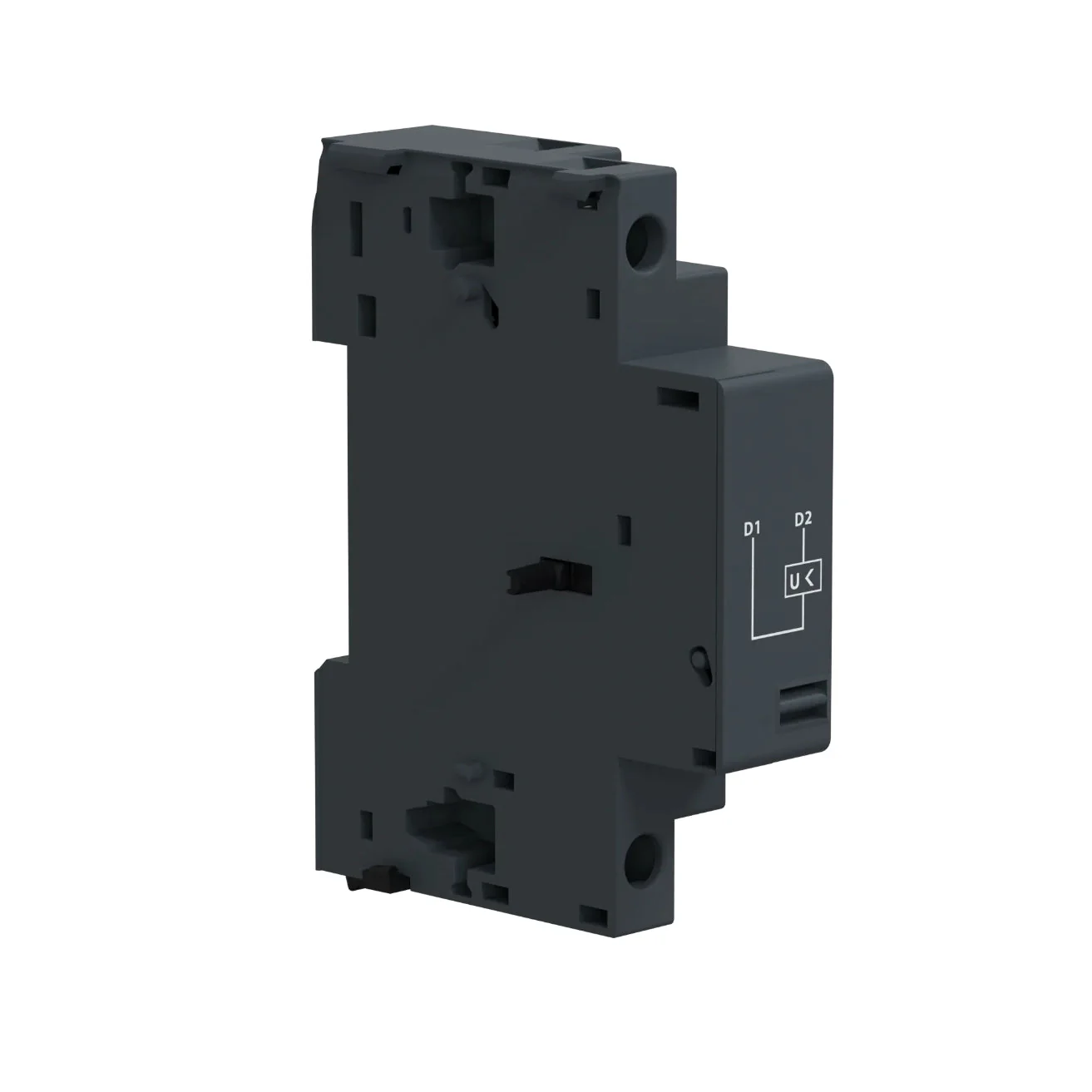

Product Specifications - GVAU116 - Square D Motor Control Part And Accessory
-
Part Number:
GVAU116 -
Manufacturer:
-
Family:
TeSys GV2
-
Category:
-
Type:
GV
Dimensions
-
Dimensions (HxWxD):
3.50 x .0.71 x 2.60 -
Weight:
0.23 lbs
Standards
Product Description - GVAU116 - Square D Motor Control Part And Accessory
TeSys GV electrical trip, MN undervoltage release, 110-115V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Overview
Product Specifications - GVAU116 - Square D Motor Control Part And Accessory
-
Part Number:
GVAU116 -
Manufacturer:
-
Family:
TeSys GV2
-
Category:
-
Type:
GV
Dimensions
-
Dimensions (HxWxD):
3.50 x .0.71 x 2.60 -
Weight:
0.23 lbs
Standards
Product Description - GVAU116 - Square D Motor Control Part And Accessory
TeSys GV electrical trip, MN undervoltage release, 110-115V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
