The Story
Overview
Product Specifications - 2510FG71P - Square D Motor Starter
-
Part Number:
2510FG71P -
Manufacturer:
-
Family:
Class 2510 -
Pole:
1 -
Amp
16 -
Volt:
277 -
Phase:
1
-
Category:
-
Type:
F
Dimensions
-
Dimensions (HxWxD):
4.25 x 2.44 x 2.88 -
Weight:
1.7 lb
Standards
Product Description - 2510FG71P - Square D Motor Starter

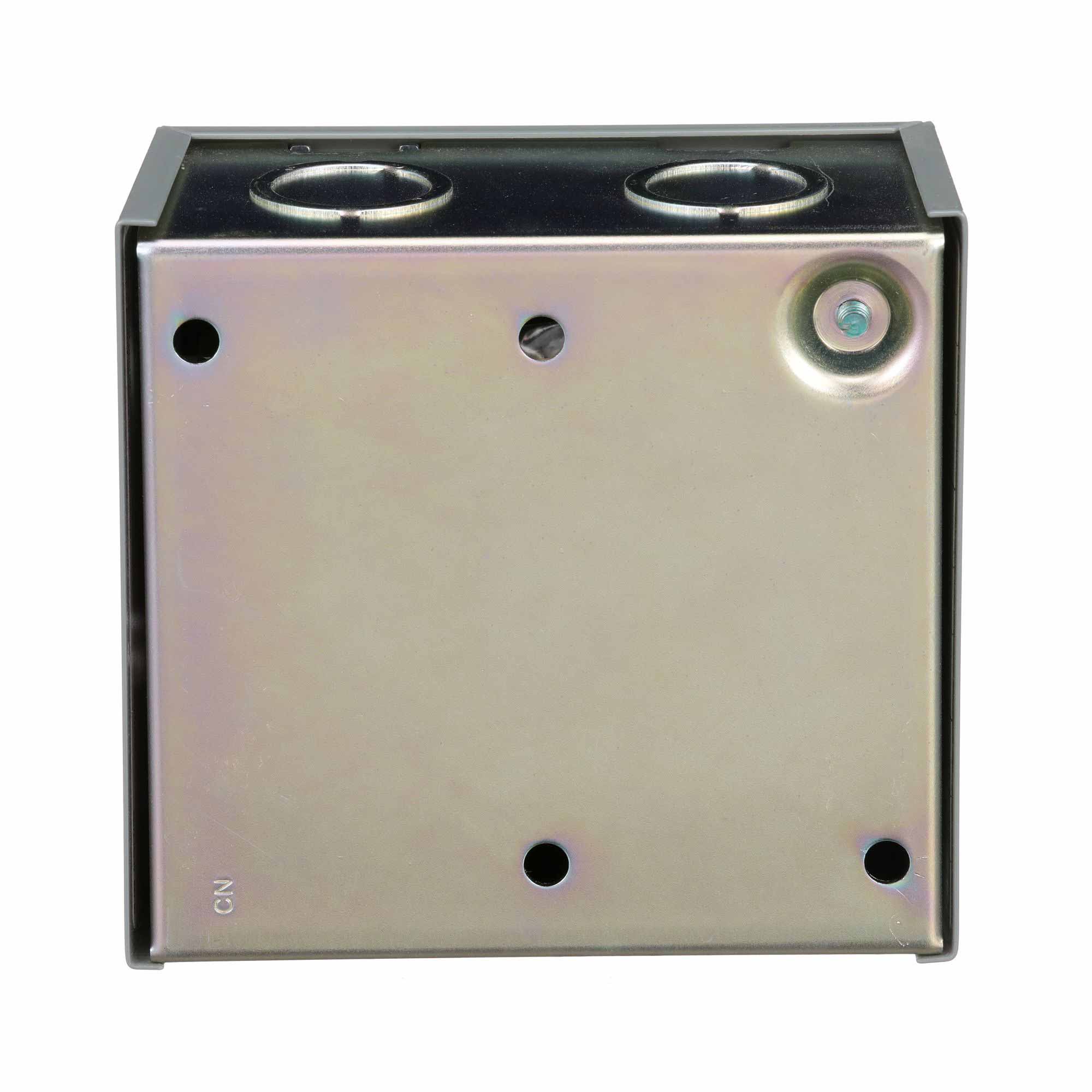

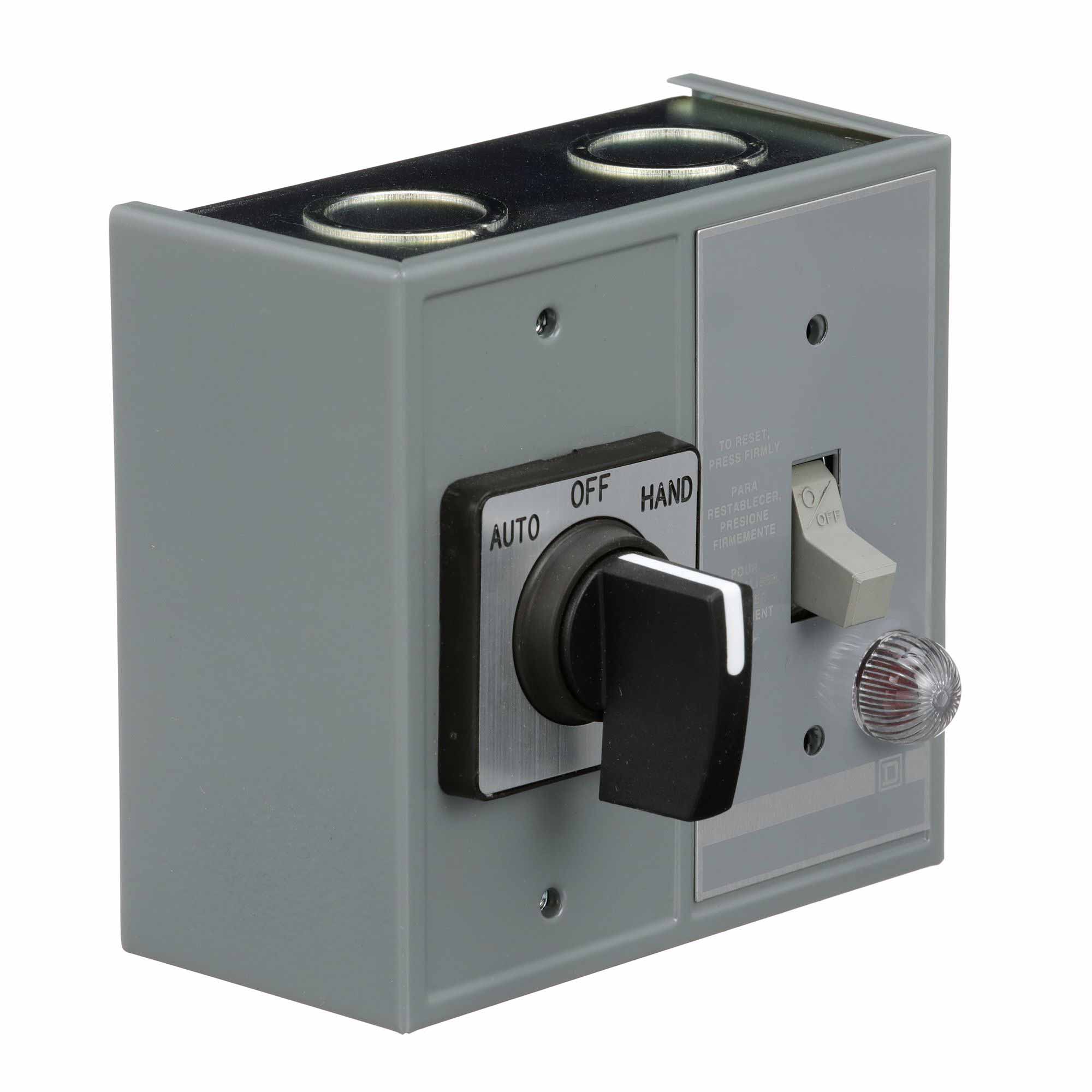

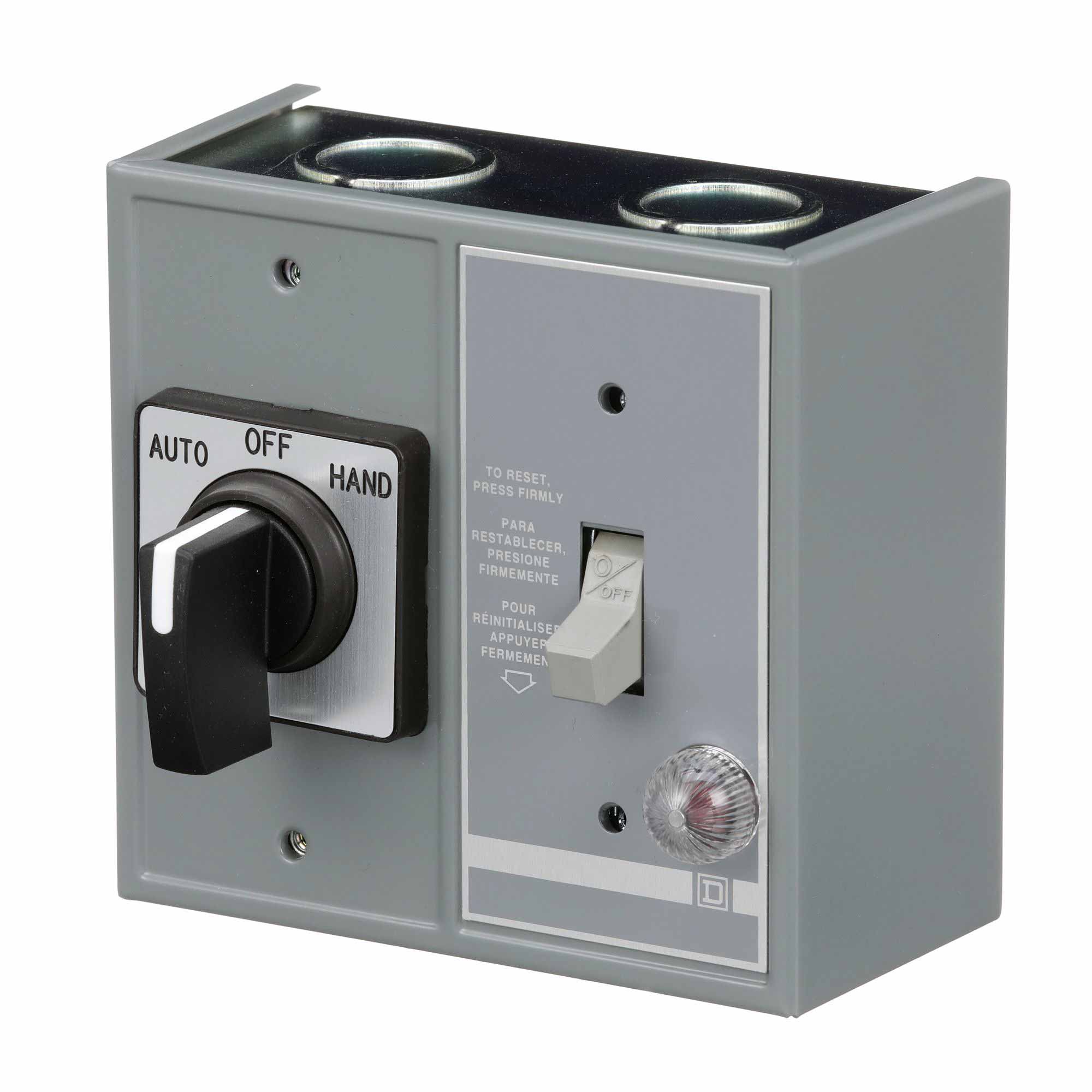

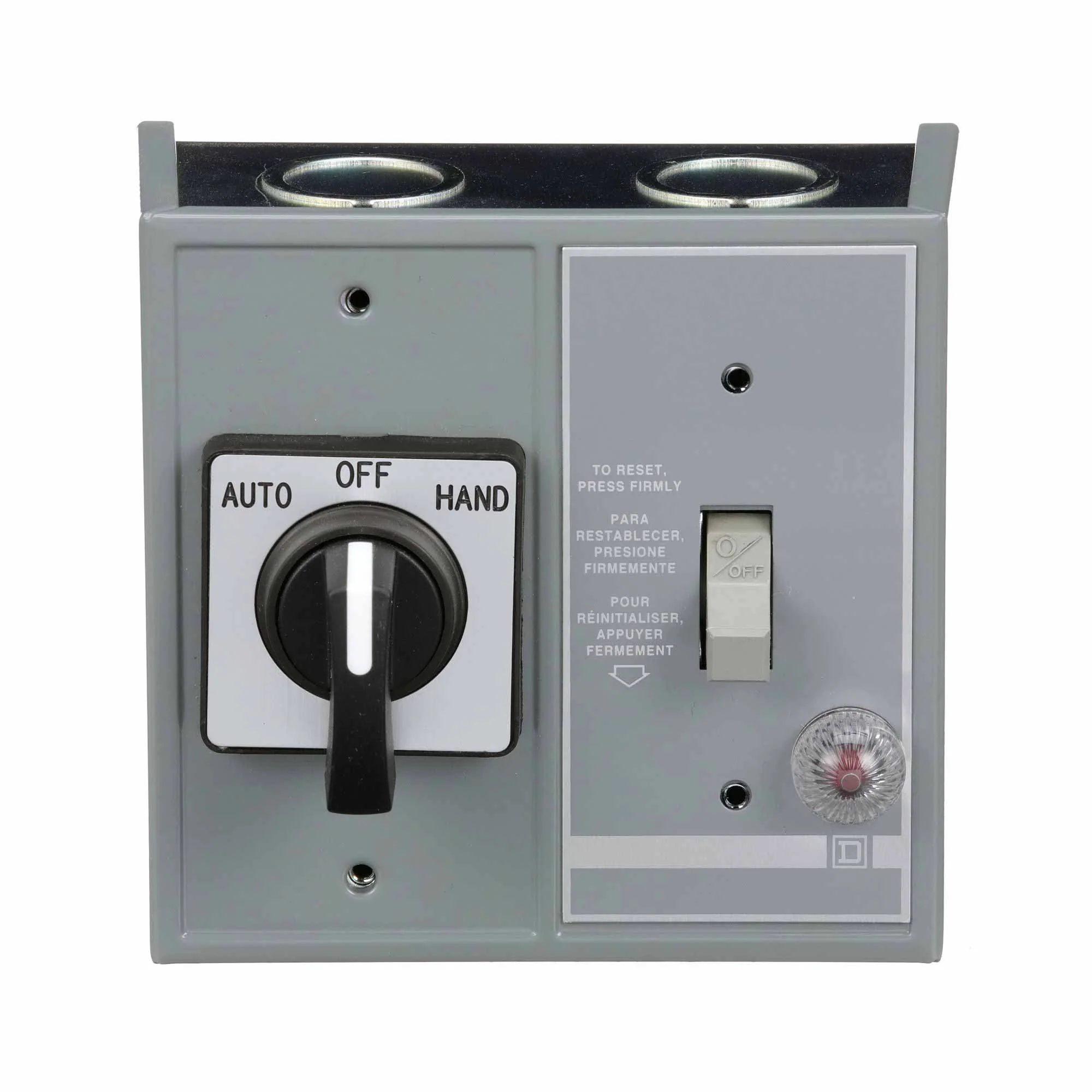

Square D Type F Manual starters provide overload protection and manual On-Off control for small single phase AC motors. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring. Auto-Off-Hand selector switch provides flexibility of local or remote control. Overload heater element is ordered separately to match motor data. Units are UL Listed, CSA Certified and CE Marked for global applications. Fractional Motor Starters. Designed for fractional single phase motors up to 1 HP. Provides easy manual “On-Off” control of small motors. Provide melting alloy overload protection for motors. Intended for industrial and commercial applications. Enclosed or open versions to suit most application environments. Can be easily installed. UL, CSA and CE approvals.
