9421LH3 - Square D - Part And Accessory

Overview

Product Specifications - 9421LH3 -Square D Part And Accessory

Standards

Product Description - 9421LH3 -Square D Part And Accessory

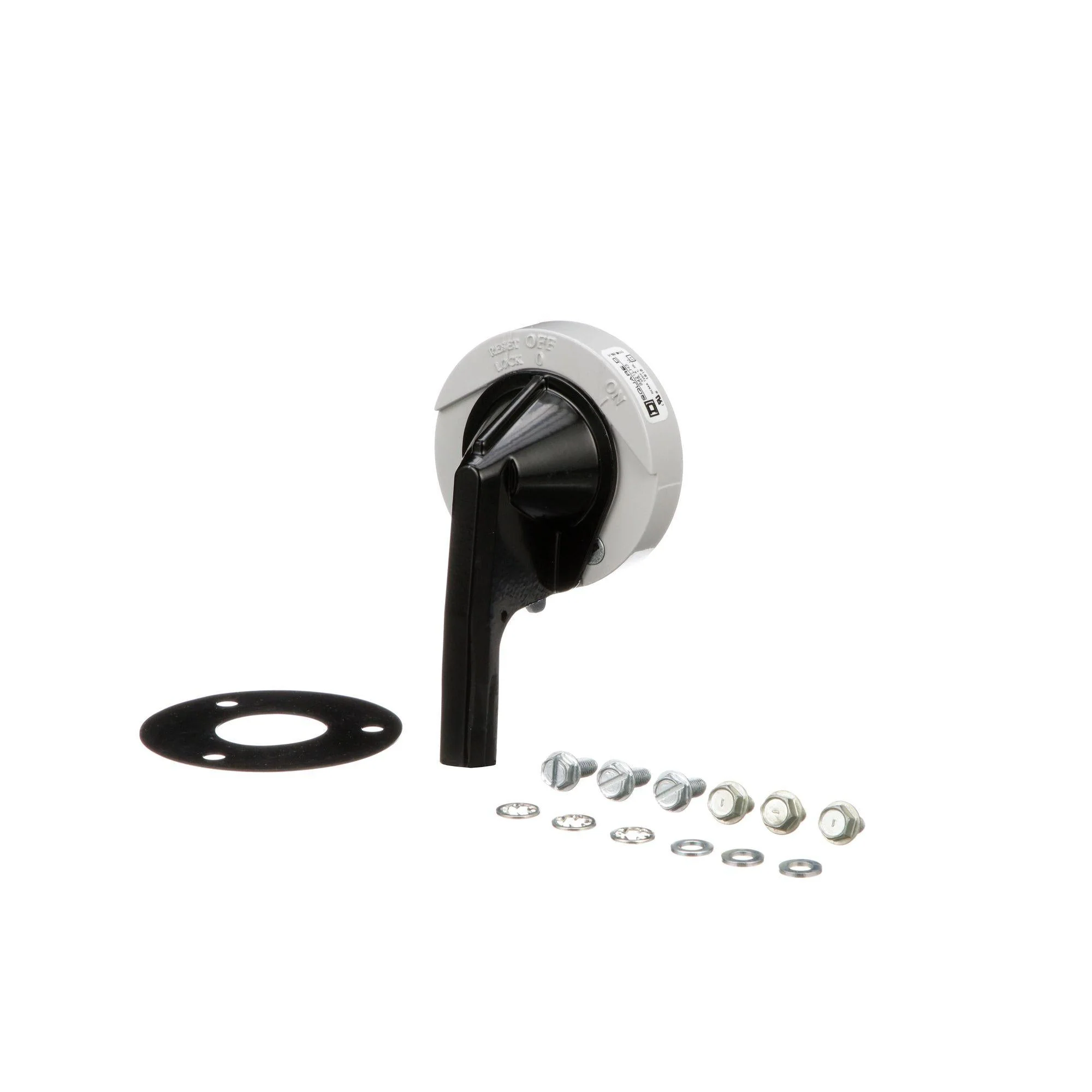

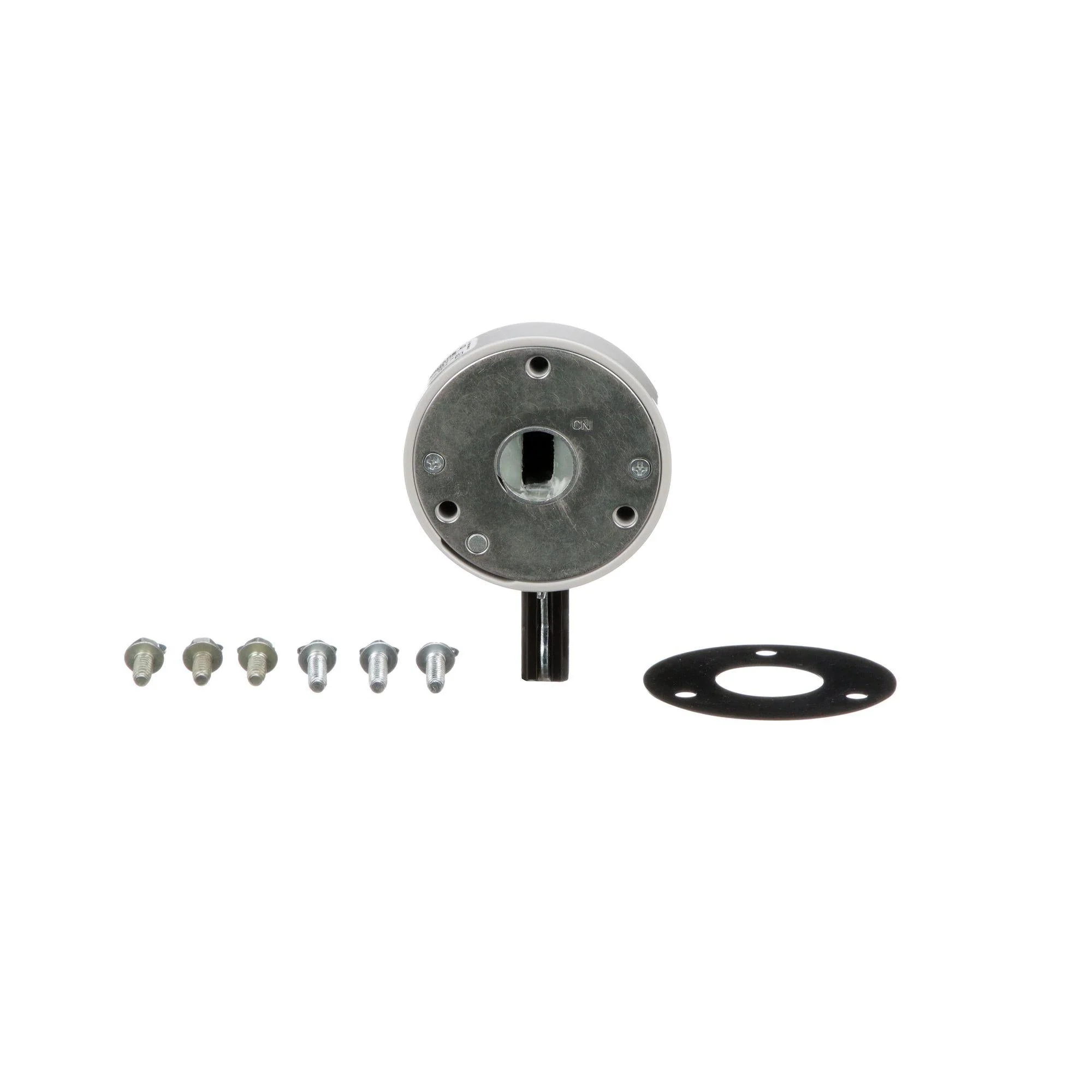

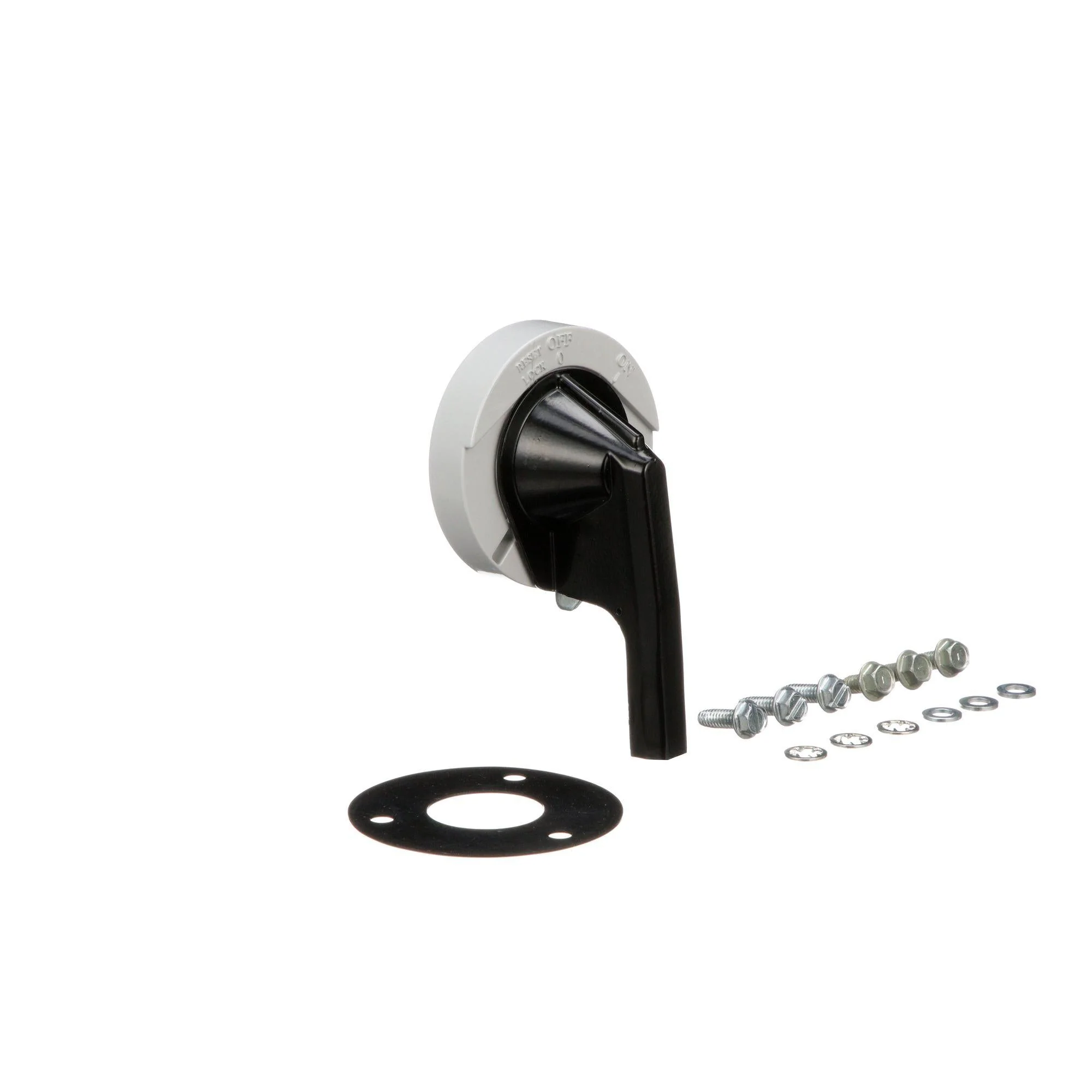

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly will work with the operating mechanism for a 2 or 3 pole PowerPact H, and PowerPact J, Compact NSF circuit breakers with a 125A frame size. This handle assembly will also work with the operating mechanism for a 2 or 3 pole PowerPact H, and PowerPact J circuit breakers with a 250A frame size. This handle assembly has a special 3 inch handle. This handle assembly is rated for NEMA Type 1, 3R and 12. This handle assembly is UL Component Recognized and CSA certified.
