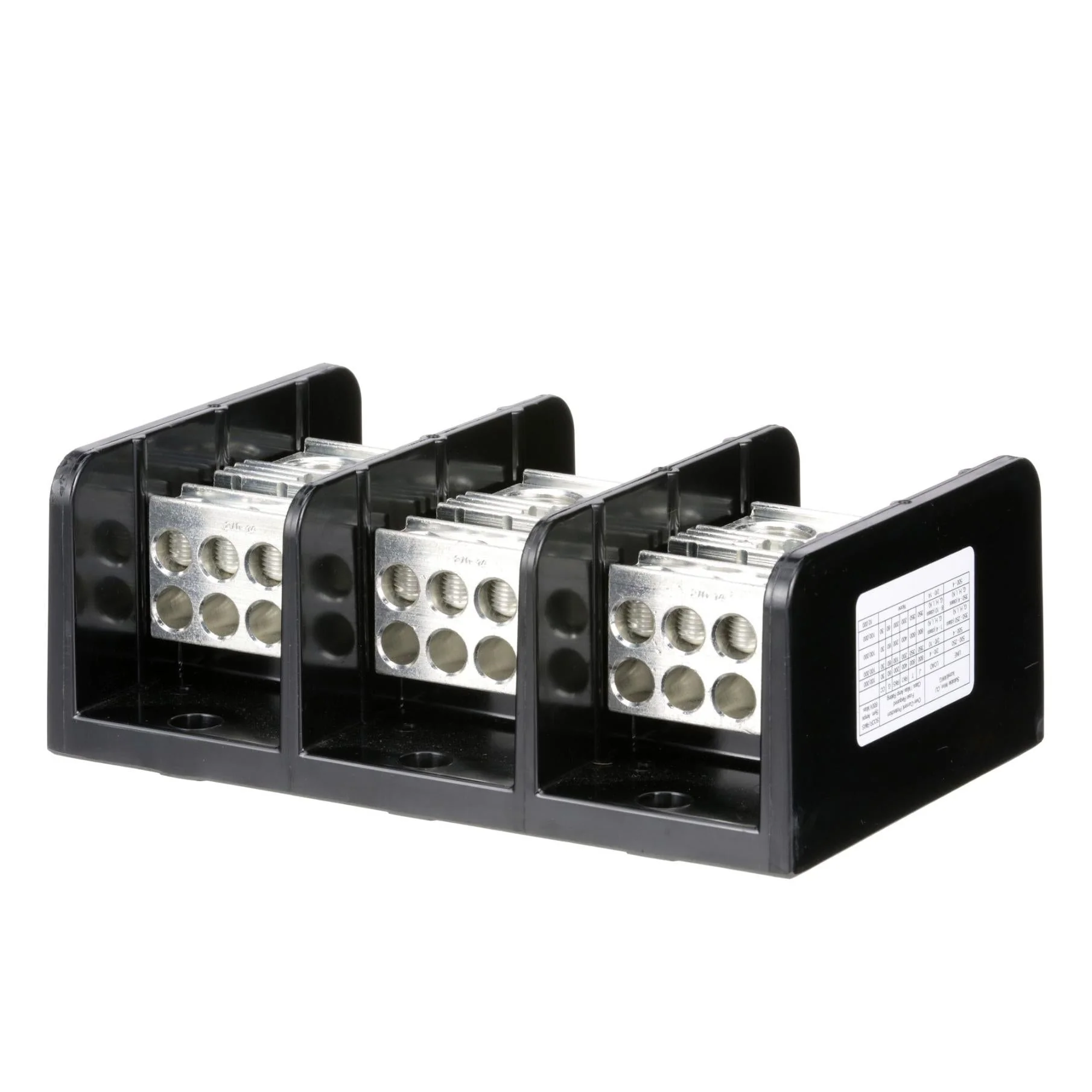

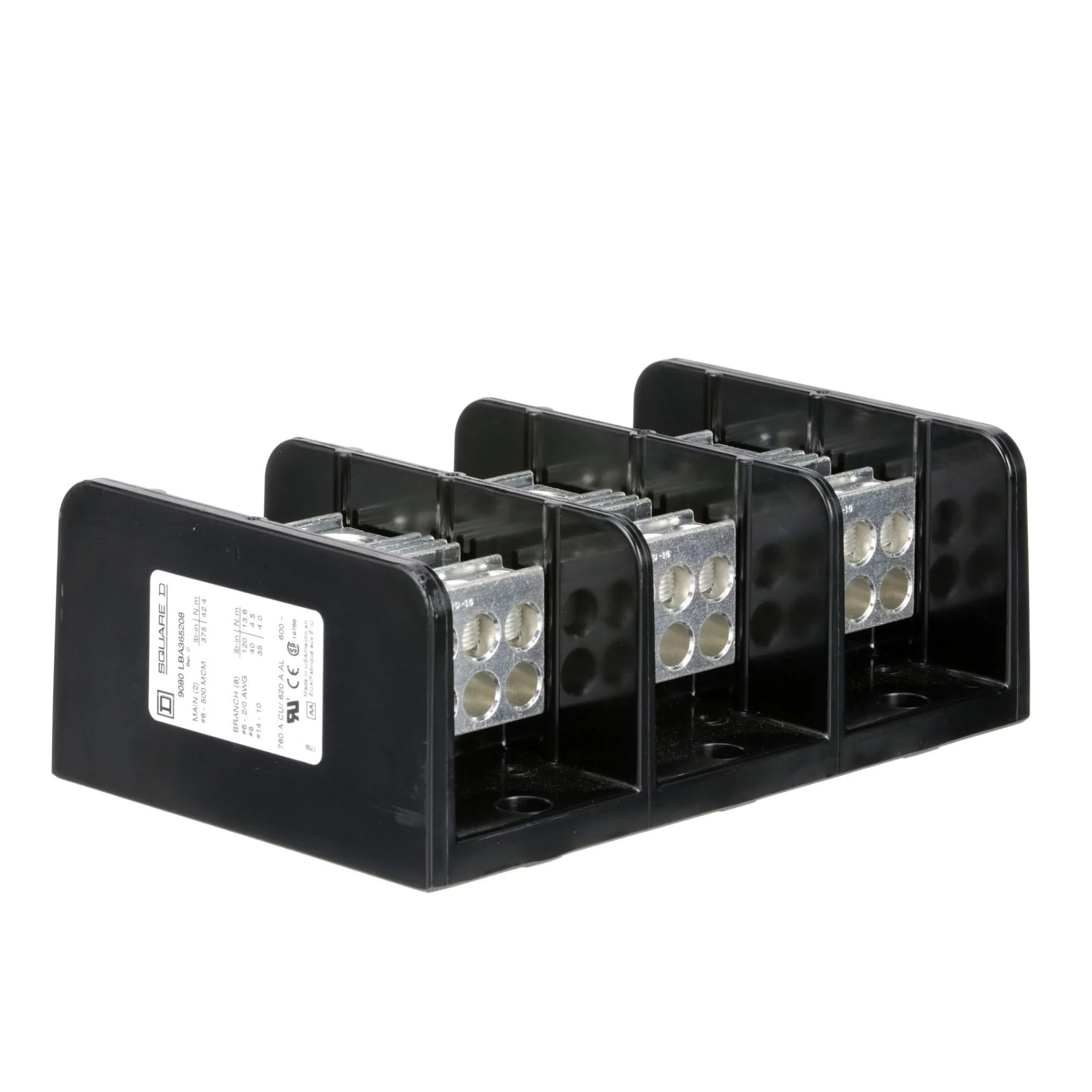

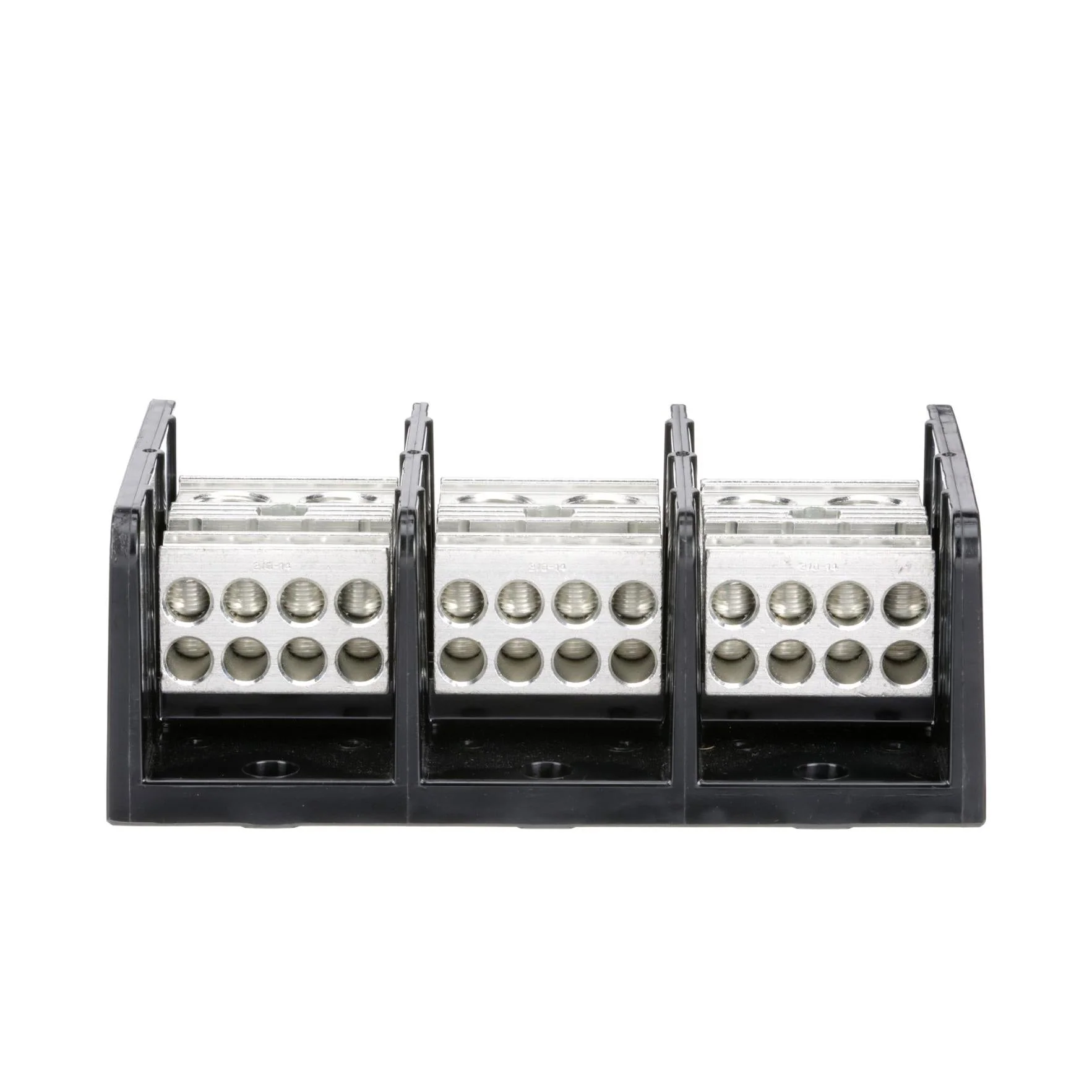

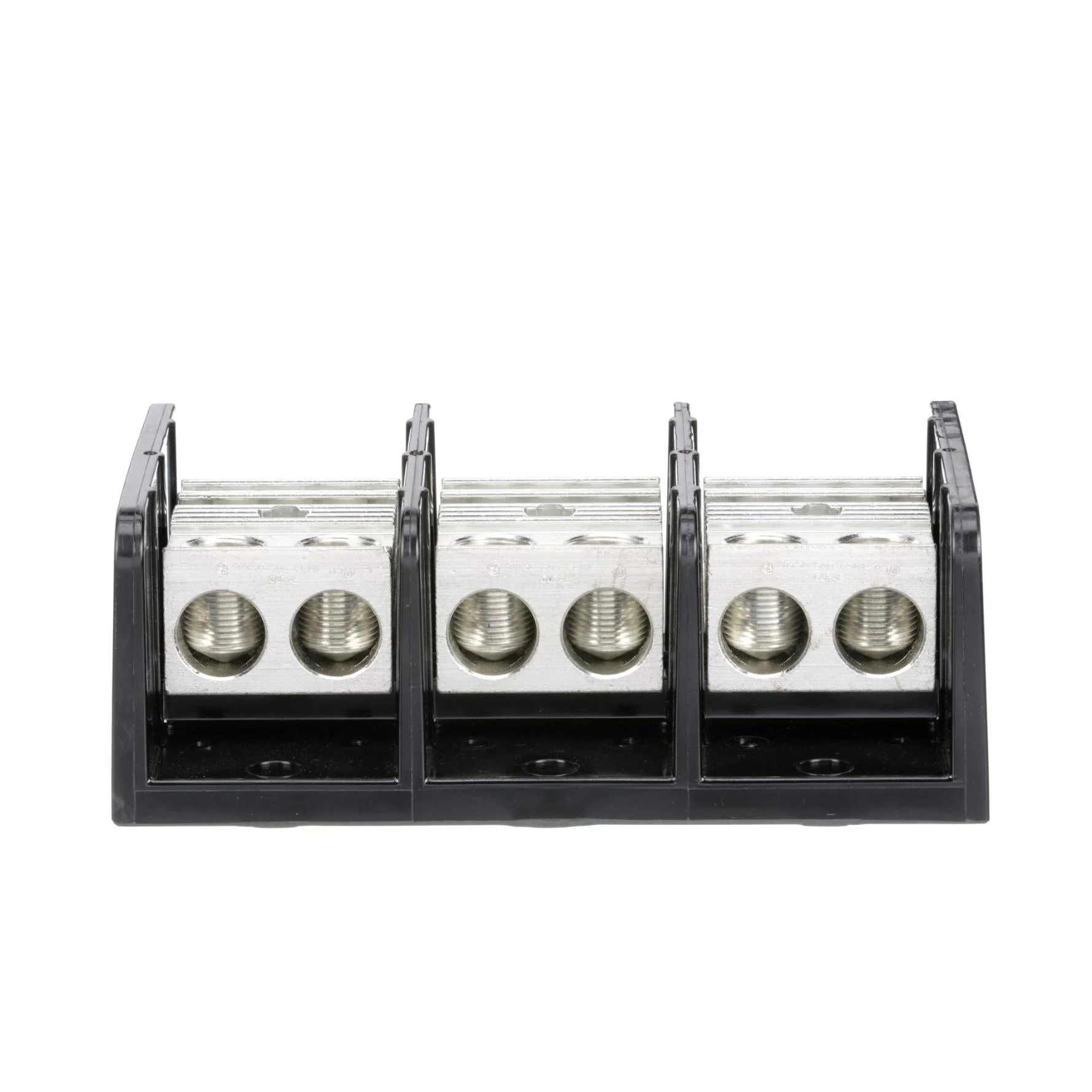

Product Specifications - 9080LBA365208 - Square D Power Distribution Block
-
Part Number:
9080LBA365208 -
Manufacturer:
-
Pole:
3 -
Volt:
600
-
Category:
Dimensions
-
Dimensions (HxWxD):
5.5 x 8.54 x 3.13 -
Weight:
3.66 lbs
Standards
Product Description - 9080LBA365208 - Square D Power Distribution Block
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
