Product Specifications - LV426843 - Square D Shunt Trip
-
Part Number:
LV426843 -
Manufacturer:
-
Family:
Powerpact -
Volt:
130
-
Category:
-
Type:
LV4
Standards

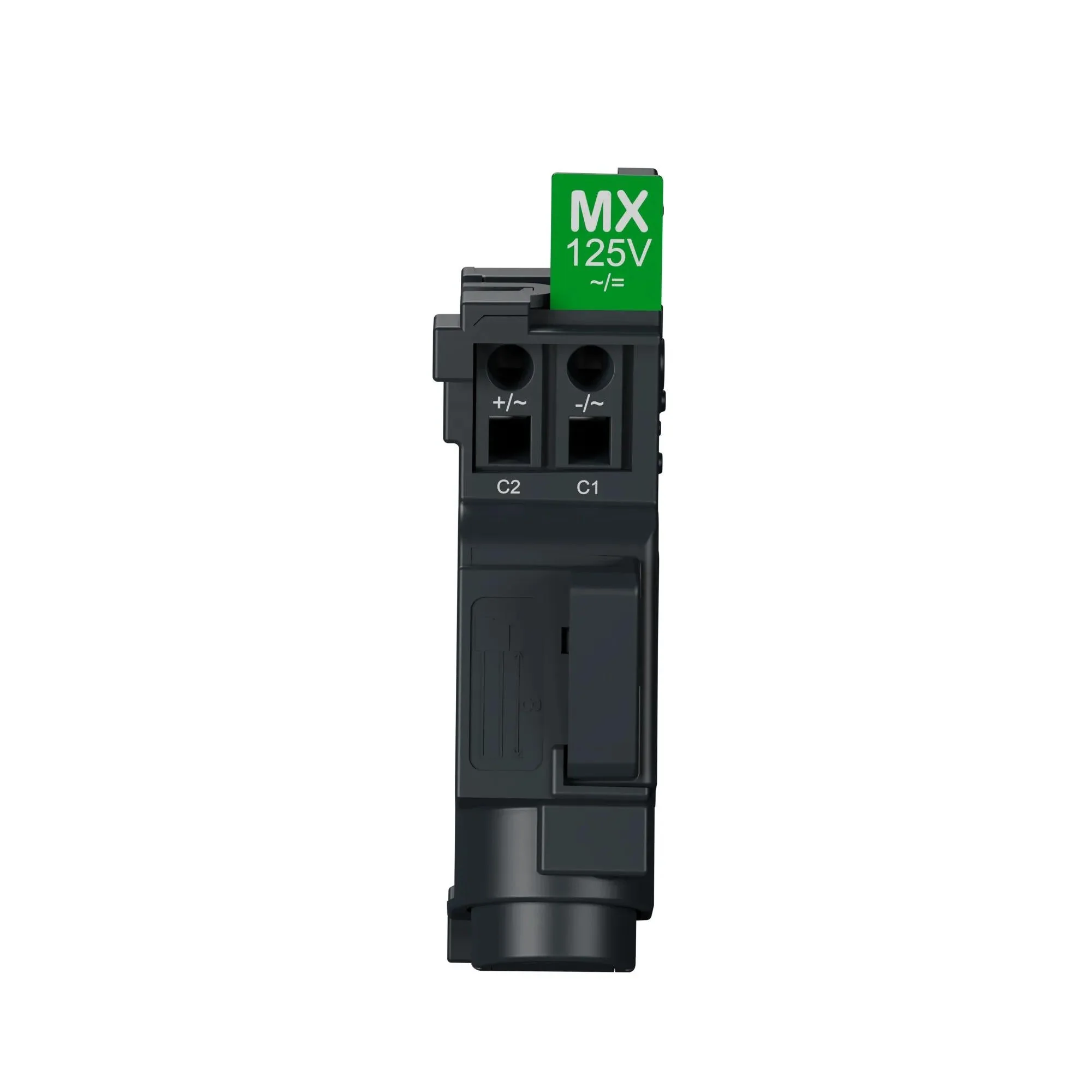

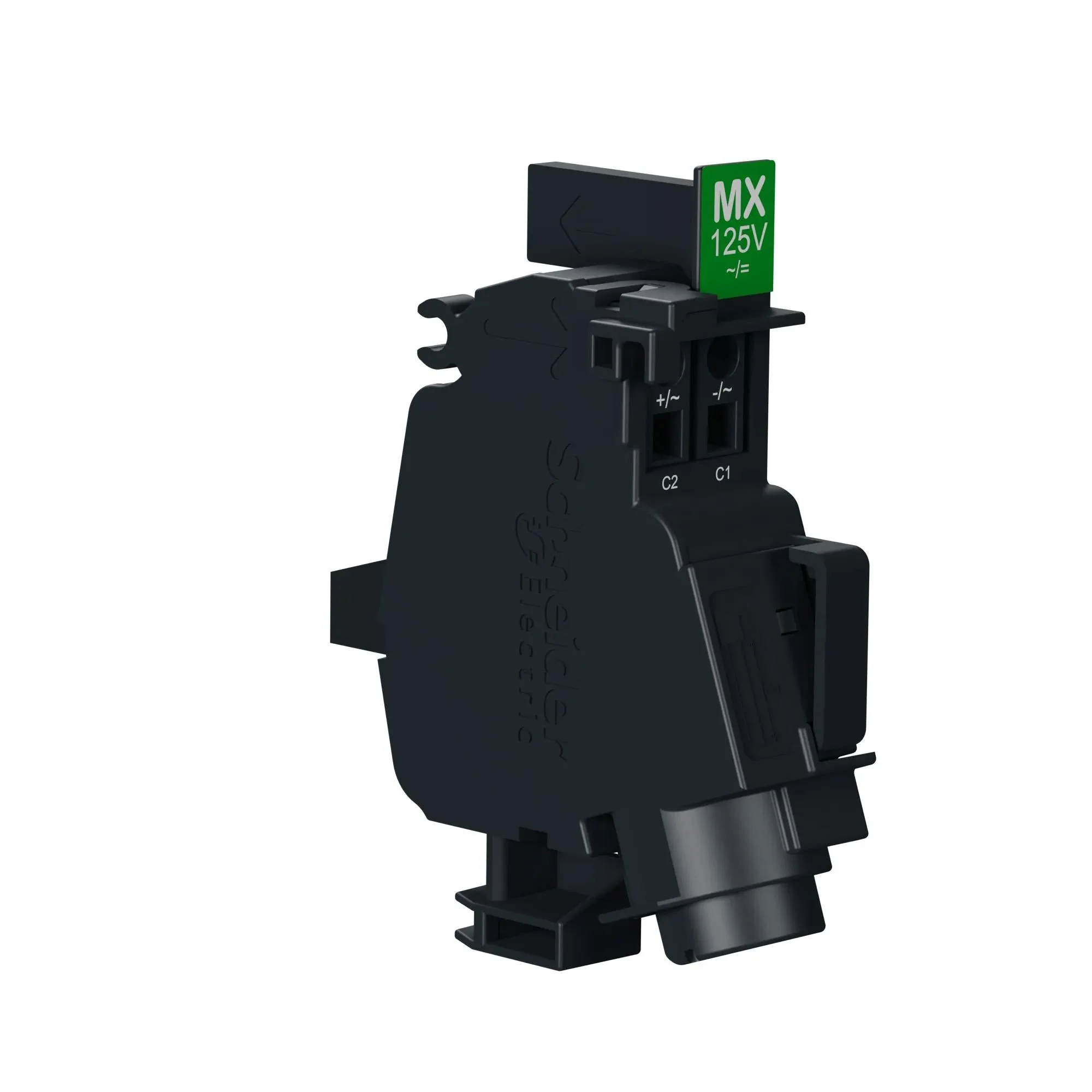

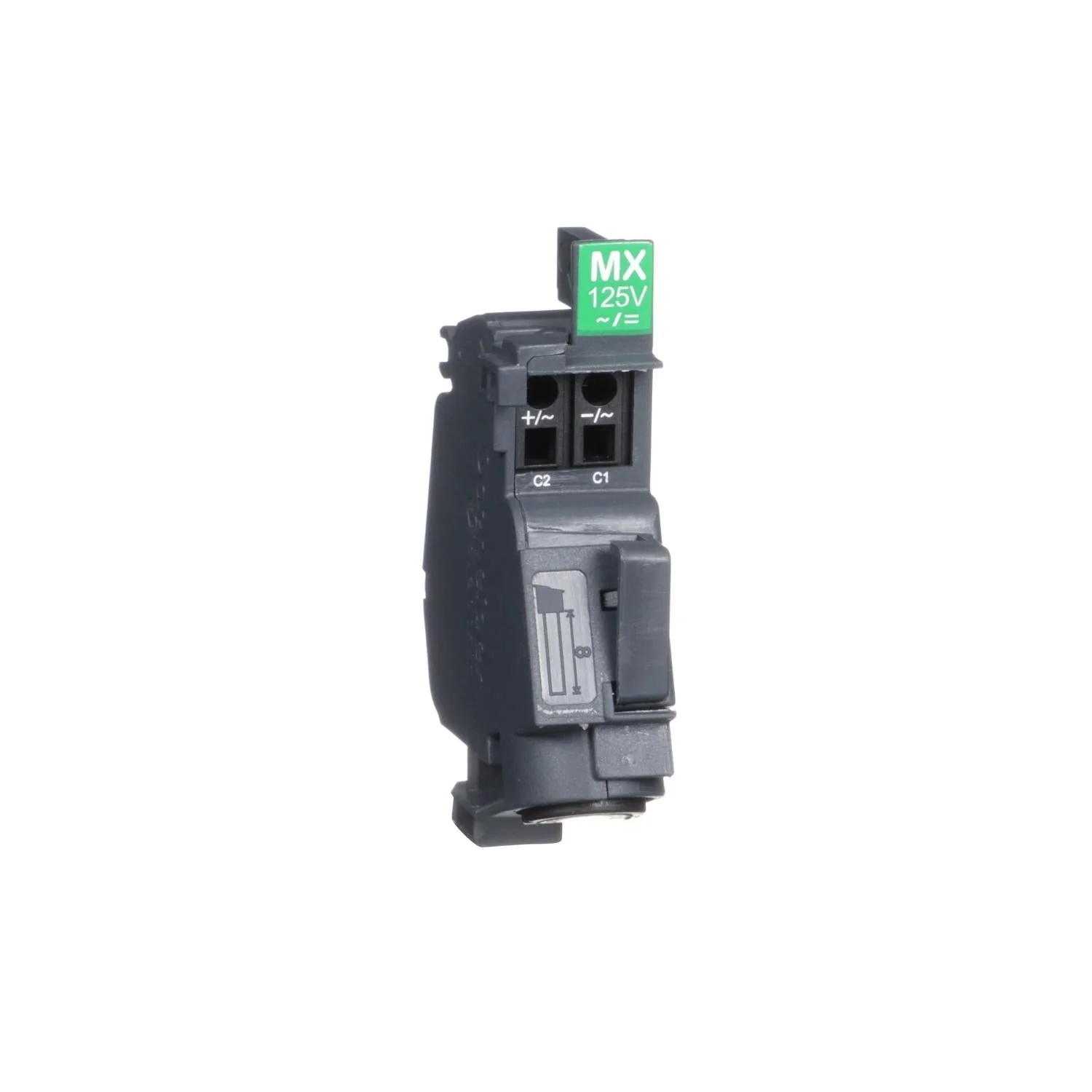

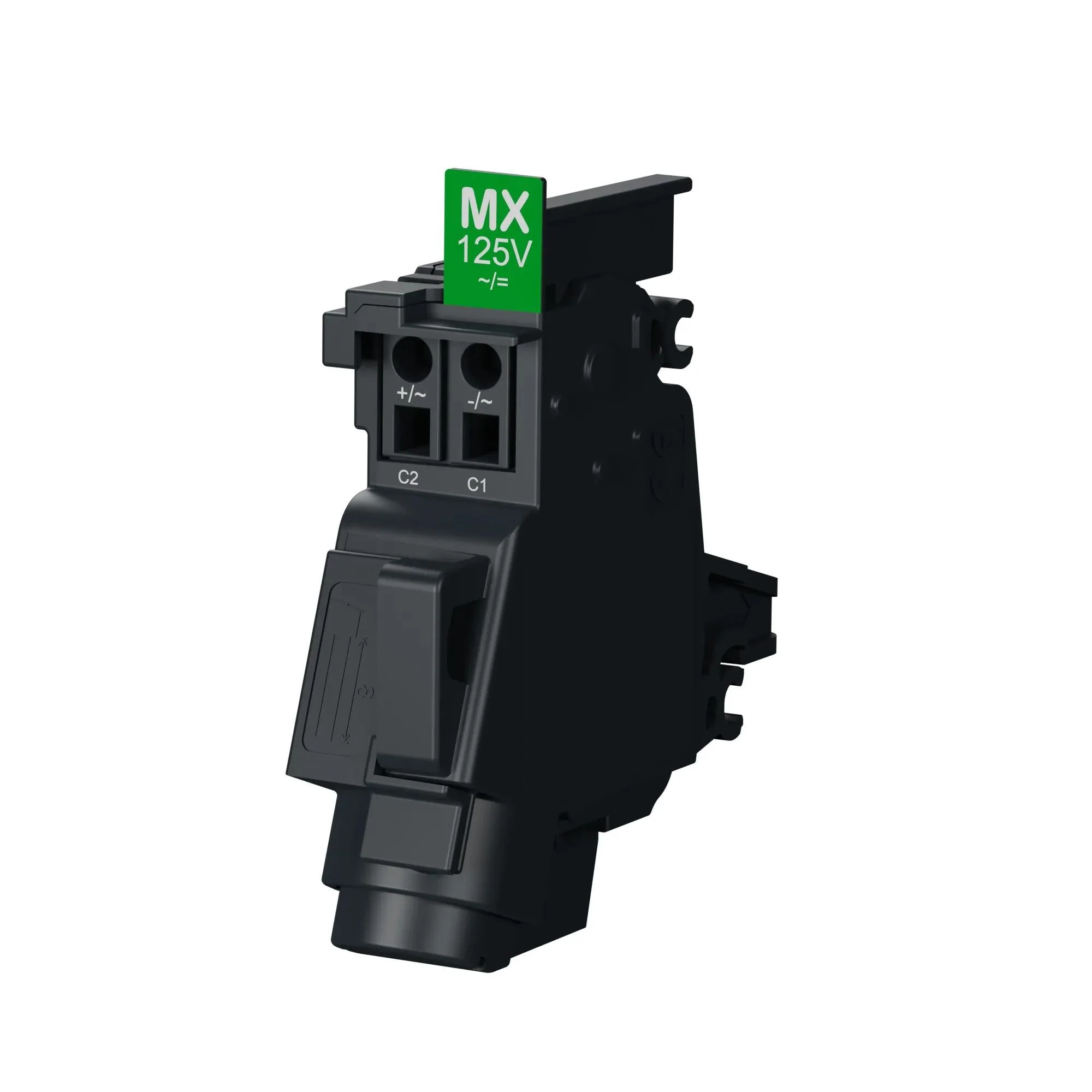

Product Description - LV426843 - Square D Shunt Trip
This standard MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 110/130 VAC 50/60Hz or 125VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
